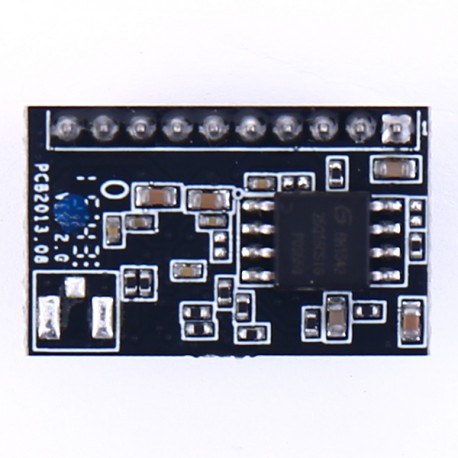

HF-LPT100

  • Product Code: UART to Wi-Fi [LPT100]
Buy Online

Overview of Characteristic

●  Support IEEE802.11b/g/n Wireless Standards

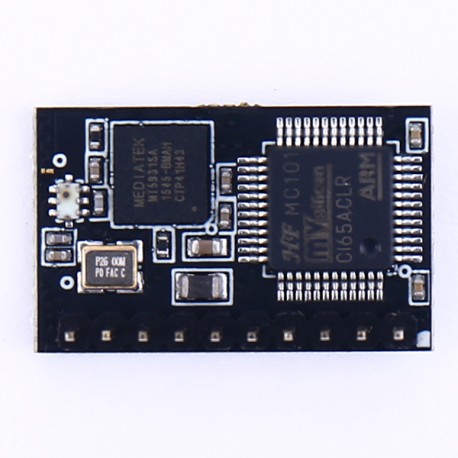

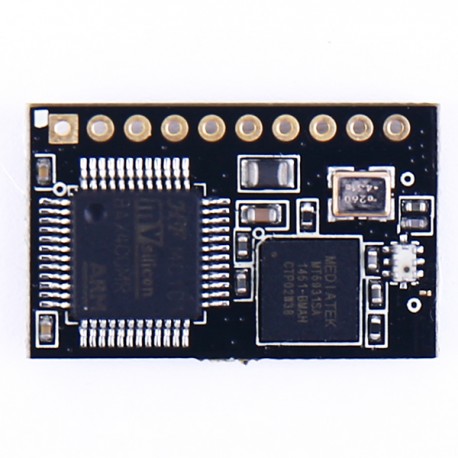

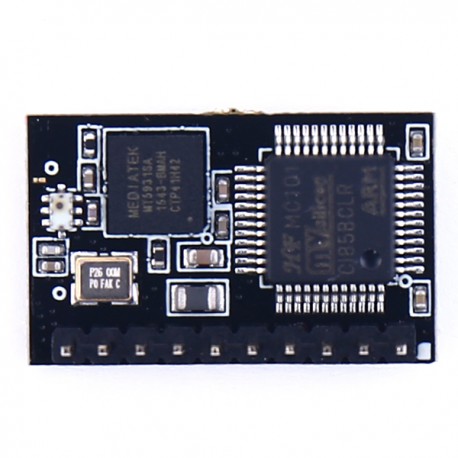

●  Based on High-Flying Cotex-M3 MCU (MC101) + MediaTek Wi-Fi MT5931SA

●  Highly Cost Effective With High-Flying MCU: MC101

●  Low-Power Applications with Excellent Power Save Scheme

●  Support UART/PWM/GPIO Data Communication Interface

●  Support Maximum 3 Channel PWM

●  Support Work As STA/AP/AP+STA Mode

●  Support Smart Link Function (APP provide)

●  Support Wireless and Remote Firmware Upgrade Function

●  Support WPS Function

●  Support Multi-TCP Link (Upto 5) Connection

●  Support External Antenna Option

●  Single +3.3V Power Supply

●  Smallest Size: 22mm x 13.5mm x6mm, 1x10mm 2mm DIP Package





 Class

Item

Parameters

Wireless Parameters

Certification

FCC/CE/RoSH

Wireless standard

802.11 b/g/n

Frequency range

2.412GHz-2.484GHz

Transmit Power

802.11b: +16 dBm (@11Mbps)

802.11g: +14 dBm (@54Mbps)

802.11n: +13 dBm (@HT20, MCS7)

ReceiverSensitivity

802.11b: -93 dBm (@11Mbps ,CCK)

802.11g: -85 dBm (@54Mbps, OFDM)

802.11n: -82 dBm (@HT20, MCS7)

Antenna Option

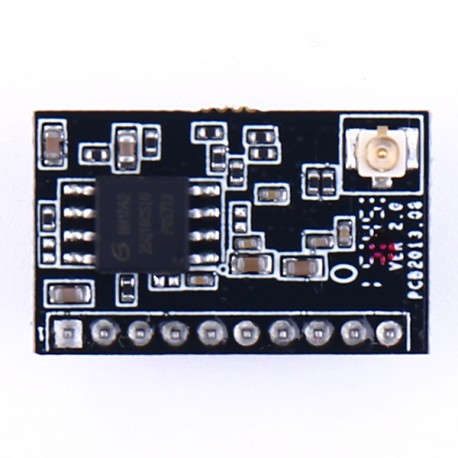

External:I-PEX Connector



Hardware

Parameters

Data Interface

UART

PWM

GPIO

Operating Voltage

2.8~3.6V

Operating Current

Peak [Continuous TX]: ~300mA
Normal [WiFi ON/OFF, DTIM=100ms]:
Average. ~12mA, Peak: 300mA

Operating Temp.

-40℃- 85℃

StorageTemp.

-45℃- 125℃

Dimensions and Size

22mm×13.5mm×6mm, 1x10 2mm DIP

Software Parameters

Network Type

STA /AP/STA+AP

Security Mechanisms

WEP/WPA-PSK/WPA2-PSK

Encryption

WEP64/WEP128/TKIP/AES

Update Firmware

Local Wireless, Remote

Customization

Web Page Upgrade
Support SDK for application develop

Serial command

AT+instruction set

Network Protocol

IPv4,TCP/UDP/FTP/HTTP

User Configuration

AT+instruction set. Android/ iOS
Smart Link APP tools



HF-LPT100
Base on customer detailed requirement, HF-LPT100 series modules provide different variants and physical type for detailed application.






Production Data 2013/Q1
Key Feature Low Power SDK Support SmartLink Config Small Size
Processor Cortex-M3 MTK
Basic Frequency 96MHz
Operating System FreeRTOS
Wi-Fi Standard 802.11bgn
Certification FCC/CE/RoSH
Temp. Range -40~+85
I-PEX Connector
Size (mm) 22x13.5x6
Package Type DIP10
Work Voltage 2.8~3.6V
Current @No data ~12mA
Current @Tx Peak ~300mA
Resource-Flash 2MB
Resource-RAM 128KB
Interface-UART 1
Interface-PWM 3
Interface-GPIO
Interface-A/D √ (2)
AP Mode √(Max 2 STA)
STA Mode
AP+STA Mode
WPS Function
Web Server
OTA Upgrade
Smart Configure SmartLink V7.X APP
Airkiss Configure
SDK Support
