Ethernet+Wi-Fi+serial
Ethernet+Wi-Fi+serial
Overview of Characteristic
- MIPS MCU with 4MB Flash and 8MB SRAM. Run on eCos
- Support Virtual COM, Virtual Path Connect to PLC for Remote Monitor
- Support TCP/IP/Telnet /Modbus TCP Protocol
- Support RS232/RS422/RS485 to Ethernet/Wi-Fi Conversion, Serial Speed Upto 230400 bps
- Support STA/AP/AP+STA Mode
- Support Router or Bridge Network Working Mode.
- Support 10/100M Ethernet Auto-Negotiation
- Support Easy Configuration Through a Web Interface or PC IOTService Tool
- Support Security Protocol Such As TLS/AES/DES3
- Support Web OTA Wirelss Upgrade
- Wide DC Input 5~36VDC
- Size: 95 x 65 x 25 mm (L x W x H)

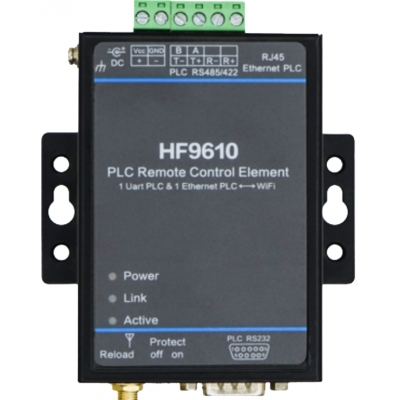

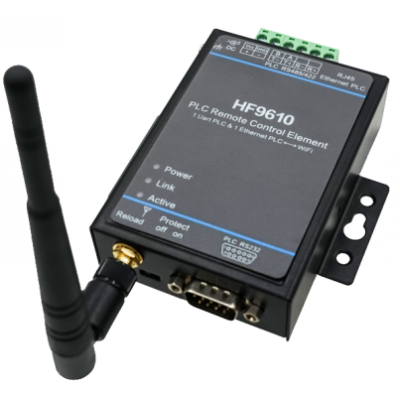

| Name | HF9610A >> | HF9610 >> | HF9610C >> |
|---|---|---|---|
| Image |
|
|
|
| Frequency Range | 2.412GHz-2.484GHz | 2.412GHz-2.484GHz | 2.412GHz-2.484GHz |
| Receiver Sensitivity | 802.11b: -89dBm 802.11g: -81dBm 802.11n: -71dBm | 802.11b: -89dBm 802.11g: -81dBm 802.11n: -71dBm | 802.11b: -89dBm 802.11g: -81dBm 802.11n: -71dBm |
| Collocation Method | Web CLI IOTService PC Software | ||
| Basic Frequency | 320MHz | 320MHz | 320MHz |
| Flash | 4MB | 4MB | 4MB |
| SDRAM | 8MB | 8MB | 8MB |
| Operating System | eCos | eCos | eCos |
| Interface Standard | RS232: DB9 RS485/RS422: 5.08mm connector Support one channel of RS232/RS422/RS485 | RS232: DB9 RS485/RS422: 5.08mm connector Support one channel of RS232/RS422/RS485 | RS232: DB9 RS485/RS422: 5.08mm connector Support one channel of RS232/RS422/RS485 |
| Protection | 8KV Isolation | 8KV Isolation | 8KV Isolation |
| Network Protocol | IP，TCP，UDP，DHCP，DNS，HTTP Server/Client，ARP， BOOTP， AutoIP， ICMP，Web socket， Telnet，uPNP， NTP，Modbus TCP | IP，TCP，UDP，DHCP，DNS，HTTP Server/Client，ARP， BOOTP， AutoIP， ICMP，Web socket， Telnet，uPNP， NTP，Modbus TCP | IP，TCP，UDP，DHCP，DNS，HTTP Server/Client，ARP， BOOTP， AutoIP， ICMP，Web socket， Telnet，uPNP， NTP，Modbus TCP |
| Security Protocol | TLS v1.2 AES 128Bit DES3 | TLS v1.2 AES 128Bit DES3 | TLS v1.2 AES 128Bit DES3 |
| Standard | 802.11 b/g/n | 802.11 b/g/n | 802.11 b/g/n |
| Network Mode | STA/AP/STA+AP | STA/AP/STA+AP | STA/AP/STA+AP |
| Transmit Power | 802.11b: +20dBm (Max.) 802.11g: +18dBm (Max.) 802.11n: +15dBm (Max.) | 802.11b: +20dBm (Max.) 802.11g: +18dBm (Max.) 802.11n: +15dBm (Max.) | 802.11b: +20dBm (Max.) 802.11g: +18dBm (Max.) 802.11n: +15dBm (Max.) |
| Antenna Interface | 3dBi Stick Antenna | 3dBi Stick Antenna | 3dBi Stick Antenna |
| Port Number | 1 RS232/RS485/RS422 | 1 WAN/LAN switchable | 1 WAN/LAN switchable |
| Data Bits | 8 | 8 | 8 |
| Stop Bit | 1,2 | 1,2 | 1,2 |
| Check Bit | None，Even，Odd | None，Even，Odd | None，Even，Odd |
| Baud Rate | TTL: 300 bps~230400bps | TTL: 300 bps~230400bps | TTL: 300 bps~230400bps |
| Flow Control | No Flow Control Hardware RTS/CTS、DSR/DTR Software Xon/ Xoff flow control | No Flow Control Hardware RTS/CTS、DSR/DTR Software Xon/ Xoff flow control | No Flow Control Hardware RTS/CTS、DSR/DTR Software Xon/ Xoff flow control |
| Size | 95mm x 65mm x 25mm | 95mm x 65mm x 25mm | 71.2mm x 96mm x 63mm |
| Input Voltage | 5～36VDC | 5～36VDC | 5～36VDC |
| Working Current | ~200mA | ~200mA | ~200mA |
| Power | <700mW | <700mW | <700mW |
| Rate | 10/100M | 10/100M | |
| Warranty | 1 year | 1 year | |
| Accessory | 1* Power Adapter 1* Serial Cable 1* Ethernet Cable 1* WiFi Antenna | 1* Power Adapter 1* Serial Cable 1* Ethernet Cable 1* WiFi Antenna | |
| Work Temp. | -25 ~ 85°C | -25 ~ 85°C | -25 ~ 85°C |
| Storage Temp. | -45 ~ 105°C, 5 ~ 95% RH（no condensation） | -45 ~ 105°C, 5 ~ 95% RH（no condensation） | -45 ~ 105°C, 5 ~ 95% RH（no condensation） |
