Low Power Tiny Module

Low Power Tiny Module

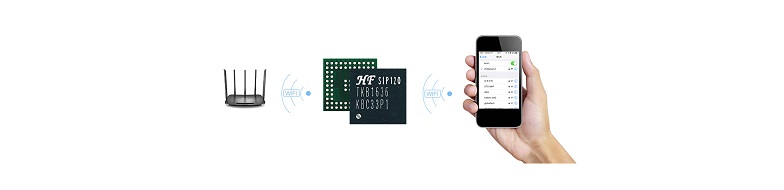

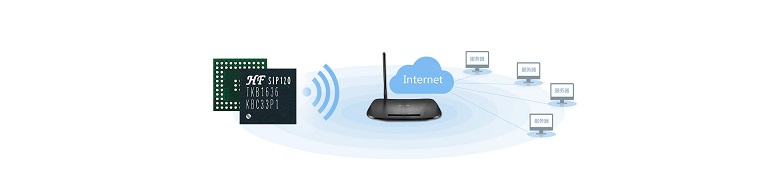

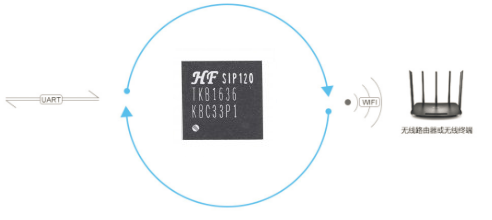

Low power tiny Wi-Fi module will provide a wireless interface to any equipment with a UART interface for data transfer.  This kind of module provides different variants and physical type for detailed application, like connector and ANT option.

Characteristic:

  • Support IEEE802.11b/g/n Wireless Standards

  • Ultra-Low-Power for Battery Applications with Excellent Power Save Scheme

  • Based on Self-developed High Cost Effective MCU

  • Support UART/GPIO etc. Data Communication Interface

  • Support Smart Link Function (APP program provided)

  • Support Wireless and Remote Firmware Upgrade Function

  • SDK Provided and Support Secondary Development² Smallest Size:22mm × 13.5mm × 6mm(DIP10), 22mm × 13.5mm × 3mm(SMT17)

  • FCC/CE Certificated


  • Sizing Table

    Name HF-LPT130  >> HF-LPT230  >> HF-LPT120  >> HF-LPT120G  >> HF- LPT220  >> HF-LPT100  >> HF-LPT100F  >> HF-LPT200  >>
    Image HF-LPT130 HF-LPT230 HF-LPT120 HF-LPT120G HF- LPT220 HF-LPT100 HF-LPT100F HF-LPT200
    Production Data 2017/Q4 2017/Q4 2015/Q4 2016/Q2 2015/Q4 2013/Q1 2015/Q2(New) 2013/Q4
    Key Feature Low Power SDK Support SmartLink Config Tiny Size Lowest Price Low Power SDK Support SmartLink Config Lowest Price Low Power SDK Support SmartLink Config Small Size Lowest Price Low Power SDK Support SmartLink Config Small Size Strong Signal Strength Lowest Price Low Power SDK Support SmartLink Config Small SMT Size Lowest Price Low Power SDK Support SmartLink Config Small Size Low Power SDK Support SmartLink Config Small Size Strong Signal Strength Low Power SDK Support SmartLink Config Small SMT Size
    Processor Cortex-M4 SOC Cortex-M4 SOC ARM7 SOC ARM7 SOC ARM7 SOC Cortex-M3 MTK Cortex-M3 MTK Cortex-M3 MTK
    Basic Frequency 160MHz 160MHz 96MHz 96MHz 96MHz 96MHz 96MHz 96MHz
    Operating System mbed mbed Contiki Contiki Contiki FreeRTOS FreeRTOS FreeRTOS
    Wi-Fi Standard 802.11bgn 802.11bgn 802.11bgn 802.11bgn 802.11bgn 802.11bgn 802.11bgn 802.11bgn
    Certification CE/FCC/SRRC/RoHS CE/FCC/SRRC/RoHS CE/FCC FCC/CE CE/FCC CE/FCC/SRRC CE/FCC/SRRC CE/FCC
    Temp. Range -25~+70 -25~+70 -20~+85 -20~+85 -20~+85 -40~+85 -40~+85 -40~+85
    Internal Antenna
    I-PEX Connector RF Pad RF Pad
    Size (mm) 22×14.3×8 22×13.5×3 22x13.5x6 24mm x 19.5mm x 3mm 22x13.5x3 22x13.5x6 22x13.5x6 22x13.5x3
    Package Type DIP10 SMT18 DIP10 DIP18 SMT17 DIP10 DIP10 SMT17
    Work Voltage 2.9~3.6V 2.9~3.6V 2.95~3.6V 2.95~3.6V 2.95~3.6V 2.8~3.6V 2.8~3.6V 2.8~3.6V
    Current @No data ~25mA ~25mA ~30mA ~30mA ~30mA ~12mA ~12mA ~12mA
    Current @Tx Peak ~260mA ~260mA ~280mA ~280mA ~280mA ~300mA ~300mA ~300mA
    Resource-Flash 1MB/4MB 1MB/4MB 2MB 2MB 2MB 2MB 2MB 1MB/2MB
    Resource-RAM 352KB/448KB 352KB/448KB 192KB 192KB 192KB 128KB 128KB 128KB
    Interface-UART 2 2 2 2 2 1 1 1
    Interface-PWM 5 5 1 3 5 4
    AP Mode √(Max 4 STA) √(Max 4 STA) √(Max 4 STA) √(Max 2 STA) √(Max 2 STA) √(Max 2 STA)
    STA Mode
    AP+STA Mode
    OTA Upgrade
    Smart Configure SmartLink V7.X APP
    Airkiss Configure
    SDK Support
    Interface-SPI 1 1
    Interface-GPIO √ (5) √ (5) √ (8)
    Interface-A/D √ (2) √ (2) √ (4)
    Web Server TBD TBD TBD √(2MB Flash)
    WPS Function
