Wi-Fi Serial Module
Wi-Fi Serial Module
Wireless communication technology especially the rise of Wi-Fi technology provides new opportunities to industrial communication application .The industrial Wi-Fi serial server products developed by the IOTWORKSHOP are designed for the specific needs of industrial users.By IEEE802.11 standard wireless technology.
Characteristic:
- MIPS MCU with 4MB Flash and 8MB SRAM. Run on eCos
- Support TCP/IP/Telnet /Modbus TCPProtocol
- Support RS232/RS422/RS485 to Ethernet/Wi-Fi Conversion, Serial Speed Upto 460800 bps
- Support STA/AP/AP+STA Mode
- Support Router or Bridge Network Working Mode.
- Support 10/100M Ethernet Auto-Negotiation
- Support Easy ConfigurationThrough a Web Interface or PC IOTManager Tool
- Support Security ProtocolSuch AsSSL/AES/DES3
- Support Web OTA Wirelss Upgrade
Name | Wport-W30 >> | Wport-W70 >> | Wport-W20 >> | Wport-W10A >> | Wport-W10 >> | Wport-W20A >> | Wport-W50 >> |
---|---|---|---|---|---|---|---|

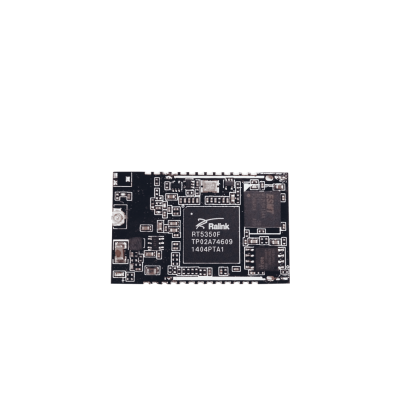

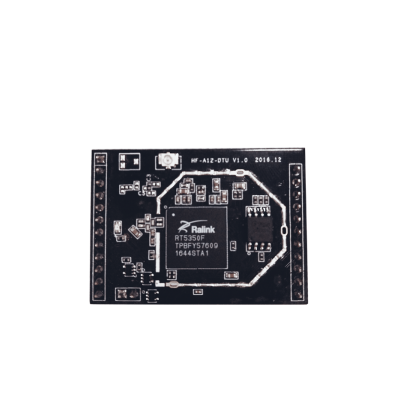

Image | |||||||
Operating Temp. | -45~85℃ | -45~85℃ | -45~85℃ | -45~85℃ | -45~85℃ | -45~85℃ | -45~85℃ |
StorageTemp. | -40℃- 125℃ | -40℃- 125℃ | -50~90℃,5~95%RH | -50~90℃,5~95%RH | -50~90℃,5~95%RH | -50~90℃,5~95%RH | -40℃- 125℃ |
Transmit Power | 802.11b: +17dBm ± 1.5dBm (@11Mbps) 802.11g: +15dBm ± 1.5dBm (@54Mbps) 802.11n: +14dBm ± 1.5dBm (@HT20, MCS7) | ||||||
Receiver Sensitivity | 802.11b: -96dBm (@1Mbps) 802.11b: -89dBm (@11Mbps) 802.11g: -91dBm (@6Mbps) 802.11g: -76dBm (@54Mbps) 802.11n: -91dBm (@MCS0) 802.11n: -73dBm (@MCS7) | 802.11b: -89 dBm (@11Mbps, CCK) | 802.11b: -89 dBm (@11Mbps, CCK) | 802.11b: -89 dBm (@11Mbps, CCK) | 802.11b: -89 dBm (@11Mbps, CCK) | 802.11b: -95 dBm (@1Mbps ,CCK) 802.11b: -85 dBm (@11Mbps ,CCK) 802.11g: -72 dBm (@54Mbps, OFDM) 802.11n: -70dBm (@HT20, MCS7) 802.11n: -67dBm (@HT40, MCS7) -90dBm (@6Mbps ,OFDM) -73dBm (@54Mbps ,OFDM) -70 dBm (HT20,MCS7) -67 dBm (HT40,MCS7) | |
Frequency Range | 2.412GHz-2.484GHz(CH1,13) 5.17GHz-5.25GHz(CH36,40,44,48) U-NII-1 5.725GHz-5.835GHz(CH149,153,157,161,165) U-NII-3 | ||||||
Size | 22mm x 13.5mm x 3mm | 22mm x 13.5mm x 3mm | 45mm x 32mm x 8mm | 45mm x 32mm x 8mm | 45mm x 32mm x 8mm | 45mm x 32mm x 8mm | 23.1mm x 32.8mm x 3.5mm |
Wireless Standard | BLE5.0 | ||||||
Frequency Range | 2.402GHz-2.480GHz | ||||||
Receiver Sensitivity | -97 dBm | ||||||
Network Protocol | IP,TCP,UDP,DHCP,DNS,HTTP Server/Client,ARP, BOOTP, AutoIP, ICMP,Web socket, Telnet, uPNP, NTP, Modbus TCP | IP,TCP,UDP,DHCP,DNS,HTTP Server/Client,ARP, BOOTP, AutoIP, ICMP,Web socket, Telnet, uPNP, NTP, Modbus TCP | IP,TCP,UDP,DHCP,DNS,HTTP Server/Client,ARP, BOOTP, AutoIP, ICMP,Web socket, Telnet, FTP,TFTP, uPNP, NTP, SNMP,Modbus TCP | IP,TCP,UDP,DHCP,DNS,HTTP Server/Client,ARP, BOOTP, AutoIP, ICMP,Web socket, Telnet, FTP,TFTP, uPNP, NTP, SNMP,Modbus TCP | IP,TCP,UDP,DHCP,DNS,HTTP Server/Client,ARP, BOOTP, AutoIP, ICMP,Web socket, Telnet, FTP,TFTP, uPNP, NTP, SNMP,Modbus TCP | IP,TCP,UDP,DHCP,DNS,HTTP Server/Client,ARP, BOOTP, AutoIP, ICMP,Web socket, Telnet, FTP,TFTP, uPNP, NTP, SNMP,Modbus TCP | IP,TCP,UDP,DHCP,DNS,HTTP Server/Client,ARP, BOOTP, AutoIP, ICMP,Web socket, Telnet, uPNP, NTP, Modbus TCP |
Standard | 802.11 b/g/n | 802.11 b/g/n | 802.11 b/g/n | 802.11 b/g/n | 802.11 b/g/n | 802.11 b/g/n | 802.11 a/b/g/n |
Network Mode | STA/AP/STA+AP | STA/AP/STA+AP | STA/AP/STA+AP | STA/AP/STA+AP | STA/AP/STA+AP | STA/AP/STA+AP | STA/AP/STA+AP |
Wi-Fi Security | WEP64/WEP128/TKIP/ AES | WEP64/WEP128/TKIP/ AES | WEP64/WEP128/TKIP/ AES | WEP64/WEP128/TKIP/ AES | WEP64/WEP128/TKIP/ AES | WEP64/WEP128/TKIP/ AES | WEP/WPAPSK/WPA2PSK |
Data Bits | 7,8 | 7,8 | 5,6,7,8 | 5,6,7,8 | 5,6,7,8 | 5,6,7,8 | 7,8 |
Stop Bit | 1,2 | 1,2 | 1,2 | 1,2 | 1,2 | 1,2 | 1,2 |
Check Bit | None,Even,Odd | None,Even,Odd | None,Even,Odd,Space,Mark | None,Even,Odd,Space,Mark | None,Even,Odd,Space,Mark | None,Even,Odd,Space,Mark | None,Even,Odd |
Baud Rate | TTL: 300 bps~230400bps | TTL: 300 bps~230400bps | TTL: 600 bps~230400bps | TTL: 600 bps~230400bps | TTL: 600 bps~230400bps | TTL: 600 bps~230400bps | TTL: 300 bps~230400bps |
Flow Control | No Flow control Software Xon/ Xoffflow control | No Flow control Software Xon/ Xoffflow control | No Flow control Hardware RTS/CTS、DSR/DTR Software Xon/ Xoffflow control | No Flow control Hardware RTS/CTS、DSR/DTR Software Xon/ Xoffflow control | No Flow control Hardware RTS/CTS、DSR/DTR Software Xon/ Xoffflow control | No Flow control Hardware RTS/CTS、DSR/DTR Software Xon/ Xoffflow control | No Flow control Software Xon/ Xoffflow control |
Configuration | Web CLI XML import Telnet IOTManagerPC Software | Web CLI XML import Telnet IOTManagerPC Software | Web CLI XML import Telnet IOTManagerPC Software | Web CLI XML import Telnet IOTManagerPC Software | Web CLI XML import Telnet IOTManagerPC Software | Web CLI XML import Telnet IOTManagerPC Software | Web CLI XML import Telnet IOTManagerPC Software |
Input Voltage | 2.9~4.2V | 2.9~4.2V | 3.3VDC | 3.3VDC | 3.3VDC | 3.3VDC | 2.9~4.2V |
Working Current | Peak (continuous transmission):260ma Average (STA, networking standby):18ma (dtim=1), 14mA (dtim=3) Average (STA, 1kb/s):24ma Average (AP):80ma Sleep (reset low): 60ua | Peak (1ms in 100ms) : <350mA Average (STA, connected standby) : 40mA Average (STA, 1KB/s) : 60mA Average (AP) : 70mA Standby mode: 310uA (Reset pin pull down) | ~200mA | ~200mA | ~200mA | ~200mA | Peak (continuous transmission): 345mA Average (STA, networked standby): 44mA Standby: 1.23mA (Reset pulled low) |
SDRAM | 8MB | 8MB | 8MB | 8MB | |||
Virtual Serial | Windows XP/Vista/7/8/10(32bit\64bit)、Win Server 2003/2008/2012 | Windows XP/Vista/7/8/10(32bit\64bit)、Win Server 2003/2008/2012 | Windows XP/Vista/7/8/10(32bit\64bit)、Win Server 2003/2008/2012 | Windows XP/Vista/7/8/10(32bit\64bit)、Win Server 2003/2008/2012 | |||
Power | <500mW | <500mW | <500mW | <500mW | |||
Ethernet | |||||||
Accessory | |||||||
Transmit Power | 802.11b: +15±1.5dBm(@11Mbps) 802.11g: +13±1.5dBm(@54Mbps) 802.11n: +13±1.5dBm(@HT20, MCS7) 15±1.5dBm (OFDM 6Mbps) 13±1.5dBm (OFDM 54Mbps) 12±1.5dBm (HT20 MCS7) 12±1.5dBm (HT40 MCS7) | ||||||
Processor | MIPS | MIPS | MIPS | MIPS | MIPS | MIPS | MIPS |
Basic Frequency | 160MHz | 160MHz | 380MHz | 380MHz | 380MHz | 380MHz | 160MHz |
Operating System | mbed | mbed | eCos | eCos | eCos | eCos | Andes Core |
Resource-Flash | 4MB | 4MB | 4MB | 4MB | 2MB | ||
Interface-Ethernet | |||||||
Flash/SDRAM | 2MB/352KB | 8MB/352KB | 2MB/192KB | ||||
Security Protocol | TLS v1.2 AES 128Bit DES3 | TLS v1.2 AES 128Bit DES3 | SSL v3 AES 128Bit DES3 | SSL v3 AES 128Bit DES3 | SSL v3 AES 128Bit DES3 | SSL v3 AES 128Bit DES3 | TLS v1.2 AES 128Bit DES3 |
