4G+Ethernet+Wi-Fi
4G+Ethernet+Wi-Fi
Overview of Characteristic
- MIPS MCU with 16MB Flash and 64MB SRAM. Run with Linux OpenWrt
- Support Virtual COM, Virtual Network
- Support VPN, port mapping
- Support 4 Channel 10/100M Ethernet Auto-Negotiation
- Support 802.11bgn Wi-Fi, Wi-Fi Works as AP/STA/AP+STA
- Support Easy Configuration Through a Web Interface or PC IOTService Tool
- Support Web OTA Wirelss Upgrade
- HF9606 Support 4G/3G/GPRS, FDD-LTE, TDD-LTE, WCDMA, TD-SCDMA, CDMA2000, CDMA 1X/EVDO, GSM900/1800
- Wide DC Input 5~36VDC
- Size: 108x30x120mm
| Name | ★HF9606 >> |
|---|---|

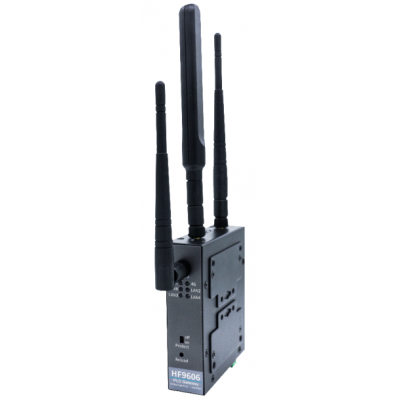

| Image |
|
| Frequency Range | 2.412GHz-2.484GHz |
| Receiver Sensitivity | 802.11b: -89dBm 802.11g: -81dBm 802.11n: -71dBm |
| Basic Frequency | 580MHz |
| Flash | 16MB |
| SDRAM | 64MB |
| Operating System | Linux OpenWrt |
| Interface Standard | 10/100M Base-T 自动协商 |
| Protection | 8KV Isolation |
| Network Protocol | IP，TCP，UDP，DHCP，DNS，HTTP Server/Client，ARP， BOOTP， AutoIP， ICMP，Web socket， Telnet，uPNP， NTP |
| Security Protocol | TLS v1.2 AES 128Bit DES3 |
| Standard | 802.11 b/g/n |
| Network Mode | STA/AP/STA+AP |
| Transmit Power | 802.11b: +20dBm (Max.) 802.11g: +18dBm (Max.) 802.11n: +15dBm (Max.) |
| Antenna Interface | 3dBi Stick Antenna |
| Port Number | 4 x RJ45 1个WAN/LAN 3个LAN |
| Configuration | Web Cli XML Telnet IOTService IOTBridge |
| Size | 108mmx30mmx120mm |
| Input Voltage | 9～36VDC |
| Working Current | ~300mA |
| Warranty | 1 year |
| Accessory | 1* Power Adapter 1* Serial Cable 1* Ethernet Cable 1* WiFi Antenna |
| Work Temp. | -25 ~ 85°C |
| Storage Temp. | -45 ~ 105°C, 5 ~ 95% RH（no condensation） |
