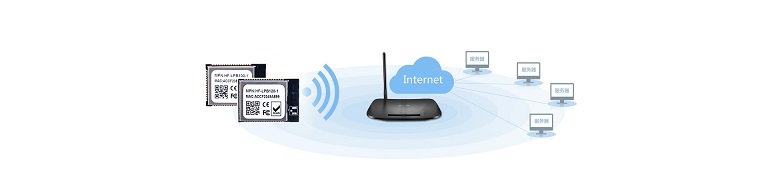

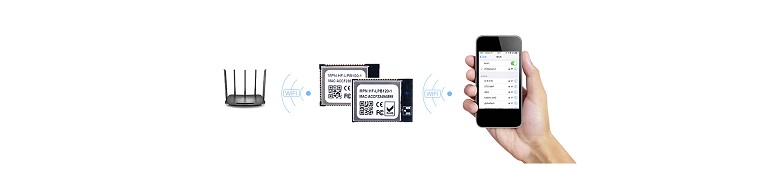

Low power Wi-Fi module will provide a wireless interface to any equipments with a UART interface for data thansfer. And it is widely used in IOT area, such as handheld device and industry control.

Characteristic:

  • Support IEEE802.11b/g/n Wireless Standards

  • Ultra-Low-Power for Battery Applications with Excellent Power Save Scheme

  • Based on Self-developed High Cost Effective MCU

  • Support UART/GPIO etc. Data Communication Interface

  • Support Smart Link Function (APP program provided)

  • Support Wireless and Remote Firmware Upgrade Function

  • SDK Provided and Support Secondary Development

  • Smallest Size:23.1mm × 32.8mm ×(3.45)mm

  • FCC/CE Certificated


  • Sizing Table

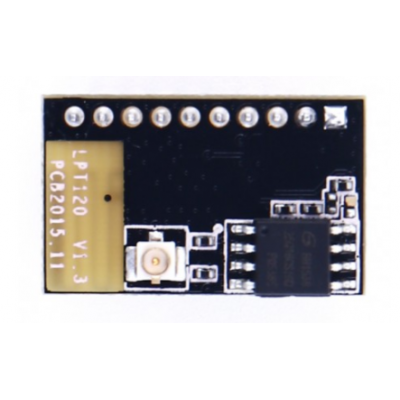

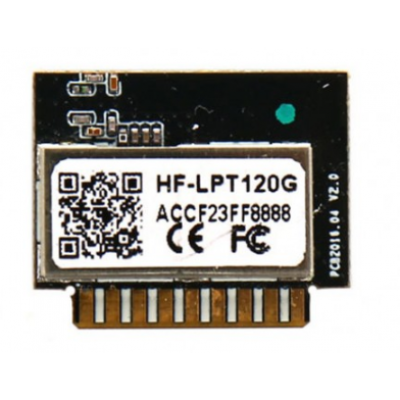

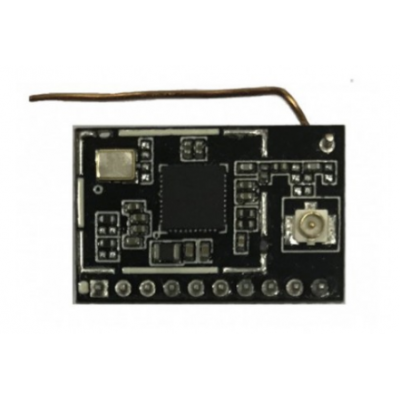

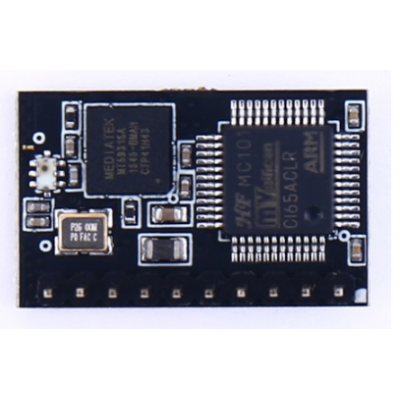

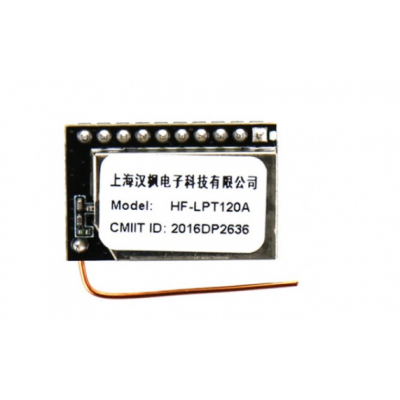

    Name HF-LPT130A  >> HF-LPT120A  >> HF-LPT120  >> HF-LPT120G  >> HF-LPT100  >> HF-LPT100F  >>
    Image HF-LPT130A HF-LPT120A HF-LPT120 HF-LPT120G HF-LPT100 HF-LPT100F
    Production Data 2017/Q4 2015/Q4 2015/Q4 2016/Q2 2013/Q1 2015/Q2(New)
    Key Feature Low Power SDK Support SmartLink Config Tiny Size Lowest Price Low Power SDK Support SmartLink Config Small Size Strong Signal Strength Lowest Price Low Power SDK Support SmartLink Config Small Size Lowest Price Low Power SDK Support SmartLink Config Small Size Strong Signal Strength Lowest Price Low Power SDK Support SmartLink Config Small Size Low Power SDK Support SmartLink Config Small Size Strong Signal Strength
    Processor Cortex-M4 SOC ARM7 SOC ARM7 SOC ARM7 SOC Cortex-M3 MTK Cortex-M3 MTK
    Basic Frequency 160MHz 96MHz 96MHz 96MHz 96MHz 96MHz
    Operating System mbed Contiki Contiki Contiki FreeRTOS FreeRTOS
    Wi-Fi Standard 802.11bgn 802.11bgn 802.11bgn 802.11bgn 802.11bgn 802.11bgn
    Certification CE/FCC/SRRC/RoHS CE/FCC/SRRC CE/FCC FCC/CE CE/FCC/SRRC CE/FCC/SRRC
    Temp. Range -40℃- 125℃ -20~+85 -20~+85 -20~+85 -40~+85 -40~+85
    Internal Antenna
    I-PEX Connector
    Size (mm) 22×14.3×8 22x13.5x6 22x13.5x6 24mm x 19.5mm x 3mm 22x13.5x6 22x13.5x6
    Package Type DIP10 DIP10 DIP10 DIP18 DIP10 DIP10
    Work Voltage 2.9~4.2V 2.95~3.6V 2.95~3.6V 2.95~3.6V 2.8~3.6V 2.8~3.6V
    Current @No data ~25mA ~30mA ~30mA ~30mA ~12mA ~12mA
    Current @Tx Peak ~260mA ~280mA ~280mA ~280mA ~300mA ~300mA
    Resource-Flash 1MB/2MB/4MB 2MB 2MB 2MB 2MB 2MB
    Resource-RAM 352KB /384KB/448KB 192KB 192KB 192KB 128KB 128KB
    Interface-UART 2 2 2 2 1 1
    Interface-PWM 5 3 5
    Interface-GPIO √ (5) √ (5) √ (5)
    AP Mode √(Max 4 STA) √(Max 4 STA) √(Max 4 STA) √(Max 2 STA) √(Max 2 STA)
    STA Mode
    AP+STA Mode
    WPS Function
    Web Server
    OTA Upgrade

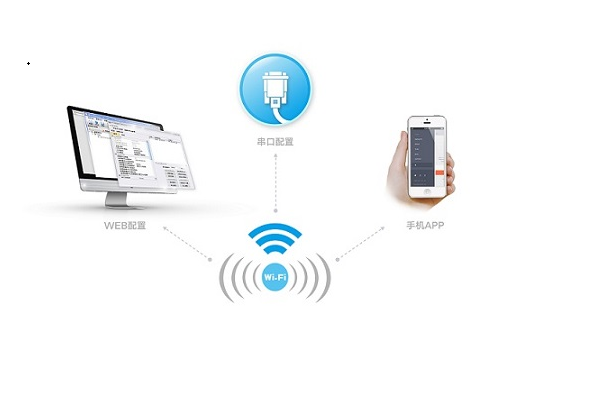

    Smart Configure SmartLink V7.X APP
    Airkiss Configure
    SDK Support
    Interface-A/D √ (2) √ (2)
