5V-supply Wi-Fi module will provide a wireless interface to any equipments with a UART interface for data thansfer. T 5v-supply will meet some hardware design demands. And it is widely used in IOT area, such as handheld device and industry control.

Characteristic:

  • Support IEEE802.11b/g/n Wireless Standards

  • Ultra-Low-Power for Battery Applications with Excellent Power Save Scheme

  • Based on Self-developed High Cost Effective MCU

  • Support UART/GPIO etc. Data Communication Interface

  • Support Smart Link Function (APP program provided)

  • Support Wireless and Remote Firmware Upgrade Function

  • +5V Power Supply

  • SDK Provided and Support Secondary Development

  • Smallest Size:45.7mm × 30.5mm × 6mm

  • FCC/CE Certificated


  • Sizing Table

    Name HF-LPB105  >> HF-LPB125  >> HF-LPB135  >>

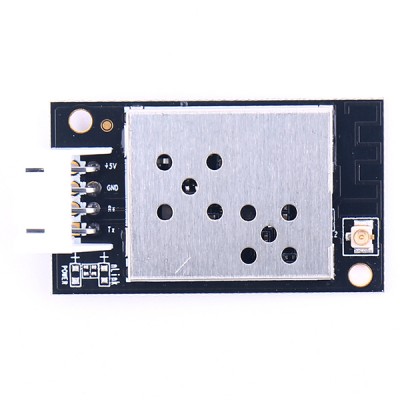

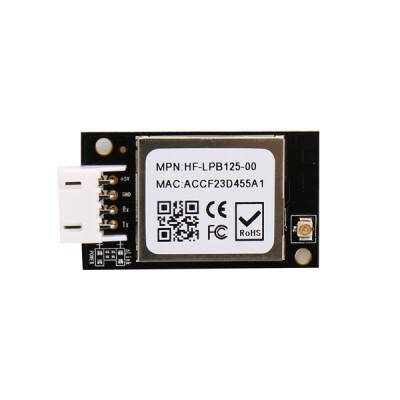

    Image HF-LPB105 HF-LPB125 HF-LPB135
    Production Data 2015/Q3(New) 2015/Q4
    Key Feature Low Power SDK Support SmartLink Config 5V Support Low Power SDK Support SmartLink Config 5V Support Lowest Price Low Power SDK Support SmartLink Config Small Size Strong Signal Strength Lowest Price
    Processor Cortex-M3 MTK ARM7 SOC Cortex-M4 SOC
    Basic Frequency 96MHz 96MHz 160MHz
    Operating System FreeRTOS Contiki mbed
    Wi-Fi Standard 802.11bgn 802.11bgn 802.11bgn
    Certification CE/FCC CE/FCC CE/FCC/SRRC/RoHS
    Temp. Range -40~+85 -20~+85 -40℃- 125℃
    Internal Antenna
    I-PEX Connector
    Size (mm) 30.5x45.7x3.45 23.1×32.8×3.45 41.3mm x 24.1mm x 6mm
    Package Type 1x4 Connector 2x4 Connector 卧式贴片针座
    Work Voltage 5V 5V 2.9~4.2V
    Current @No data ~12mA ~30mA ~25mA
    Current @Tx Peak ~300mA ~280mA ~260mA
    Resource-Flash 2MB 2MB 1M/2M/4M
    Resource-RAM 128KB 192KB 352KB /384KB/448KB
    Interface-UART 1 2 2
    Interface-GPIO
    Interface-A/D
    AP Mode √(Max 2 STA) √(Max 4 STA)
    STA Mode
    AP+STA Mode
    WPS Function
    Web Server
    OTA Upgrade
    Smart Configure SmartLink V7.X APP
    Airkiss Configure
    SDK Support
