Characteristic：

  • Support Internal/External

  • 12.75mm x 12mm x 2mm（Internal）
  • 9mm x 12mm x 2mm（External）
  • Support UART/SPI etc. Data Communication Interface
  • BQB
  • CE Certificated

    • Sizing Table

    Name ★HF-BL500  >> ★HF-BL550  >> ★HF-BL560  >> HF-BL300  >>

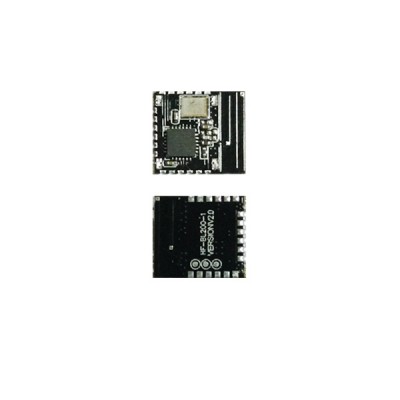

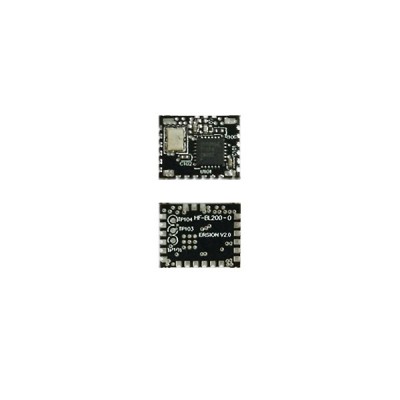

    Image ★HF-BL500 ★HF-BL550 ★HF-BL560 HF-BL300
    Size 22.5mm x 13.5mm x 3mm 22.5mm x 13.5mm x 3mm 22.5mm x 13.5mm x 3mm 26mm x 14.5mm
    Wireless Standard 802.15.1 802.15.1 802.15.1 802.15.1
    Frequency Range 2.402GHz~2.480GHz 2.402GHz~2.480GHz 2.402GHz~2.480GHz 2.402GHz~2.480GHz
    Transmit Power Max=+10 dBm Max=+10 dBm Max=+10 dBm Max=+10 dBm
    Receiver Sensitivity -93 dBm -93 dBm -97 dBm -93 dBm
    Data Interface UART PWM ADC UART PWM ADC UART PWM ADC UART SPI I2C PWM ADC
    Operating Voltage 2.5~4.3V 2.5~4.3V 1.8~4.3V 1.8~3.6V
    Operating Current 3.2mA 20mA
    Deep Sleep Current 6.1uA 80uA 3～11uA
    Operating Temp. -40℃- 125℃ -40℃- 125℃ -40℃- 125℃ -40℃- 125℃
    StorageTemp. -45℃- 125℃ -45℃- 125℃ -45℃- 125℃ -45℃- 125℃
    Power 20ms广播 ：1.84mA 1秒广播：80uA
