High-Performance module is launched by high-flying and it supports 802.11b/g/n protocol. Customers do not need to know complex TCP/UDP protocol to achieve devices connection mutually. With High-Performance module, the traditional devices or MCU controlled devices can easily access to the wireless network through UART or 100M Ethernet interface.

Characteristic：

  • Support IEEE802.11b/g/n Wireless Standards

  • Support TCP/IP/UDP Network Protocols

  • Support UART/GPIO/Ethernet Data Communication Interface

  • Support STA/AP/AP+STA Mode

  • Support Router/Bridge Mode Networking

  • SDK Provided and Support Secondary Development (A21 and A21-SMT)

  • Support Friendly Web Configuration Page

  • Single +3.3V Power Supply

  • FCC/CE Certificated

    • Sizing Table

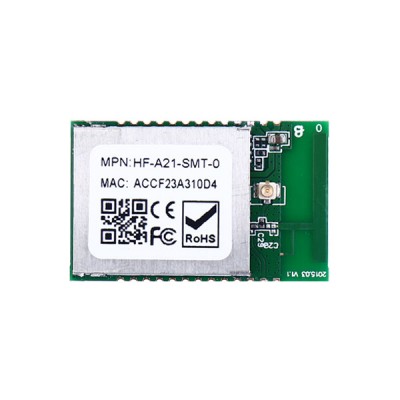

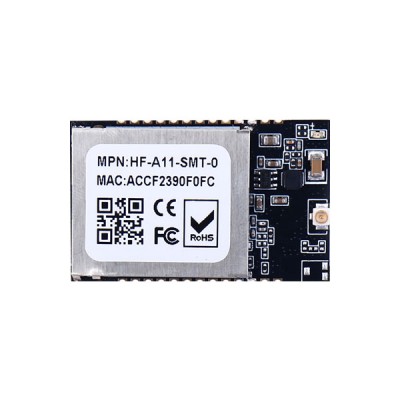

    Name ★HF-A21-SMT  >> HF-A11-SMT  >>
    Image ★HF-A21-SMT HF-A11-SMT
    Production Data 2015/Q1(New) 2011/Q3
    Key Feature Hardware AP Solution Ethernet SDK Support Lower Price Hardware AP Solution Ethernet
    Processor MIPS SOC MIPS MTK
    Basic Frequency 380MHz 380MHz
    Operating System Ecos Ecos
    Wi-Fi Standard 802.11bgn 802.11bgn
    Certification FCC/CE/RoHS CE/FCC
    Temp. Range -40~+85 -40~+85
    Internal Antenna √ √
    I-PEX Connector √ √
    Size (mm) 25×40×3 25×40×3
    Package Type SMT26 SMT26
    Work Voltage 3.3V 3.3V
    Current @No data ~170mA ~180mA
    Current @Tx Peak ~400mA ~400mA
    Resource-Flash 2MB 1MB/2MB
    Resource-RAM 8MB >1MB
    Interface-UART 2 2
    Interface-Ethernet √ √
    Interface-GPIO √ √
    AP Mode √(Max 20 STA) √(Max 20 STA)
    STA Mode √ √
    AP+STA Mode √ √
    Wi-Fi Repeater √ √
    Web Server √ √
    OTA Upgrade √ √
    SDK Support √
