Golden Finger Package

Golden Finger Package

Overview of Characteristic

²  Support Wi-Fi IEEE802.11b/g/n and BLE5.0 Wireless Standards

²  Based on RISC SOC, 160MHz CPU, 276KB RAM, 2MB Flash

²  Support Wi-Fi STA/AP Mode

²  Support BLE SmartBLELink Config

²  Support Wi-Fi AP SmartAPLink and Sniffer SmartLink Config

²  Support Wireless and Remote Firmware Upgrade Function

²  Support Software SDK for Develop

²  Support Internal chip antenna

²  Single +3.3V Power Supply


Sizing Table

Name ★HF-LPT272  >>

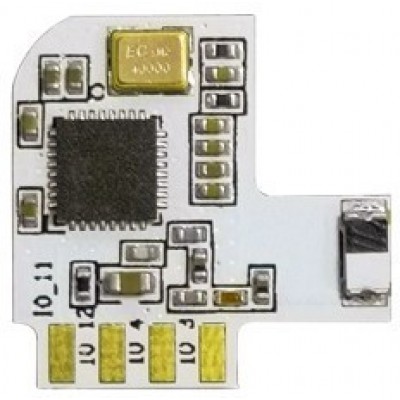

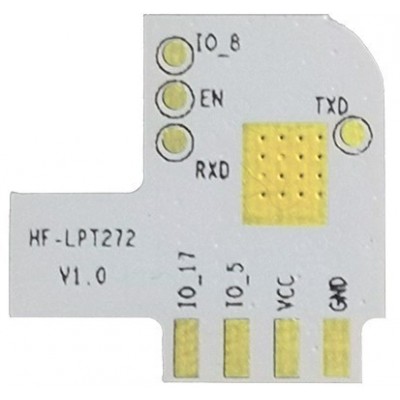

Image ★HF-LPT272
Wireless Standard 802.11b/g/n BLE 5.0
StorageTemp. 40℃- 125℃
Production Data 2020/Q1
Processor RISC CPU
Basic Frequency 160MHz
Operating System FreeRTOS
Temp. Range -40℃- 85℃
Internal Antenna
Size (mm) 15.2mm x 15mm x 2.2mm
Work Voltage 2.7~3.6V
Current @No data <45mA
Current @Tx Peak <350mA
Resource-Flash 2MB
Resource-RAM 276KB
