The Elfin-EE1X unit is a complete solution for serial port device connecting to network. This powerful device supports a 10/100BASE-T Ethernet connection, a reliable and proven operating system stored in flash memory, an embedded web server, a full TCP/IP protocol stack,and standards-based (AES) encryption.

 Through Ethernet cable connect router with Elfin-EE1X serial server for data transfer, which makes the data transformation very simple.

Overview of Characteristic:

  • Cortex-M3 MCU with 2MB Flash and 128KB SRAM
  • Use FreeRTOS Operation System
  • Support TCP/IP/Telnet /Modbus TCP Protocol
  • Support RS232/RS485 To 10/100M Ethernet Conversion, Serial Speed Upto 460800 bps
  • Support 10/100M Ethernet Auto-Negotiation
  • Support Webpage Easy Configuration or PC IOTService Tool
  • Support Security Protocol Such As TLS/AES/DES3
  • Support Heart and Resister Packet Function
  • Support  Web OTA Wireless Upgrade
  • Support Industrial Temperature: -40 to +85˚ C
  • Wide DC Input 5~18VDC
  • Size: 61 x 26 x 17.8 mm (L x W x H)

Sizing Table

Name ★Elfin-EE10&Elfin-EE11  >>
Image ★Elfin-EE10&Elfin-EE11
StorageTemp. -45 ~ 105°C, 5 ~ 95% RH
Processor Cortex-M3
Basic Frequency 96MHz
Flash 2MB
Operating System FreeRTOS
Ethernet 1
Interface Standard 10/100M Base-T Auto-Negotiation
Network Protocol IP,TCP,UDP,DHCP,DNS,HTTP Server/Client,ARP, AutoIP, ICMP, Telnet,NTP, Modbus TCP
Security Protocol TLS 1.2 AES 128Bit DES3

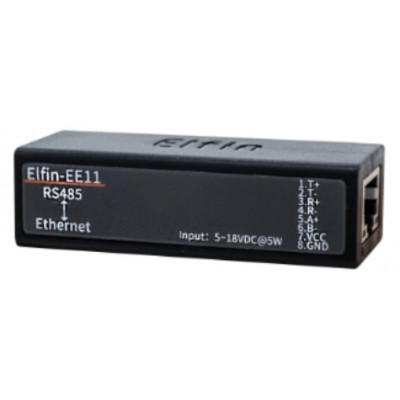

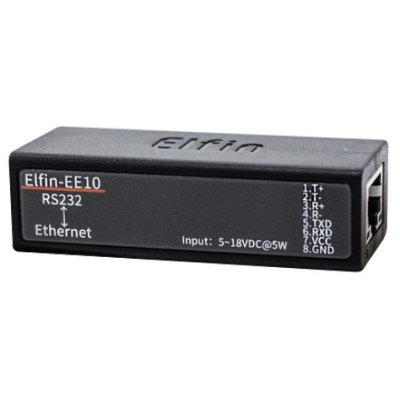

Port Number EE10:1 RS232 EE11:1 RS485
Data Bits 5,6,7,8
Stop Bit 1,2
Check Bit None,Even,Odd
Baud Rate TTL:600 bps~460800bps
Flow Control No Flow Control Half Flow Control(RS485) Software Xon/ Xoff flow control
Configuration Http Web Configuration Customization of HTTP Web Pages
Size 61 x 26 x 17.8 mm
Input Voltage 5~18VDC
Power <400mW
Network Transformer Integrated
Work Temp. -40 ~ 85°C
