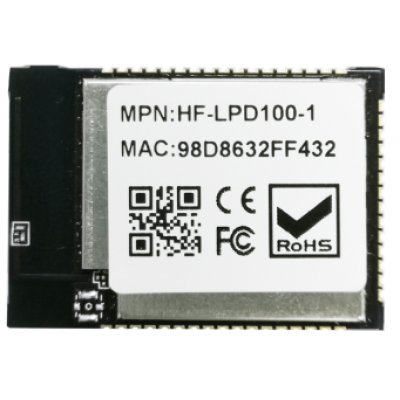

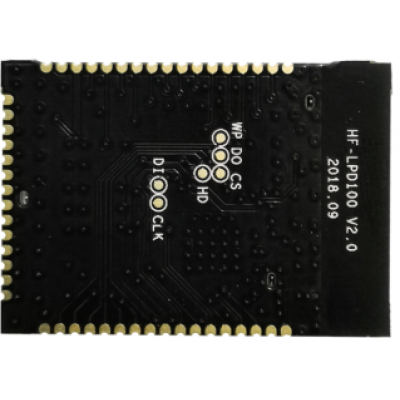

SMT Package
SMT Package
Overview of Characteristic
- Support IEEE802.11 a/b/g/n Wireless Standards, work in 2.4GHz and 5GHz dual band
- Based on Andes Core, 160MHz CPU, 192KB RAM, 2MB Flash
- Support UART Data Communication Interface
- Support Work As STA/AP/AP+STA Mode
- Support SmartLink V8 Function (Provide APP SDK)
- Support WeChat Airkiss 2.0
- Support Wireless and Remote Firmware Upgrade Function
- Support Software SDK for Develop
- Support Different Antenna Option, Internal PCB or External IPEX
- Single +3.3V Power Supply
- Small Size:23.1mm x 32.8mm x 3.5mm, SMT48 package
- FCC/CE/SRRC/RoHS Certificated (TBD)
Name | ★HF-LPD100E >> | HF-LPD100 >> |
---|---|---|
Image | ||
Wireless Standard | 2.4GHz:802.11 b/g/n 5GHz:802.11 a | |
StorageTemp. | Storage Temp -40℃- 125℃ | Storage Temp -40℃- 125℃ |
Frequency Range | 2.4GHz:802.11 b/g/n 5GHz:802.11 a | |
Processor | Andes Core | Andes Core |
Basic Frequency | 160MHz | 160MHz |
Operating System | FreeRTOS | FreeRTOS |
Wi-Fi Standard | 802.11 a/b/g/n | 802.11 a/b/g/n |
I-PEX Connector | √ | √ |
Size (mm) | 22 x 14.3 x 8mm | 23.1mm x 32.8mm x 3.5mm |
Package Type | DIP10 package | SMT48 |
Work Voltage | 3.13~3.46V | 2.1~3.46V |
Current @No data | 44mA | ~27mA |
Current @Tx Peak | 345mA | ~260mA |
Resource-Flash | 2M | 2M |
Resource-RAM | 192KB RAM | 192KB RAM |
Interface-UART | 1 | 1 |
Interface-PWM | 2 | 5 |
Interface-GPIO | √ | √ |
AP Mode | √ | √ |
STA Mode | √ | √ |
AP+STA Mode | √ | √ |
Web Server | √ | √ |
OTA Upgrade | √ | √ |
SDK Support | √ | √ |
WPS Function | √ | |
Smart Configure SmartLink V7.X APP | √ | |
Work Temp. | -40℃- 85℃ | Operating Temp -40℃- 85℃ |
