Linux Embedded Network Device

Linux Embedded Network Device

Linux Embedded Network Device the most powerful feature rich embedded device networking module, offering an embedded Linux networking server. With a simplified product network function design, users can use it to quickly complete the networking function of embedded devices introducing savings in  manpower resources, development time and post-maintenance costs.


Overview of Characteristic

  • MIPS MCU with 16MB Flash and 32M SDRAM
  • Use Linux Operation System
  • Support TCP/IP/Telnet/Modbus TCP Protocol
  • Support Serial To 10/100M Ethernet Conversion, Serial Speed Upto 921600 bps
  • Support 10/100M Ethernet Auto-Negotiation
  • Support Easy Configuration Through a Web Interface
  • Support Security Protocol Such As TLS/AES/DES3
  • Support  Web OTA Wirelss Upgrade
  • Single +3.3V Power Supply
  • Size: 50 x 23 x 11 mm (L x W x H)
  • FCC/CE/RoHS Certificated

Sizing Table

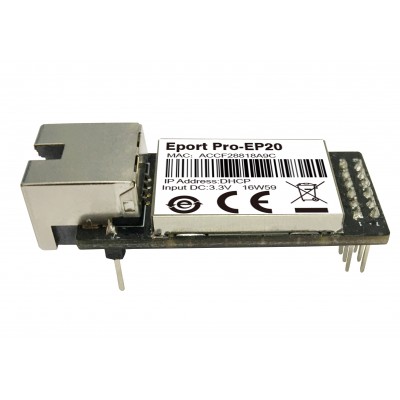

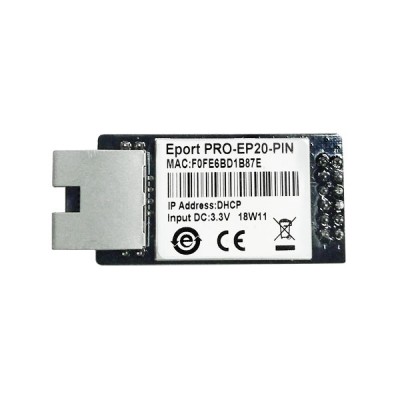

Name Eport Pro-EP20-PIN  >> Eport Pro-EP20  >> Eport Pro-EP40  >>
Image Eport Pro-EP20-PIN Eport Pro-EP20 Eport Pro-EP40
System Information
Processor/Frequency MIPS/320MHz MIPS/320MHz MIPS/320MHz
Flash/SDRAM 16MB/32MB 16MB/32MB 16MB/32MB
Operating System Linux Linux Linux
Ethernet
Port Number 1 RJ45 with LED 1 RJ45 with LED 1 RJ45 with LED
Interface Standard 10/100 Base-T Auto-Negotiation 10/100 Base-T Auto-Negotiation 10/100 Base-T Auto-Negotiation
Protection 2KV Isolation 2KV Isolation 2KV Isolation
Network Transformer Integrated Integrated Integrated
Network Protocol IP,TCP,UDP,DHCP,DNS,HTTP Server/Client,ARP, BOOTP, AutoIP, ICMP,Web socket, Telnet, FTP,TFTP, uPNP, NTP, SNMP,Modbus TCP IP,TCP,UDP,DHCP,DNS,HTTP Server/Client,ARP, BOOTP, AutoIP, ICMP,Web socket, Telnet, FTP,TFTP, uPNP, NTP, SNMP,Modbus TCP IP,TCP,UDP,DHCP,DNS,HTTP Server/Client,ARP, BOOTP, AutoIP, ICMP,Web socket, Telnet, FTP,TFTP, uPNP, NTP, SNMP,Modbus TCP
Security Protocol SSL v3(2048)、 AES 128Bit、3DES、 SHA-1、MD5、Base-64、RSA、ECC SSL v3(2048)、 AES 128Bit、3DES、 SHA-1、MD5、Base-64、RSA、ECC SSL v3(2048)、 AES 128Bit、3DES、 SHA-1、MD5、Base-64、RSA、ECC
IPV6 Support support Support Support
Serial
Port Number 1 + 1 debug 1 + 1 debug 1 + 1 debug
Interface Standard 3.3V TTL: 2 wire(TX,RX) 3.3V TTL: 2 wire(TX,RX) 3.3V TTL: 2 wire(TX,RX)
Data Bits 8 8 7,8
Stop Bit 1,2 1,2 1,2
Check Bit None,Even,Odd,Space,Mark None,Even,Odd,Space,Mark None,Even,Odd,Space,Mark
Baud Rate TTL: 600 bps~460800bps TTL: 600 bps~460800bps TTL: 600 bps~460800bps
Flow Control No Flow control Hardware RTS/CTS、DSR/DTR Software Xon/ Xoffflow control No Flow control Hardware RTS/CTS、DSR/DTR Software Xon/ Xoffflow control No Flow control Hardware RTS/CTS、DSR/DTR Software Xon/ Xoffflow control
Software
Web Pages Http Web Configuration Customization of HTTP Web Pages Http Web Configuration Customization of HTTP Web Pages Http Web Configuration Customization of HTTP Web Pages
Log Remote Realtime Log Remote Realtime Log Remote Realtime Log
Configuration Web CLI XML import Telnet IOTManager PC Software Web CLI XML import Telnet IOTManager PC Software Web CLI XML import Telnet IOTManager PC Software
PC Config Tools IOTManager PC Software IOTManager PC Software IOTManager PC Software
SDK For Dev. support Support Support
Basic Parameter
Size 50x 23x 12mm 50x 23x 11mm 50x 23x 11mm
Operating Temp. -45 ~ 70°C -45 ~ 70°C -45 ~ 70°C
Storage Temp. -45 ~ 105°C, 5 ~ 95% RH(no condensation) -45 ~ 105°C, 5 ~ 95% RH(no condensation) -45 ~ 105°C, 5 ~ 95% RH(no condensation)
Input Voltage 3.3V 3.3V 3.3V
Working Current ~200mA ~200mA ~200mA
Power <700mW <700mW <700mW
Certificate CE CE
