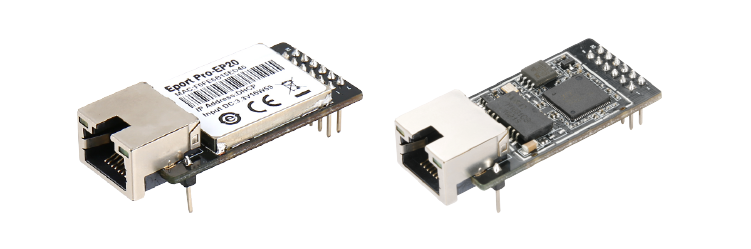

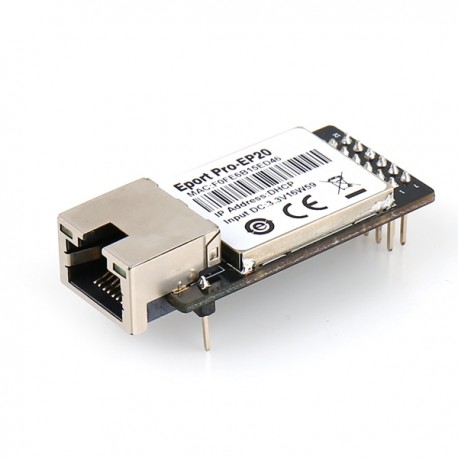

Eport Pro-EP20

Buy Online

Overview of Characteristic

² MIPS MCU with 16MB Flash and 32MB SRAM

² Use Linux Operation System

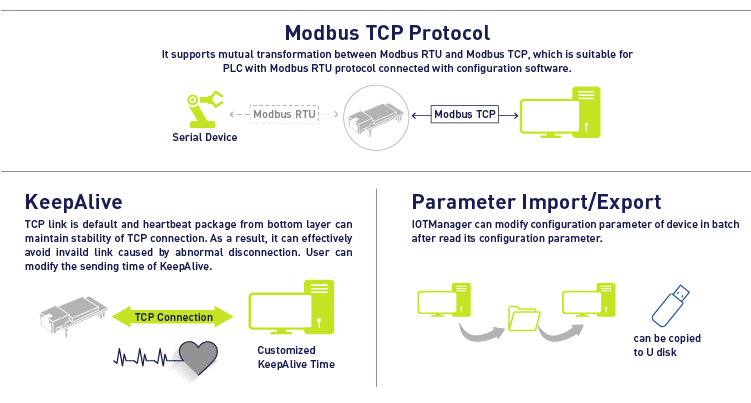

² Support TCP/IP/Telnet/Modbus TCPProtocol

² Support Serial To 10/100M Ethernet Conversion, Serial Speed Upto 460800 bps

² Support 10/100M Ethernet Auto-Negotiation

² Support Easy Configuration Through a WebInterface

² Support Security Protocol Such AsSSL/AES/DES3

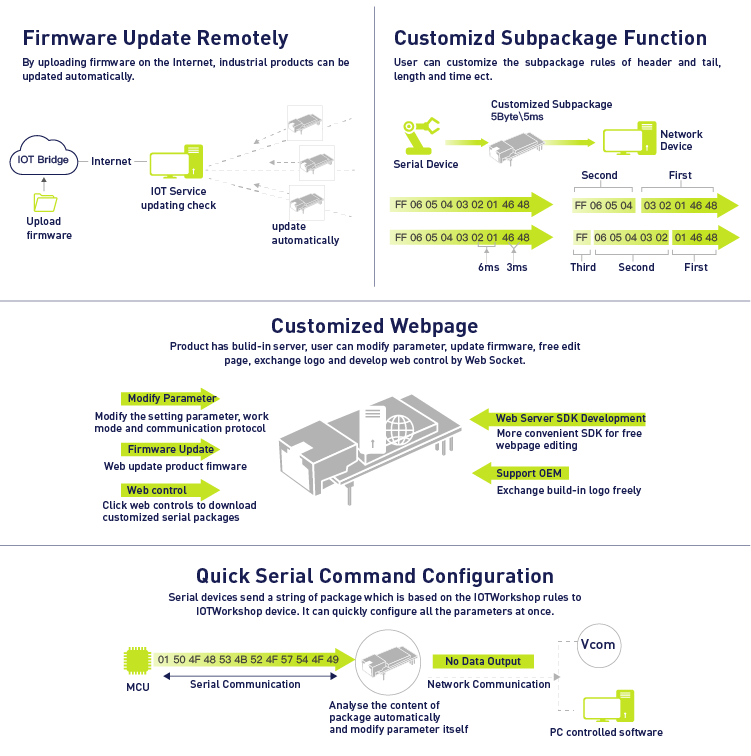

² Support Web OTA Wirelss Upgrade

² Single +3.3V Power Supply

² Size: 50 x 23x 11 mm(L x W x H)

² CE Certificated

System Information
Processor/Frequency	MIPS/320MHz
Flash/SDRAM	16MB/32MB
Operating System	Linux
Ethernet
Port Number	1 RJ45 with LED
Interface Standard	10/100 Base-T Auto-Negotiation
Protection	2KV Isolation
Network Transformer	Integrated

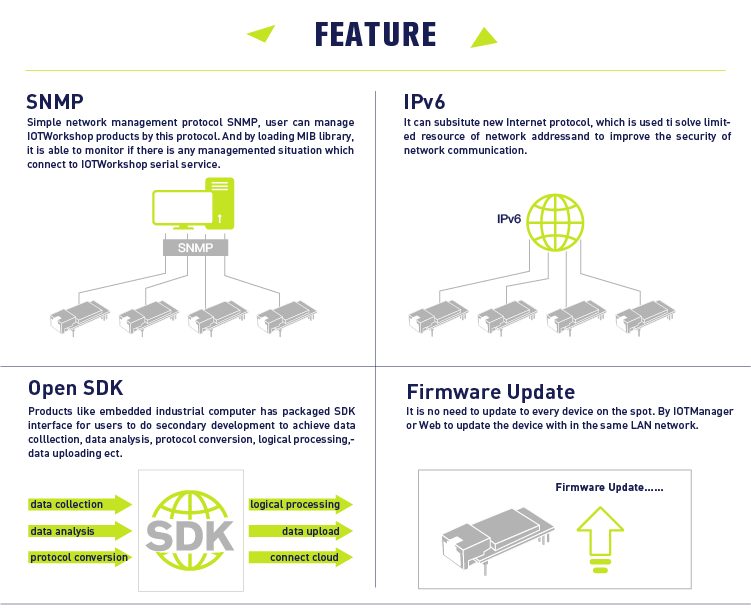

Network Protocol	IP，TCP，UDP，DHCP，DNS，HTTP Server/Client，ARP, BOOTP, AutoIP, ICMP，Web socket, Telnet, FTP,TFTP, uPNP, NTP, SNMP,Modbus TCP
Security Protocol	SSL v3（2048）、 AES 128Bit、3DES、 SHA-1、MD5、Base-64、RSA、ECC
IPV6 Support	Support
Serial
Port Number	1 + 1 debug
Interface Standard	3.3V TTL: 2 wire（TX,RX）
Data Bits	8
Stop Bit	1,2
Check Bit	None,Even,Odd,Space,Mark
Baud Rate	TTL: 600 bps~460800bps
Flow Control	No Flow control Hardware RTS/CTS、DSR/DTR Software Xon/ Xoffflow control
Software
Web Pages	Http Web Configuration Customization of HTTP Web Pages
Log	Remote Realtime Log
Configuration	Web CLI XML import Telnet IOTManager PC Software
PC Config Tools	IOTManager PC Software
SDK For Dev.	Support
Basic Parameter
Size	50x 23x 11mm
Operating Temp.	-45 ~ 70°C
Storage Temp.	-45 ~ 105°C, 5 ~ 95% RH（no condensation）
Input Voltage	3.3V
Working Current	~200mA
Power	<700mW
Certificate	CE

User Guide: IOT_Device_Series_Software_Funtion_20250328 [ Download Times: 55162, Date Update: 2025-09-18 14:41:10 ]
: PE1X_EE1X_HF51XX_Eport_Operation Guide_20200402 [ Download Times: 18626, Date Update: 2025-09-18 14:42:19 ]
: Eport Pro-EP20&EP20-PIN Super Port User ManualV1.4(20211118) [ Download Times: 1092, Date Update: 2023-09-21 15:17:43 ]

Application Notes: Eport&HF51 Series Application Manual [ Download Times: 2448, Date Update: 2016-11-21 15:05:38 ]
: Eport Series EVK Design Package [ Download Times: 3552, Date Update: 2018-07-17 11:35:50 ]

Certificate: Eport Pro-EP20_CE [ Download Times: 225, Date Update: 2022-05-12 18:09:22 ]
