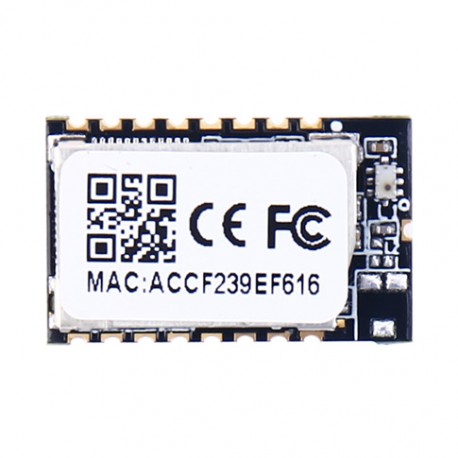

UART to Wi-Fi [LPT200]

Buy Online

Overview of Characteristic

● Support IEEE802.11b/g/n Wireless Standards

● Based on High-Flying Cotex-M3 MCU (MC101) + MediaTek Wi-Fi MT5931SA

● Low-Power Applications with Excellent Power Save Scheme

● Support UART/SPI/PWM/GPIO Data Communication Interface

● Support Work As STA/AP/AP+STA Mode

● Support Smart Link Function (APP provide)

● Support Wireless and Remote Firmware Upgrade Function

● Support WPS Function

● Support Multi-TCP Link (Upto 5) Connection

● Support Internal/External Antenna Option

● Single +3.3V Power Supply

● Smallest Size: 22mm x 13.5mm x3mm, SMT17 Package

Class	Item	Parameters
Wireless Parameters	Certification	FCC/CE/RoHS/REACH/IC
	Wireless standard	802.11 b/g/n
	Frequency range	2.412GHz-2.484GHz
	Transmit Power	802.11b: +16 dBm (@11Mbps)
		802.11g: +14 dBm (@54Mbps)
		802.11n: +13 dBm (@HT20, MCS7)
	ReceiverSensitivity	802.11b: -93 dBm (@11Mbps ,CCK)
		802.11g: -85 dBm (@54Mbps, OFDM)
		802.11n: -82 dBm (@HT20, MCS7)
	Antenna Option	External: Line Pad Output
	Antenna Option	Internal:On-board Chip antenna
Hardware Parameters	Data Interface	UART
		SPI
		GPIO
	Operating Voltage	2.8~3.6V
	Operating Current	Peak [Continuous TX]: ~300mA Normal [WiFi ON/OFF, DTIM=100ms]: Average. ~12mA, Peak: 300mA
	Operating Temp.	-40℃- 85℃
	StorageTemp.	-45℃- 125℃
	Dimensions and Size	22mm×13.5mm×3mm, SMT17
Software Parameters	Network Type	STA /AP/STA+AP
	Security Mechanisms	WEP/WPA-PSK/WPA2-PSK
	Encryption	WEP64/WEP128/TKIP/AES
	Update Firmware	Local Wireless, Remote
	Customization	Web Page Upgrade Support SDK for application develop
	Serial command	AT+instruction set
	Network Protocol	IPv4,TCP/UDP/FTP/HTTP
	User Configuration	AT+instruction set. Android/ iOS Smart Link APP tools

HF-LPT200

Base on customer detailed requirement, HF-LPT200 series modules provide different variants and physical type for detailed application.

Production Data	2013/Q4
Key Feature	Low Power SDK Support SmartLink Config Small SMT Size
Processor	Cortex-M3 MTK
Basic Frequency	96MHz
Operating System	FreeRTOS
Wi-Fi Standard	802.11bgn
Certification	FCC/CE/RoHS/REACH/IC
Temp. Range	-40~+85
Internal Antenna	√
I-PEX Connector	RF Pad
Size (mm)	22x13.5x3
Package Type	SMT17
Work Voltage	2.8~3.6V
Current @No data	~12mA
Current @Tx Peak	~300mA
Resource-Flash	1MB/2MB
Resource-RAM	128KB
Interface-UART	1
Interface-PWM	4
Interface-SPI	1
Interface-GPIO	√
Interface-A/D	√ (4)
AP Mode	√(Max 2 STA)
STA Mode	√
AP+STA Mode	√
WPS Function	√
Web Server	√(2MB Flash)
OTA Upgrade	√
Smart Configure SmartLink V7.X APP	√
Airkiss Configure	√
SDK Support	√

Firmware: LPB100&LPT100&LPT200&LPB105_V1.0.08-11_Firmware [ Download Times: 4661, Date Update: 2019-01-15 19:14:10 ]

Applications: Production Tool [ Download Times: 14886, Date Update: 2016-11-03 16:39:17 ]
: EVK_Quick_Start_Guide [ Download Times: 2601, Date Update: 2016-11-25 13:50:46 ]
: HF-LPT200_EVK_Design_Package [ Download Times: 311, Date Update: 2016-11-25 15:00:39 ]

Software Development Kit: JDV2.0_LPB100-LPT100-LPT200 [ Download Times: 831, Date Update: 2016-11-04 11:22:29 ]

User Guide: HF-LPT200 User Manual [ Download Times: 1106, Date Update: 2016-11-08 19:34:19 ]
: Airkiss Smart Config [ Download Times: 3562, Date Update: 2016-11-14 11:49:51 ]

Application Notes: HF-LPB100_LPT100_LPT200 config guide [ Download Times: 2368, Date Update: 2016-11-14 13:23:44 ]
: HF LP series pins mapping table [ Download Times: 3457, Date Update: 2016-11-14 13:26:26 ]
: HF-LPB100&HF-LPB120 Series Hardware Design [ Download Times: 1432, Date Update: 2016-11-14 13:29:31 ]
