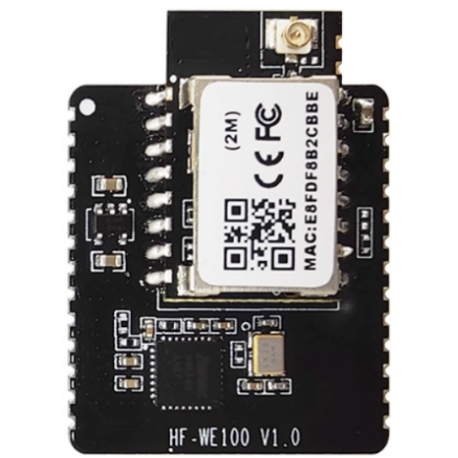

HF-WE100

  • Product Code: UART to Wi-Fi/BLE/以太网 [HF-WE100]
Buy Online

Overview of Characteristic

²Support Wi-Fi IEEE802.11b/g/n and BLE5.0 Wireless Standards

²Support Ethernet 802.3 protocol, 10/100M interface

²Based on RISC SOC, 160MHz CPU, 276KB RAM, 2MB Flash

²Support UART Data Communication with Wi-Fi or BLE or Ethernet

²Support Wi-Fi STA/AP/AP+STA Mode

²Support BLE SmartBLELink Config

²Support Wi-Fi AP SmartAPLink

²Support Wireless and Remote Firmware Upgrade Function

²Support Software SDK for Develop

²Support Different Antenna OptionInternal PCB or External 1st IPEX

²Single +3.3V Power Supply

²Size: 34.3±0.5mm x 25.0±0.3mm x 4.3±0.4mm, SMT26 package

Frequency Range WiFi:2.412GHz-2.472GHz; BLE:2.402GHz-2.480GHz
Wireless Standard 802.11b/g/n; BLE 5.0
Collocation Method AT+instruction set. SmartBLELink BLE Config SmartAPLink AP Config
Network Protocol IPv4, TCP/UDP/HTTP/TLS 1.2
Network Mode STA/AP/APSTA
Processor RISC CPU
Basic Frequency 240MHz
Temp. Range -40℃- 85℃
Internal Antenna
I-PEX Connector
Size (mm) 34.3±0.5mm x 25.0±0.3mm x 4.3±0.4mm
Work Voltage 2.7~3.6V
Current @No data 40mA
Current @Tx Peak <350mA
Resource-Flash 2MB
Resource-RAM 276KB
Interface-Ethernet Standard:802.3, PHY interface; Rate:10/100M Base-T auto negotiation
Storage Temp. 40℃- 125℃
User Guide
HF-WEXXX Module Operation Guide_20221215 [ Download Times: 337,  Date Update: 2022-12-15 18:30:33 ]
HF-WE100 Wi-Fi_BLE_Ethernet_Module_User_Manual_V1.1(20221220) [ Download Times: 297,  Date Update: 2022-12-20 18:50:16 ]
Application Notes
HF-WEx00 EVB_20221220 [ Download Times: 278,  Date Update: 2022-12-20 18:51:16 ]
