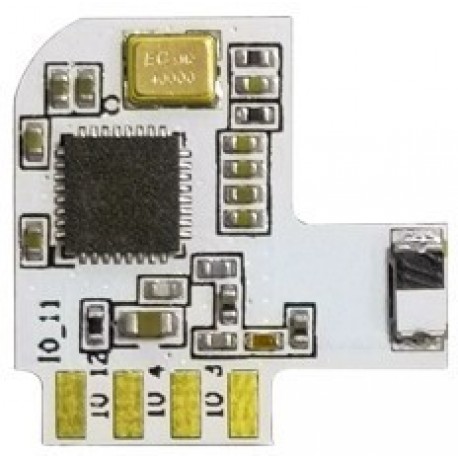

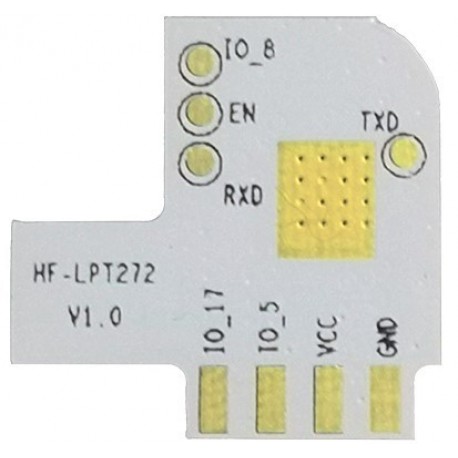

★HF-LPT272

  • Product Code: [LPT272]
Buy Online

Overview of Characteristic

²  Support Wi-Fi IEEE802.11b/g/n and BLE5.0 Wireless Standards

²  Based on RISC SOC, 160MHz CPU, 276KB RAM, 2MB Flash

²  Support Wi-Fi STA/AP Mode

²  Support BLE SmartBLELink Config

²  Support Wi-Fi AP SmartAPLink and Sniffer SmartLink Config

²  Support Wireless and Remote Firmware Upgrade Function

²  Support Software SDK for Develop

²  Support Internal chip antenna

²  Single +3.3V Power Supply

²  Size:

n  HF-LPT272: 15.2mm x 15mm x 2.2mmGolden Finger 8 package


Wireless Standard 802.11b/g/n BLE 5.0
StorageTemp. 40℃- 125℃
Production Data 2020/Q1
Processor RISC CPU
Basic Frequency 160MHz
Operating System FreeRTOS
Temp. Range -40℃- 85℃
Internal Antenna
Size (mm) 15.2mm x 15mm x 2.2mm
Work Voltage 2.7~3.6V
Current @No data <45mA
Current @Tx Peak <350mA
Resource-Flash 2MB
Resource-RAM 276KB
User Guide
HF-LPX70 系列Wi-Fi_BLE_模块用户手册V2.8(20241011) [ Download Times: 240,  Date Update: 2024-10-12 17:18:06 ]
HF-LPX70 Series Wi-Fi_BLE Module User Manual-V2.8(20241011) [ Download Times: 166,  Date Update: 2024-10-12 17:18:32 ]
