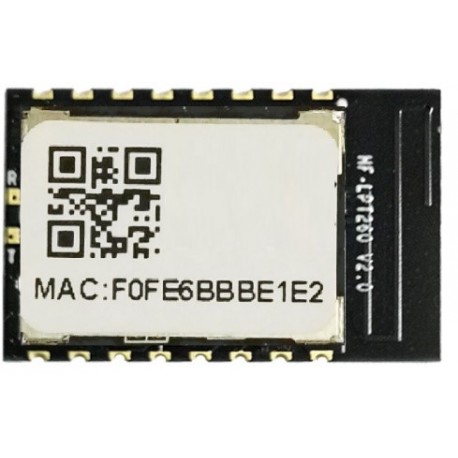

★HF-LPT260

  • Product Code: UART to Wi-Fi [LPT260]
Buy Online


Production Data 2017/Q4
Key Feature Low Power SDK Support SmartLink Config Lowest Price
Processor Cortex-M4 SOC
Basic Frequency 160MHz
Operating System mbed
Wi-Fi Standard 802.11bgn
Certification FCC/CE/SRRC/RoHS/IC/REACH
Temp. Range -40℃- 125℃
Internal Antenna
I-PEX Connector
Size (mm) 22×13.5×3
Package Type SMT18
Work Voltage 2.9~4.2V
Current @No data ~25mA
Current @Tx Peak ~260mA
Resource-Flash 1MB/2MB/4MB
Resource-RAM 352KB /384KB/448KB
Interface-UART 2
Interface-PWM 5
Interface-SPI 1
Interface-GPIO
Interface-A/D
AP Mode
STA Mode
AP+STA Mode
WPS Function
Web Server
OTA Upgrade
Smart Configure SmartLink V7.X APP
Airkiss Configure
SDK Support
User Guide
HF-LPT260 Wi-Fi Module User Manual-V1.3(20210813) [ Download Times: 562,  Date Update: 2021-08-16 16:52:51 ]
