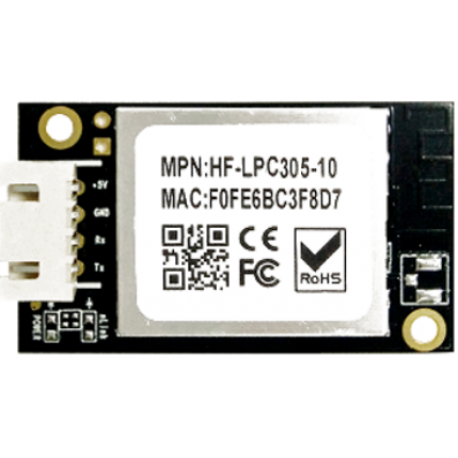

HF-LPC305
- Product Code: HF-LPC305
Overview of Characteristic
- Support Wi-Fi IEEE802.11b/g/n and BLE4.2 Wireless Standards
- Based on ARM9E SOC, 120MHz CPU, 256KB RAM, 2MB/2MB+8MB Flash
- Support UART Data Communication with Wi-Fi or BLE
- Support Wi-Fi STA/AP/AP+STA Mode
- Support BLE SmartBLELink Config
- Support Wi-Fi AP SmartAPLink Config
- Support Wireless and Remote Firmware Upgrade Function
- Support Software SDK for Develop
- Support Internal PCB or External IPEX Antenna Option
- Single +3.3V Power Supply for HF-LPC300, HF-LPC330)
- Single +5V Power Supply for HF-LPC305
- Size:
HF-LPC330:22mm x 15.6mm x 8mm，DIP10
HF-LPC305：41.3mm x 24.1mm x 6mm, 4Pin 2.54mm connectoer
| Key Feature | Low Power SDK Support SmartLink Config Small Size Strong Signal Strength Lowest Price |
| Processor | ARM9E |
| Basic Frequency | 120MHz |
| Operating System | alios |
| Wi-Fi Standard | 802.11bgn BLE4.2 |
| Temp. Range | -20℃- 125℃ |
| Internal Antenna | √ |
| I-PEX Connector | √ |
| Size (mm) | 41.3mm x 24.1mm x 6mm |
| Package Type | 2x4 Connector |
| Work Voltage | 4.7~6V |
| Current @No data | ~25mA |
| Current @Tx Peak | ~440mA |
| Resource-Flash | 1M/2M/8M |
| Resource-RAM | 256KB |
| Interface-UART | 2 |
| AP Mode | √ |
| STA Mode | √ |
| AP+STA Mode | √ |
| WPS Function | √ |
| Web Server | √ |
| OTA Upgrade | √ |
| Smart Configure SmartLink V7.X APP | √ |
| Airkiss Configure | √ |
| SDK Support | √ |
- User Guide
-
HF-LPC3X0 Series Wi-Fi_BLE Module User ManualV1.3(20200428)
