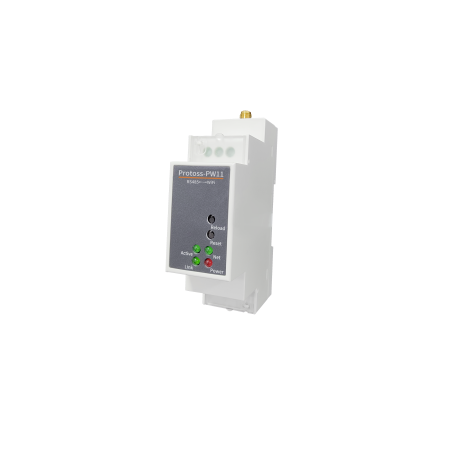

★Protoss-PW11

  • Product Code: Protoss-PW11
Buy Online

Overview of Characteristic

  • Support 802.11bgn Wireless Standard
  • Support STA/AP/AP+STA Mode
  • Support SmartLink V8 Smart Config (Provide APP)
  • Support TCP/UDP/MQTT/HTTP/WebSocket Protocol
  • Support Modbus TCP to RTUModbus Master Function
  • Support RS485 To WiFi Conversion
  • Support Webpage Easy Configuration or PC IOTService Tool
  • Support Security Protocol Such As TLS/AES/DES3
  • Support Heartbeat and Resister Packet Function
  • Support Webpage OTA Wireless Upgrade
  • Support Industrial Temperature: -40 to +85˚ C
  • Multiple Type of Different Power Input:

   Protoss-PW11-H:100~240VAC@50~60Hz

   Protoss-PW11-M:9~48VDC@1A

  • Size: 102.03 x 64.95 x 27.50 mm (L x W x H) ,C45 rail installation
Processor 160MHz
Basic Frequency 160MHz
Flash 2MB
SDRAM 352KB
Operating System mbed
Network Protocol IP,TCP,UDP,DHCP,DNS,HTTP Server/Client,ARP, BOOTP, AutoIP, ICMP,Web socket, Telnet, uPNP, NTP, Modbus TCP
Security Protocol TLS v1.2 AES 128Bit DES3
Network Mode STA/AP/STA+AP
Transmit Power 802.11b: +18dBm(Max.) 802.11g: +16dBm(Max.) 802.11n: +15dBm(Max.)
Receive Sensitivity 802.11b: -89dBm 802.11g: -81dBm 802.11n: -71dBm
Wi-Fi Security WEP64/WEP128/TKIP/ AES
Port Number 1 RS485
Data Bits 7,8
Stop Bit 1,2
Check Bit None,Even,Odd
Baud Rate TTL:600bps~230400bps
Flow Control No Flow control Software Xon/ Xoff flow control
Configuration Web CLI XML import Telnet IOTService PC Software
Size 102.03 x 64.95 x 27.50 mm
Storage Temp. -45 ~ 105°C, 5 ~ 95% RH
Input Voltage Protoss-PW11-H:100~240VAC@50~60Hz Protoss-PW11-M:9~48VDC@1A
Working Current ~200mA
Power <700mW
Wi-Fi Standard 802.11 b/g/n
Work Temp. -40 ~ 85°C
User Guide
IOT_Device_Series_Software_Funtion_20200623 [ Download Times: 13222,  Date Update: 2020-06-23 18:28:00 ]
Protoss-PW11 User ManualV1.1(20200318) [ Download Times: 256,  Date Update: 2020-03-19 13:16:26 ]
HF2211S_EW1X_PW1X_Operation Guide(20200318) [ Download Times: 1724,  Date Update: 2020-03-19 18:08:28 ]
