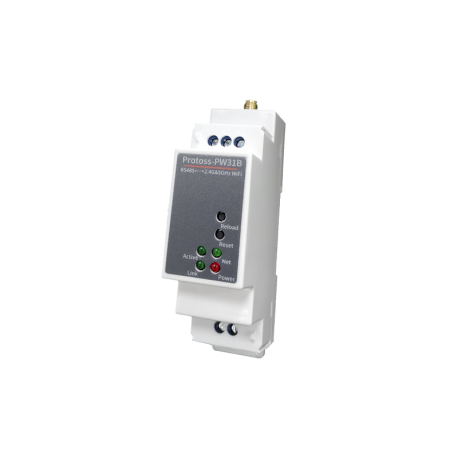

Protoss-PW31B
- Product Code: Protoss-PW31B
Overview of Characteristic
²Support 802.11 a/b/g/n wireless standard, support 2.4GHz and 5GHz dual band operationSupport STA/AP/AP+STA Mode
²Support SmartLink V8 Smart Config (Provide APP)
²Support TCP/UDP/MQTT/HTTP/WebSocket Protocol
²Support Modbus TCP to RTU, Modbus Master Function
²Support RS485 To WiFi Conversion
²Support Webpage Easy Configuration or PC IOTService Tool
²Support Security Protocol Such As TLS/AES/DES3
²Support Heartbeat and Resister Packet Function
²Support Webpage OTA Wireless Upgrade
²Support Industrial Temperature: -40to +70˚ C
²Multiple Type of Different Power Input：
n Protoss-PW31B-H：100～240VAC@50～60Hz
n Protoss-PW31B-M：9～48VDC@1A
n Protoss-PW31B-L：9～24VDC@1A
²Size: 102.03 x 64.95 x 27.50 mm (L x W x H) ，C45 rail installation
| Processor | Andes Core |
| Basic Frequency | 160MHz |
| Flash | 2MB |
| SDRAM | 352KB |
| Operating System | FreeRTOS |
| Network Protocol | IP，TCP，UDP，DHCP，DNS，HTTP Server/Client，ARP， BOOTP， AutoIP， ICMP，Web socket， Telnet， uPNP， NTP， Modbus TCP |
| Security Protocol | TLS v1.2 AES 128Bit DES3 |
| Network Mode | STA/AP/STA+AP |
| Wi-Fi Security | WEP64/WEP128/TKIP/ AES |
| Port Number | 1 RS485 |
| Data Bits | 7，8 |
| Stop Bit | 1，2 |
| Check Bit | None，Even，Odd |
| Baud Rate | TTL：600bps~230400 bps |
| Flow Control | No Flow control Software Xon/ Xoff flow control |
| Configuration | Web CLI XML import Telnet IOTService PC Software |
| Size | 102.03 x 64.95 x 27.50 mm |
| Storage Temp. | -40 ~ 85°C， 5 ~ 95% RH |
| Input Voltage | Protoss-PW31B-H：100～240VAC@50～60Hz Protoss-PW31B-M：9～48VDC@1A Protoss-PW31B-L：9～24VDC@1A |
| Working Current | ~200mA |
| Power | <700mW |
| Wi-Fi Standard | 802.11 a/b/g/n |
| Work Temp. | -40 ~ 70°C |
