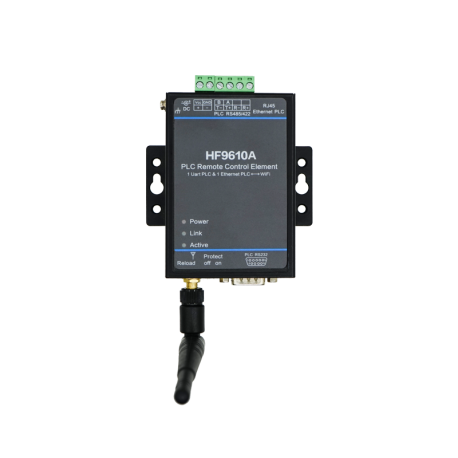

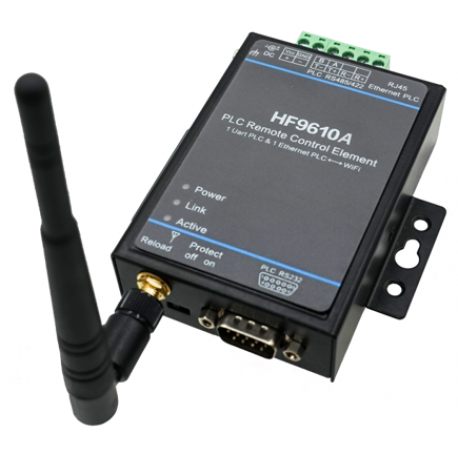

HF9610A

  • Product Code: HF9610A
Buy Online

Overview of Characteristic

²MIPS MCU with 4MB Flash and 8MB SRAM. Run on eCos

²Support Virtual COM, Virtual Path Connect to PLC for Remote Monitor

²Support TCP/IP/Telnet /Modbus TCP Protocol

²Support RS232/RS422/RS485 to Ethernet/Wi-Fi Conversion, Serial Speed Upto 230400 bps

²Support STA/AP/AP+STA Mode

²Support Router or Bridge Network Working Mode.

²Support Easy Configuration Through a Web Interface or PC IOTService Tool

²Support Security Protocol Such As TLS/AES/DES3

²Support  Web OTA Wirelss Upgrade

²Wide DC Input 5~36VDC

Size: HF9610A: 95 x 65 x 25 mm

Frequency Range 2.412GHz-2.484GHz
Receiver Sensitivity 802.11b: -89dBm 802.11g: -81dBm 802.11n: -71dBm
Collocation Method Web CLI IOTService PC Software
Basic Frequency 320MHz
Flash 4MB
SDRAM 8MB
Operating System eCos
Interface Standard RS232: DB9 RS485/RS422: 5.08mm connector Support one channel of RS232/RS422/RS485
Protection 8KV Isolation
Network Protocol IP,TCP,UDP,DHCP,DNS,HTTP Server/Client,ARP, BOOTP, AutoIP, ICMP,Web socket, Telnet,uPNP, NTP,Modbus TCP
Security Protocol TLS v1.2 AES 128Bit DES3
Standard 802.11 b/g/n
Network Mode STA/AP/STA+AP
Transmit Power 802.11b: +20dBm (Max.) 802.11g: +18dBm (Max.) 802.11n: +15dBm (Max.)
Antenna Interface 3dBi Stick Antenna
Port Number 1 RS232/RS485/RS422
Data Bits 8
Stop Bit 1,2
Check Bit None,Even,Odd
Baud Rate TTL: 300 bps~230400bps
Flow Control No Flow Control Hardware RTS/CTS、DSR/DTR Software Xon/ Xoff flow control
Size 95mm x 65mm x 25mm
Input Voltage 5~36VDC
Working Current ~200mA
Power <700mW
Work Temp. -25 ~ 85°C
Storage Temp. -45 ~ 105°C, 5 ~ 95% RH(no condensation)
User Guide
HF9610A User ManualV1.0(20210816) [ Download Times: 298,  Date Update: 2021-08-17 18:15:09 ]
IOT_Device_Series_Software_Funtion_20210817 [ Download Times: 1022,  Date Update: 2021-08-17 18:16:12 ]
PW2X_HF2211_HF2221_HF9610 Operation Guide 20210817 [ Download Times: 1072,  Date Update: 2021-08-17 18:17:28 ]
