★Elfin-EE10C&Elfin-EE11C&Elfin-EE12C

  • Product Code: Elfin-EE10C&Elfin-EE11C&Elfin-EE12C
Buy Online

Overview of Characteristic

  • Cortex-M3 MCU with 2MB Flash and 128KB SRAM
  • Use FreeRTOS Operation System
  • Support TCP/IP/Telnet /Modbus TCP Protocol
  • Support RS232/RS485 To 10/100M Ethernet Conversion, Serial Speed Up to 460800 bps
  • Support 10/100M Ethernet Auto-Negotiation
  • Support Webpage Easy Configuration or PC IOTService Tool
  • Support Security Protocol Such As TLS/AES/DES3
  • Support Heartbeat and Resister Packet Function
  • Support Webpage OTA Wireless Upgrade
  • Support Industrial Temperature: -40 to +85˚ C
  •  Wide DC
          Elfin-EE10C，Elfin-EE11C，Elfin-EE12C：5～36VDC
  • Size: 61 x 26 x 17.8 mm (L x W x H)

StorageTemp. -45 ~ 105°C， 5 ~ 95% RH
Processor Cortex-M3
Basic Frequency 96MHz
Flash 2MB
SDRAM 128KB
Operating System FreeRTOS
Ethernet 1
Interface Standard 10/100M Base-T Auto-Negotiation
Network Protocol IP，TCP，UDP，DHCP，DNS，HTTP Server/Client，ARP， AutoIP， ICMP， Telnet，NTP， Modbus TCP
Security Protocol TLS 1.2 AES 128Bit DES3

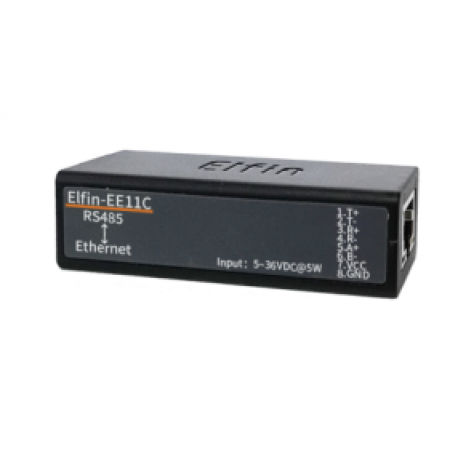

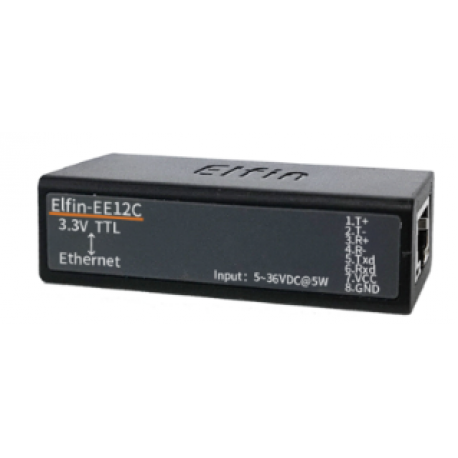

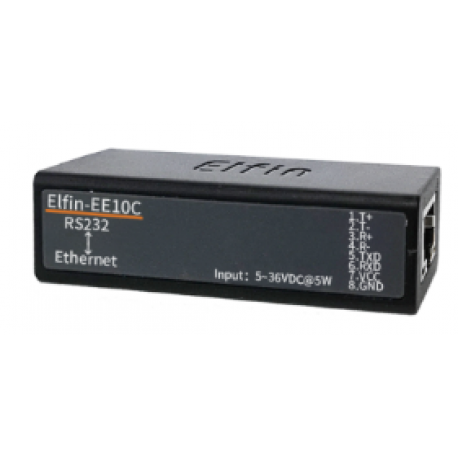

Port Number EE10C：1 RS232 EE11C：1 RS485 EE12C：1 3.3TTL
Data Bits 5，6，7，8
Stop Bit 1，2
Check Bit None，Even，Odd
Baud Rate TTL：600 bps~460800bps
Flow Control No Flow Control Half Flow Control(RS485) Software Xon/ Xoff flow control
Configuration Http Web Configuration Customization of HTTP Web Pages
Size 61 x 26 x 17.8 mm
Input Voltage 5～18VDC/5~36VDC
Power <400mW
Network Transformer Integrated
Work Temp. -40 ~ 85°C
User Guide
IOT_Device_Series_Software_Funtion_20250328 [ Download Times: 55385,  Date Update: 2025-11-06 15:45:30 ]
PE1X_EE1X_HF51XX_Eport_Operation Guide_20200402 [ Download Times: 18693,  Date Update: 2025-11-06 15:47:01 ]
Elfin-EE1XC User ManualV1.0(20250813) [ Download Times: 100,  Date Update: 2025-11-07 13:28:54 ]
