Elfin-EG11&Elfin-EG10

  • Product Code: Elfin-EG11&Elfin-EG10
Buy Online

The Elfin-EG1X series support RS232/RS485 to GPRS, Elfin-EG1X unit is a complete solution for serial port device connecting to network. This powerful device supports a reliable and proven operating system stored in flash memory, an embedded web server, a full TCP/IP protocol stack,and standards-based (AES) encryption.

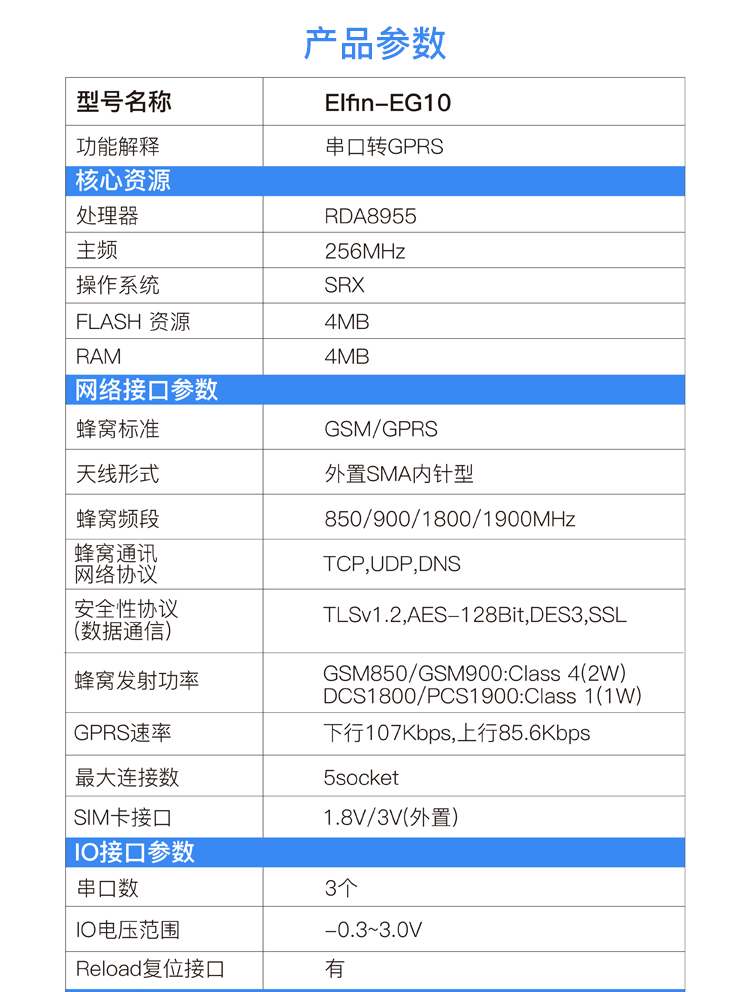

Internet Type GSM/GPRS
Data Rate 85.6Kbps (DL,UL)
Frequency 850/ 900/1800/1900MHz
Multi-Slot Class GPRS Class 12
Terminal Device Class Class B
Coding Schemes CS1,CS2,CS3,CS4
Max Transmit Power GSM850/GSM900: Class 4(2W) DCS1800/PCS1900: Class 1(1W)
Application AT Command
Network Protocol TCP/UDP

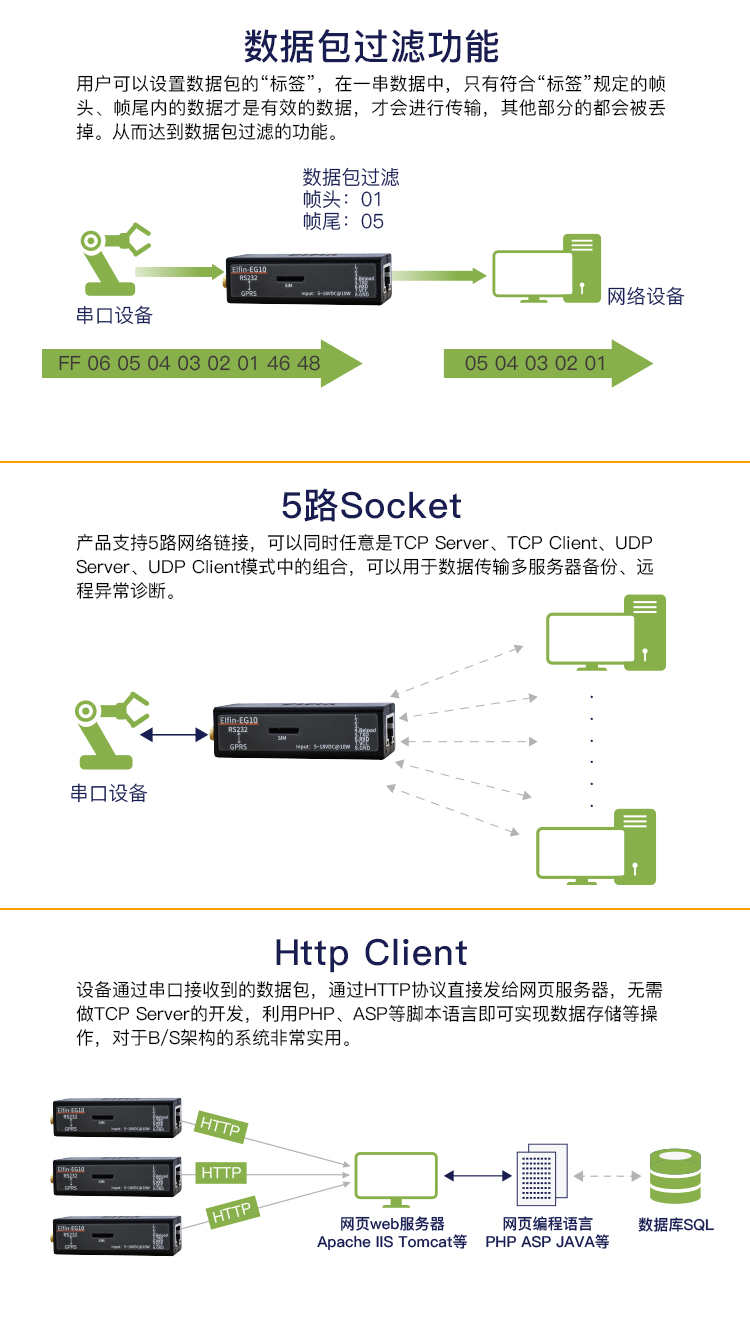

Max Link 5
SIM Card 1.8V/3V
Antenna Interface SMA

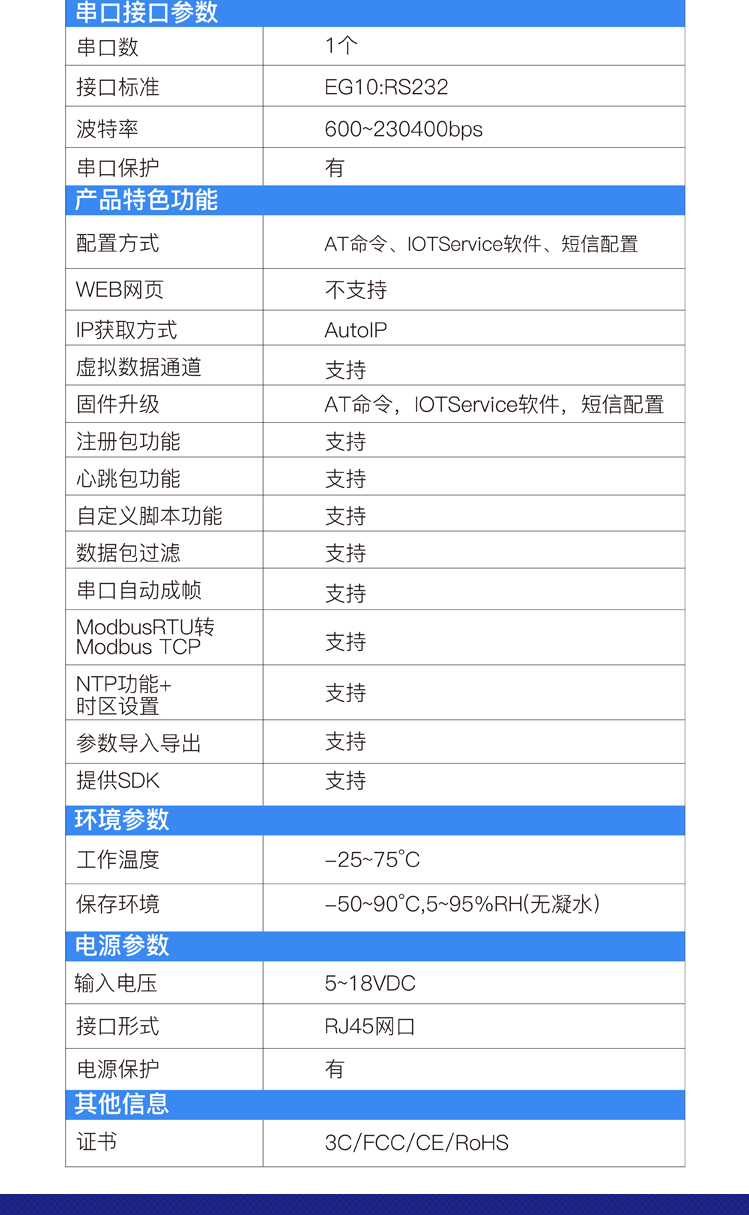

Port Interface 1
Data Bits 7,8
Stop Bit 1,2
Charity Bit None,Even,Odd
Flow Control No Flow control Hardware RTS/CTS、DSR/DTR Software Xon/ Xoffflow control
Buffer 1400KB

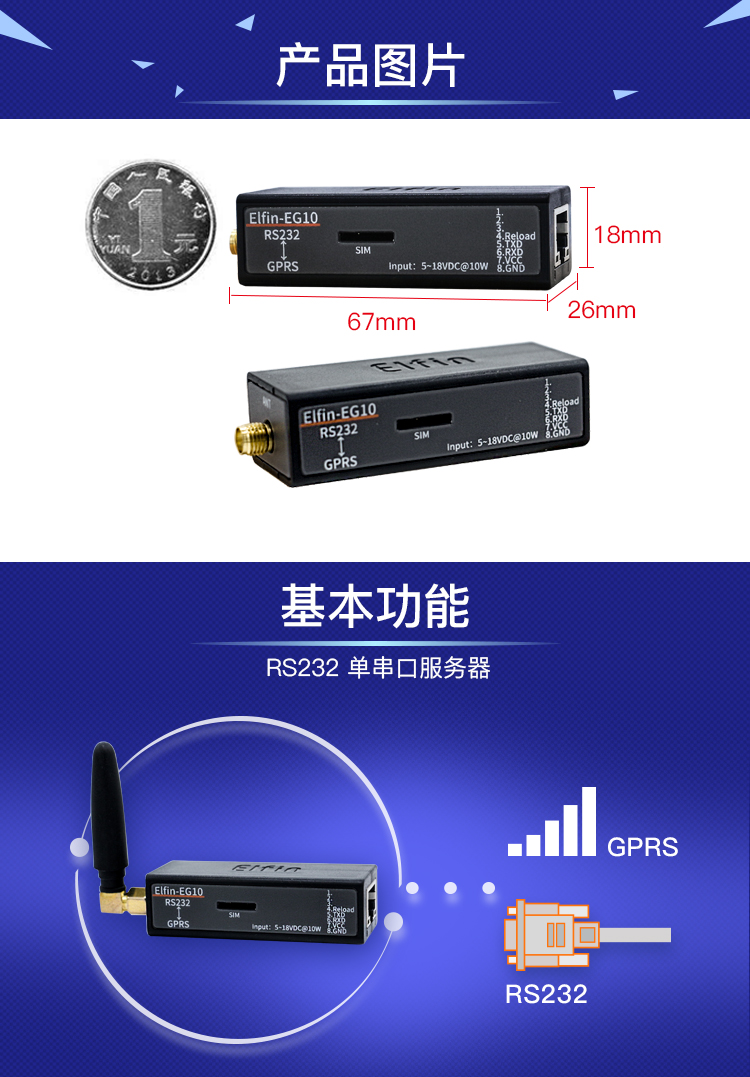

Size 61 x 26 x 17.8mm
Input Voltage 5V~18VDC
Work Current ~300mA
Power GSM 850:82~189mA EGSM 900:83~203mA DCS 1800:78~150mA PCS 1900:78~136mA
User Guide
Elfin-EG1X User Manual V1.3(20200415) [ Download Times: 1149,  Date Update: 2020-04-20 09:23:17 ]
4G_2G_NB DTU Products Functions _V2.0_20200219 [ Download Times: 1732,  Date Update: 2020-02-19 19:19:06 ]
4G_2G_NB Products Operation Guide_20200424 [ Download Times: 1862,  Date Update: 2020-04-26 09:13:55 ]
