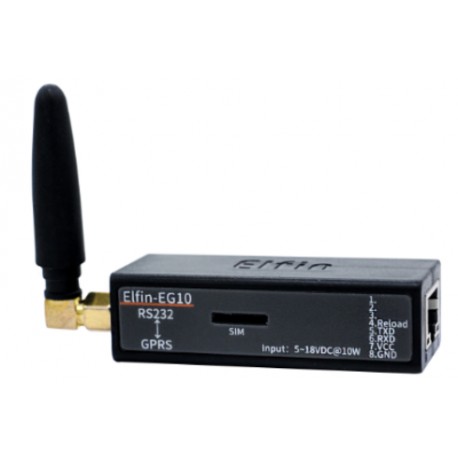

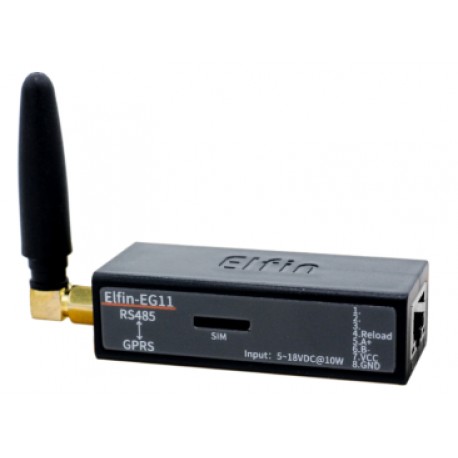

Elfin-EG11&Elfin-EG10

Product Code: Elfin-EG11&Elfin-EG10

Buy Online

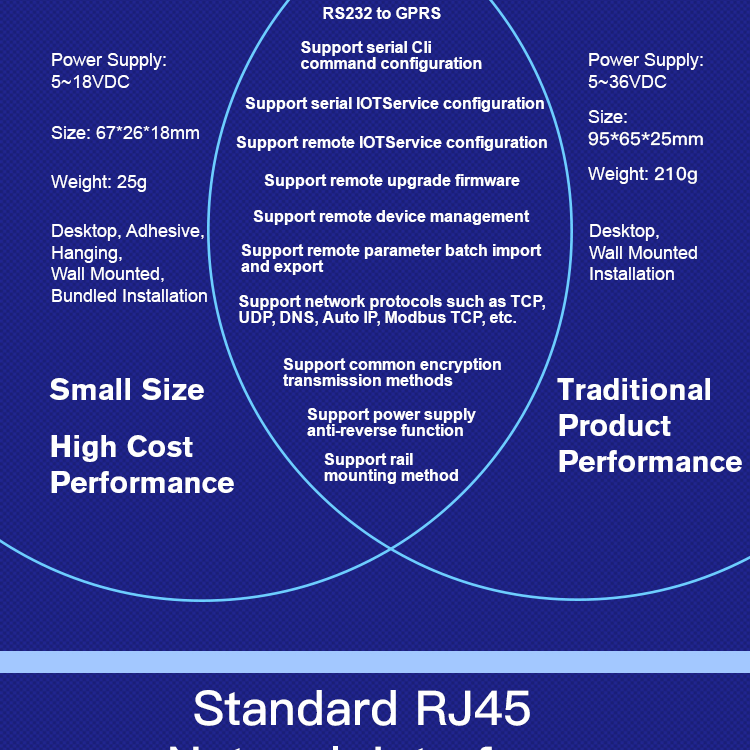

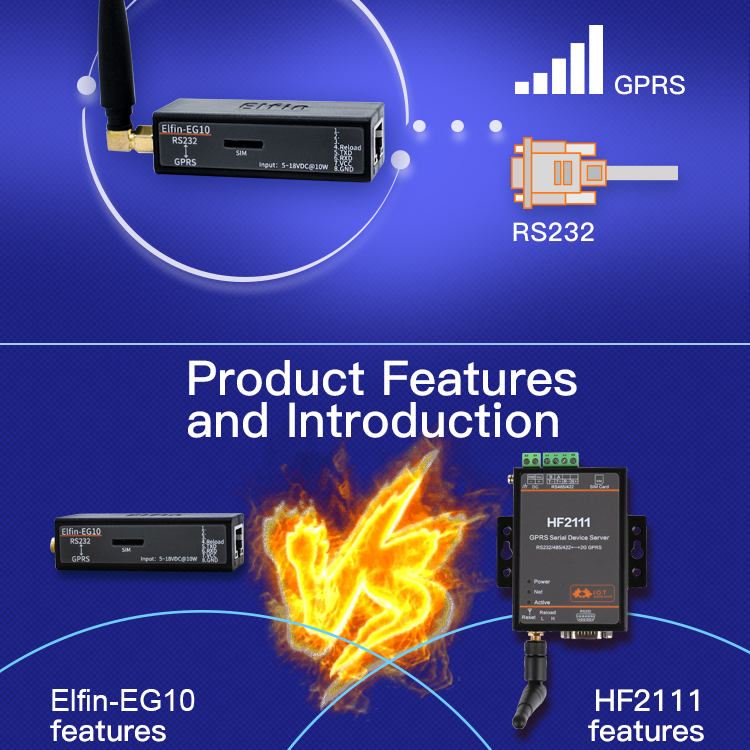

The Elfin-EG1X series support RS232/RS485 to GPRS, Elfin-EG1X unit is a complete solution for serial port device connecting to network. This powerful device supports a reliable and proven operating system stored in flash memory, an embedded web server, a full TCP/IP protocol stack,and standards-based (AES) encryption.

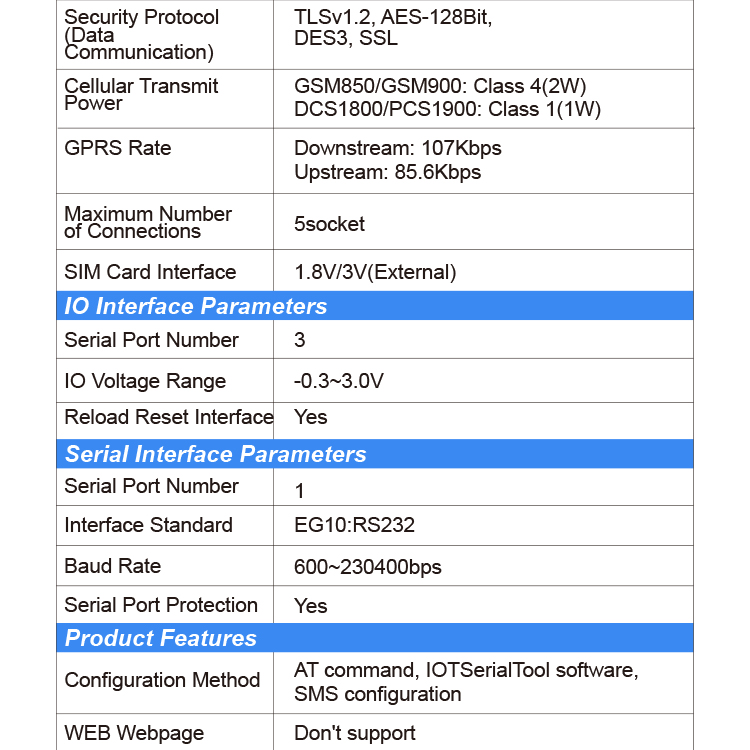

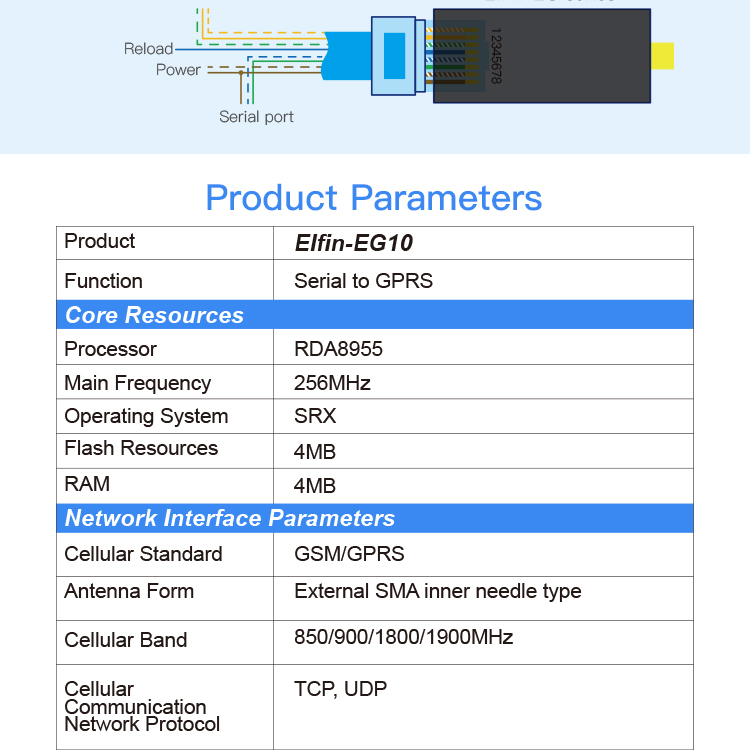

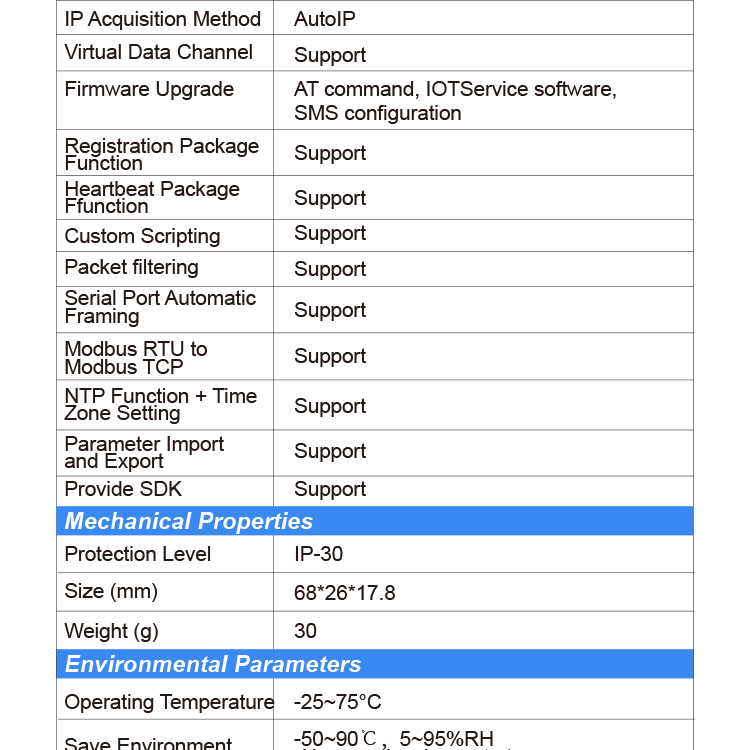

Internet Type	GSM/GPRS
Data Rate	85.6Kbps (DL,UL)
Frequency	850/ 900/1800/1900MHz
Multi-Slot Class	GPRS Class 12
Terminal Device Class	Class B
Coding Schemes	CS1，CS2，CS3，CS4
Max Transmit Power	GSM850/GSM900: Class 4(2W) DCS1800/PCS1900: Class 1(1W)
Application	AT Command
Network Protocol	TCP/UDP
Max Link	5
SIM Card	1.8V/3V
Antenna Interface	SMA
Port Interface	1
Data Bits	7，8
Stop Bit	1，2
Charity Bit	None，Even，Odd
Flow Control	No Flow control Hardware RTS/CTS、DSR/DTR Software Xon/ Xoffflow control
Buffer	1400KB

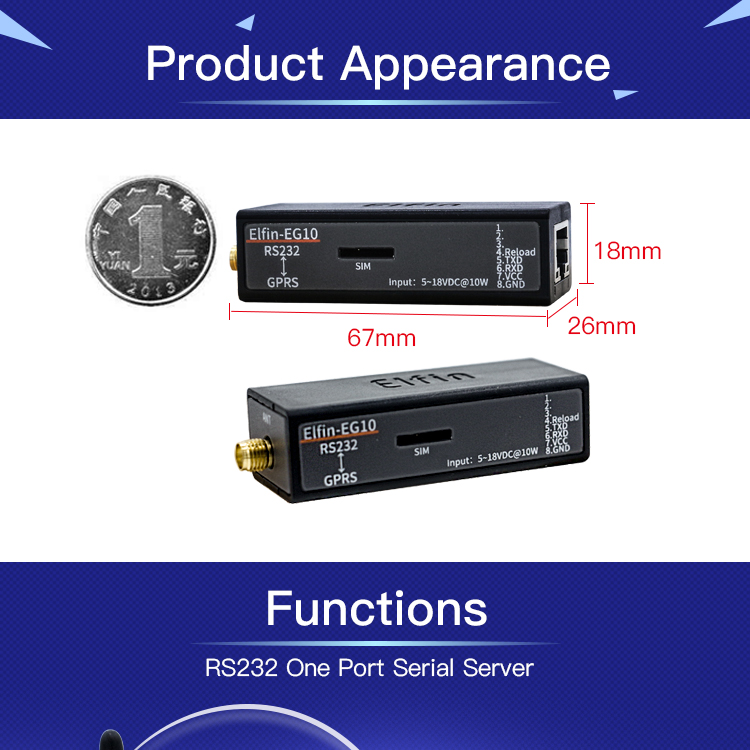

Size	61 x 26 x 17.8mm

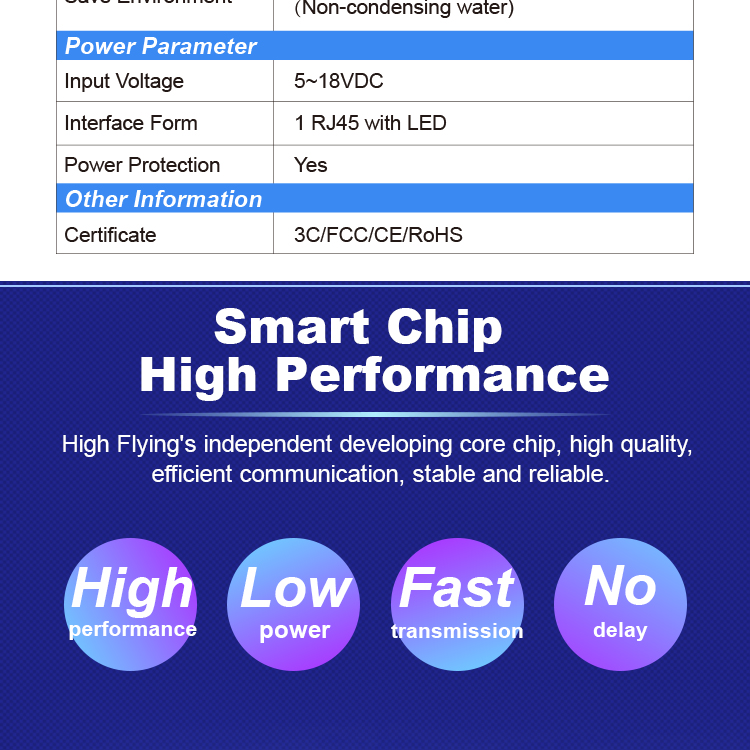

Input Voltage	5V～18VDC
Work Current	～300mA
Power	GSM 850：82～189mA EGSM 900：83～203mA DCS 1800：78～150mA PCS 1900：78～136mA

User Guide: Elfin-EG1X User Manual V1.3(20200415) [ Download Times: 2272, Date Update: 2020-04-20 09:23:17 ]
: 4G_2G_NB DTU Products Functions _V2.1_20241127 [ Download Times: 7177, Date Update: 2024-11-27 13:51:20 ]
: 4G_2G_NB Products Operation Guide_20241127 [ Download Times: 8242, Date Update: 2024-11-27 13:53:05 ]
