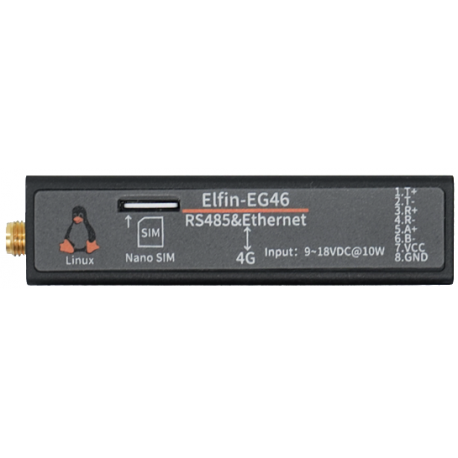

★Elfin-EG46

  • Product Code: Elfin-EG46
Buy Online

Overview of Characteristic

² Use MIPS MCU (32MB SRAM) and 16MB Flash, based on Linux OS

² Support LTE-TDD, LTE-FDD, WCDMA, TD-SCDMA, cellular network, sub-type to support specific cellular network

² Support RS485 to 4G Data Transmission, UART baud rate Up to 460800bps

² Support 10/100M Ethernet to 4G Data Transmission

² Supports Max 5 Channel TCP/UDP connections, Each Connection Supports 1400 Bytes of Data Cache

² Support Multiple Working Modes: Network Transparent Transmission Mode, HTTP Mode, MQTT

² Support Modbus Master Function

² Support IOTService Tool, Remotely and Dynamically Modify Module Parameters

² Support APN

² Supports Registration Packet, Heartbeat Packet Function, and Packet Supports Combination of ICCID, IMEI, IMSI, Software Version, cellular network Connection Status.

² Support NTP

² Support Modbus TCP to Modbus RTU

² Support IOTBridge for Remote Control and Config.

² Support IOTBridge working time, for example only works from 10:00 to 10:30 to save the data flow charge.

² Support Network OTA Upgrade Firmware.

² Size: 68.5 x 35 x 17.8mm

² Wide Power Supply

 9~18DC@1A

User Guide
IOT_Device_Series_Software_Funtion_20200623 [ Download Times: 45006,  Date Update: 2020-06-23 18:28:00 ]
PG46_EG46_Operation Guide_20200601 [ Download Times: 2092,  Date Update: 2020-06-04 18:27:26 ]
Elfin-EG46 User Manual V1.4(20211118) [ Download Times: 653,  Date Update: 2021-11-18 20:11:44 ]
