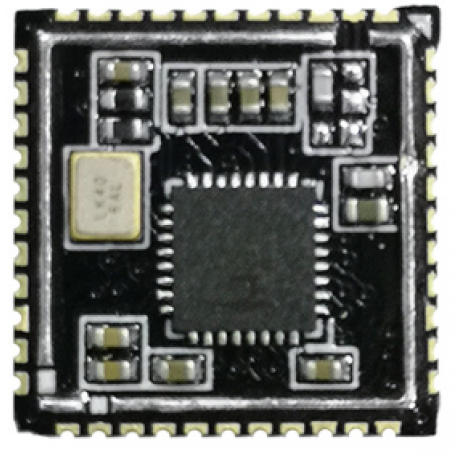

★HF-LPS170
- Product Code: HF-LPS170
Overview of Characteristic
- Support Wi-Fi IEEE802.11b/g/n Wireless Standards
- Based on RISC SOC, 160MHz CPU, 276KB RAM, 2MB Flash or None Flash
- Support SDIO Interface, Provide Linux Driver(Kernel Require 3.10 Above)
- Single +3.3V Power Supply，Selective 1.8V or 3.3V SDIO Voltage
- Size: 12mm x 12mm, SMT44
| Wireless Standard | 802.11 b/g/n |
| Frequency Range | WiFi：2.412GHz-2.472GHz |
| StorageTemp. | -40℃- 125℃ |
| Processor | 32-bit RISC CPU with FPU |
| Basic Frequency | 160MHz |
| Size (mm) | 12mm x 12mm |
| Package Type | SMT44 |
| Work Voltage | 2.6~3.6V |
| Resource-Flash | 2M |
| Resource-RAM | 276KB |
| Work Temp. | -40℃- 85℃ |
- User Guide
-
BL602_Linux_SDIO Driver
[ Download Times:
122 , Date Update: 2022-12-09 12:22:46 ] -
HF-LPS170 Wi-Fi_BLE Module User Manual-V1.5(20221209)
[ Download Times:
172 , Date Update: 2022-12-09 12:24:17 ]
- Application Notes
-
HF-LPS170_EVK
[ Download Times:
248 , Date Update: 2020-09-27 10:03:55 ]
