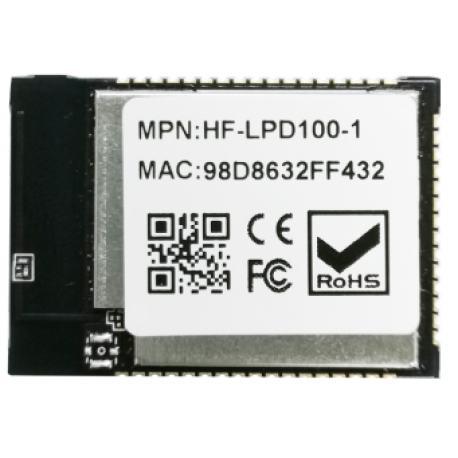

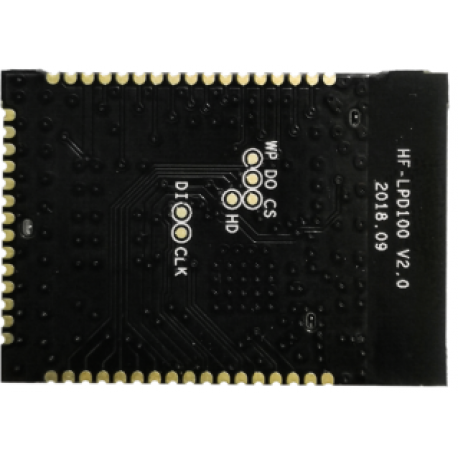

HF-LPD100

  • Product Code: HF-LPD100
Buy Online

Overview of Characteristic

  • Support IEEE802.11 a/b/g/n Wireless Standards, work in 2.4GHz and 5GHz dual band
  • Based on Andes Core, 160MHz CPU, 192KB RAM, 2MB Flash
  • Support UART Data Communication Interface
  • Support Work As STA/AP/APSTA Mode
  • Support Sniffer Method SmartLink V8 Config
  • Support SoftAP Method SmartAPLink Config
  • Support WeChat Airkiss 2.0
  • Support Wireless and Remote Firmware Upgrade Function
  • Support Software SDK for Develop
  • Support Different Antenna Option
  • HF-LPD100：Internal PCB or External 3rd Generation IPEX
  • HF-LPD130：External 1st Generation IPEX
  • Single +3.3V Power Supply
  • FCC/CE/SRRC/RoHS Certificated (TBD)

Device Paremeters

　Class
Item
Parameters
Wireless Parameters
Certification
TBD

Wireless standard
2.4GHz：802.11 b/g/n
5GHz：802.11 a

Frequency range
2.412GHz-2.484GHz(CH1,13)
5.17GHz-5.25GHz(CH36,40,44,48) U-NII-1
5.25GHz-5.35GHz(CH52,56,60,64) U-NII-2
5.725GHz-5.835GHz(CH149,153,157,161,165) U-NII-3

2.4G Transmit Power
802.11b: +18dBm (@11Mbps)


802.11g: +16dBm (@54Mbps)


802.11n: +15dBm (@HT20, MCS7)

5G Transmit Power
13.5dBm (OFDM 54Mbps)


13.5dBm (HT20 MCS7)


13dBm (HT40 MCS7)

2.4G Receiver Sensitivity
802.11b: -87.5 dBm (@11Mbps ,CCK)


802.11g: -73.5 dBm (@54Mbps, OFDM)


802.11n: -72.5 dBm (@HT20, MCS7)

5G Receiver Sensitivity
-73.5dBm (@54Mbps ,OFDM)


-72 dBm (HT20,MCS7)

Antenna Option
HF-LPD100:
Internal: PCB antenna
External: 3rd Generation IPEX antenna
HF-LPD130:
External: 1st  Generation IPEX antenna
Hardware
Parameters
Data Interface
UART


GPIO

Operating Voltage
2.1~3.46V

Operating Current
Peak (Continuous TX): 330mA
Average(STA, No data): 30mA(TBD)

Operating Temp.
-40℃- 85℃

Storage Temp.
-40℃- 125℃

Density
<85%

Dimensions and Size
HF-LPD100: 23.1mm x 32.8mm x 3.5mm
HF-LPD130: 22mm x 14.3mm x 8mm
Software Parameters
Network Type
STA/AP/AP+STA

Security Mechanisms
WEP/WPA-PSK/WPA2-PSK

Encryption
WEP64/WEP128/TKIP/AES

Update Firmware
Local Wireless, Remote OTA

Customization
Support SDK for application develop

Network Protocol
IPv4, TCP/UDP/HTTP/TLS(SDK)

User Configuration
AT+instruction set. Android/ iOS
SmartLink APP tools


HF-LPD100

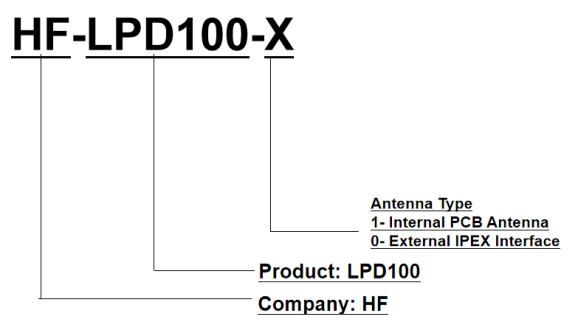

Base on customer detailed requirement, HF-LPD100 series modules provide different variants and physical type for detailed application.

Frequency Range 2.4GHz：802.11 b/g/n 5GHz：802.11 a
StorageTemp. Storage Temp -40℃- 125℃
Processor Andes Core
Basic Frequency 160MHz
Operating System FreeRTOS
Wi-Fi Standard 802.11 a/b/g/n
I-PEX Connector √
Size (mm) 23.1mm x 32.8mm x 3.5mm
Package Type SMT48
Work Voltage 2.1~3.46V
Current @No data ~27mA
Current @Tx Peak ~260mA
Resource-Flash 2M
Resource-RAM 192KB RAM
Interface-UART 1
Interface-PWM 5
Interface-GPIO √
AP Mode √
STA Mode √
AP+STA Mode √
WPS Function √
Web Server √
OTA Upgrade √
Smart Configure SmartLink V7.X APP √
SDK Support √
Work Temp. Operating Temp -40℃- 85℃
