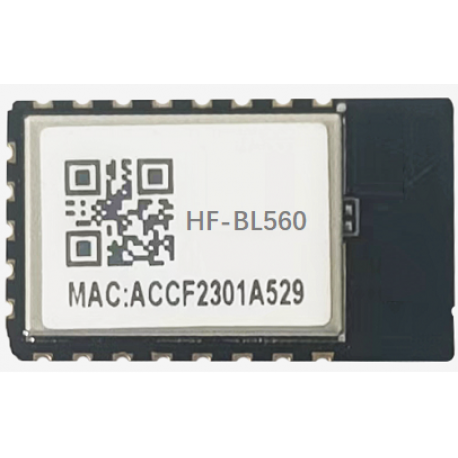

★HF-BL560
- Product Code: HF-BL560
Overview of Characteristic
² Support BLE5.0 Standard. Max 2Mbps Data Rate
² Integrate RISC MCU, 48MHz CPU, 56KB RAM, 512KB Flash
² Support Wireless OTA Upgrade
² UART Transparent Transmit Module
² Supper Low Sleep Mode, 80uA/1s. Excellence Power Save Scheme Suitable for Battery-Powered Applications
² Support Internal PCB or External IPEX Antenna
² Single 1.8V~4.3V Power Supply
² Size: 22.5mm x 13.5mm x 3mm
Size | 22.5mm x 13.5mm x 3mm |
Wireless Standard | 802.15.1 |
Frequency Range | 2.402GHz~2.480GHz |
Transmit Power | Max=+10 dBm |
Receiver Sensitivity | -97 dBm |
Data Interface | UART PWM ADC |
Operating Voltage | 1.8~4.3V |
Deep Sleep Current | 80uA |
Operating Temp. | -40℃- 125℃ |
StorageTemp. | -45℃- 125℃ |
- User Guide
-
HF-BL560 Operation Guide_20221202
[ Download Times:
174 , Date Update: 2022-12-05 17:44:13 ] -
HF-BL560 BLE Module User Manual_V1.2(20230831)
[ Download Times:
141 , Date Update: 2024-04-23 18:42:35 ]
