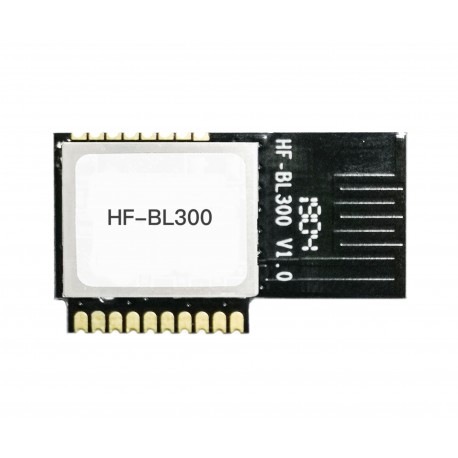

HF-BL300
- Product Code: HF-BL300
Overview of Characteristic
- Support BLE5.0 Standard. Max 2Mbps Data Rate
- Support Wireless OTA Upgrade
- UART Transparent Transmit Module
- Support SIG Mesh
- Supper Low Sleep Mode, 3.5uA. Excellence Power Save Scheme Suitable for Battery-Powered Applications
- Support Internal Antenna
- Single 1.8V~3.6V Power Supply
- Size: 26mm x 14.5mm
Size | 26mm x 14.5mm |
Wireless Standard | 802.15.1 |
Frequency Range | 2.402GHz~2.480GHz |
Transmit Power | Max=+10 dBm |
Receiver Sensitivity | -93 dBm |

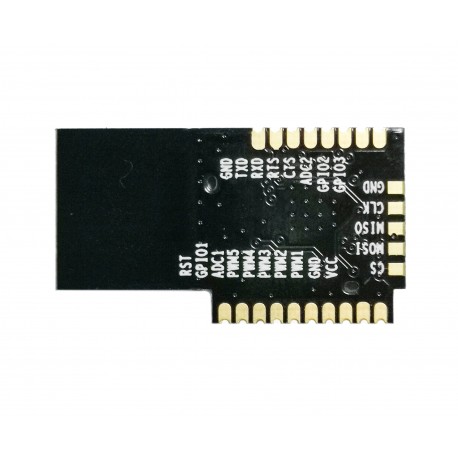

Data Interface | UART SPI I2C PWM ADC |
Operating Voltage | 1.8~3.6V |
Operating Current | 20mA |
Deep Sleep Current | 3~11uA |
Operating Temp. | -40℃- 125℃ |
StorageTemp. | -45℃- 125℃ |
- User Guide
-
HF-BL300_EVK_20190729
[ Download Times:
273 , Date Update: 2019-07-29 18:10:22 ] -
HF-BL300 Operation Guide_20190411
[ Download Times:
203 , Date Update: 2020-09-29 09:15:10 ] -
HF-BL300 User Manual_V1.2(20201103)
[ Download Times:
265 , Date Update: 2020-11-03 13:16:55 ]
