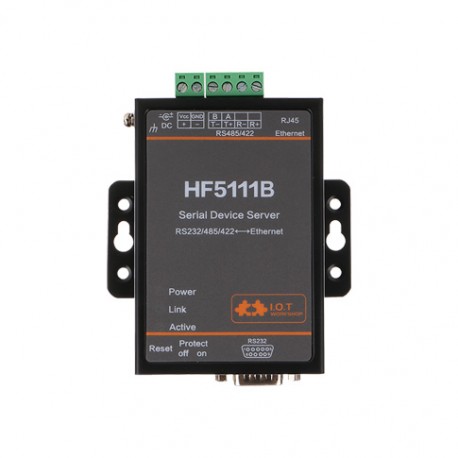

★HF5111B
- Product Code: HF5111B
Overview of Characteristic
² MIPS MCU with 2MB Flash and 128KB SRAM
² Use FreeRTOS Operation System
² Support TCP/IP/Telnet/Modbus TCPProtocol
² Support Serial To 10M Ethernet Conversion, Serial Speed Upto 460800 bps
² Support 10/100M Ethernet Auto-Negotiation
² Support Easy ConfigurationThrough a Web Interface
² Support Security ProtocolSuch AsSSL/AES/DES3
² Support Web OTA Wirelss Upgrade
² Support Industrial Temperature:-40 to +85˚ C
² Wide DC Input 5~36VDC or 9~50VDC
² Size: 94 x65x 25 mm(L x W x H)
Single UART Ethernet Serial Server, It have three Ethernet port include RS232/RS485/RS422. To achieve two way transparent transmission between serial and Ethernet, ModbusRTU also can transferred to ModbusTCP.
1、Φ5.5mm DC plug and 5mm two wire terminal power supply mode;
2、RS422 is four wire 5mm terminal, RS485 is two wire 5mm terminal,Can connect with grounding wire and improve anti-interference;
3、Power status, network status, data transceiver indicator;
4、The shell contain grounding terminal, To protect internal components and against lightning damage.
All the components are industry standard, Products passed high-low temperature test chamber -40~85℃, RS485/RS422 increase: Lightning protection, fuse overcurrent protection, TVS anti-static protection; Ethernet port have 8KV Isolation;
Product passed:CE、FCC、ROHS certificates
Main control use HF MC200、MC102 industry grade solution, Frequency more than 320M! The product enjoy cost effective price and stability performance. Wide DC Input 5~36VDC.
Processor | Cortex-M3 |
Basic Frequency | 96MHz |
Flash | 2MB |
SDRAM | 128KB |
Operating System | FreeRTOS |
Interface Standard | RJ45 |
Rate | 10/100M |
Protection | 8KV electromagnetism isolation, shell insulation blocking |
Network Protocol | IP,TCP,UDP,DHCP,DNS,HTTP,ARP,ICMP,Web socket,Httpd client,ModbusTCP,NTP |
Security Protocol | Client :SSL v3(2048bit) Encryption:AES-CCMP、3DES Authentication:SHA-1、MD5、Base-64 |
Port Number | 1 (RS232、RS485、RS422) |
Interface Standard | RS232:DB9 pin type, RS485:2 wire(A+,B-), RS422:4 wire(T+,T-,R+,R-) |
Data Bits | 5,6,7,8 |
Stop Bit | 1,2 |
Check Bit | None,Even,Odd,Space,Mark |
Baud Rate | 600 bps~921600 bps |
Flow Control | RTS/CTS |
Buffer | 4K |
Configuration | Built-in webpage:Http Computer set-up software:IOTManager Serial command: CLI Support configuration record:Log Remote Configuration:Telnet |
Virtual Serial | Windows, XP/Vista, 7, 8,10 Server 2003/2008/2012 |
Size | 95 x 65 x 25(mm) |
Operating Temp. | -40 ~ 85°C |
Storage Temp. | -45 ~ 105°C, 5 ~ 95% RH(no condensation) |
Input Voltage | DC 5~36V |
Working Current | ~170mA |
Power | <1W |
Warranty | 3 year |
Accessory | 1* 5V/1A Power Adapter 1* Ethernet Cable |
