HF5111A

  • Product Code: HF5111A
Buy Online

Overview of Characteristic

²  MIPS MCU with 16MB Flash and 32MB SRAM

²  Use Linux Operation System

²  Support TCP/IP/Telnet/Modbus TCPProtocol

²  Support Serial To 10/100M Ethernet Conversion, Serial Speed Upto 460800 bps

²  Support 10/100M Ethernet Auto-Negotiation

²  Support Easy ConfigurationThrough a Web Interface

²  Support Security ProtocolSuch AsSSL/AES/DES3

²  Support  Web OTA Wirelss Upgrade

²  Wide DC Input 5~36VDC or 9~50VDC

²  Size: 94 x65x 25 mm(L x W x H)

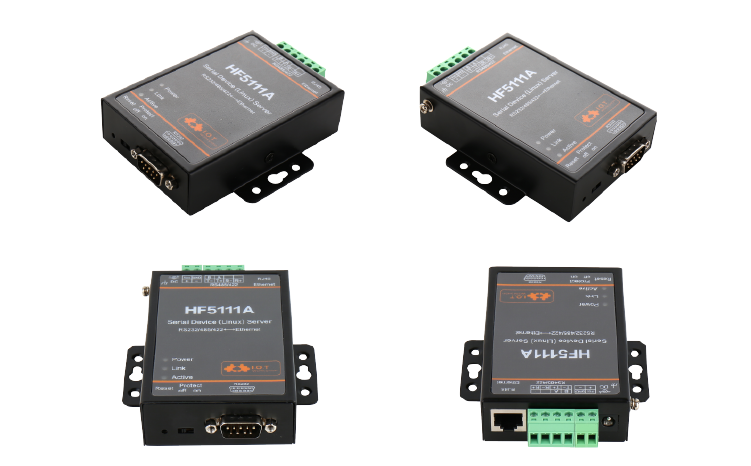

Single UART Ethernet Serial Server, It have three Ethernet port include RS232/RS485/RS422. To achieve two way transparent transmission between serial and Ethernet,  ModbusRTU also can transferred to ModbusTCP.



1、Φ5.5mm DC plug and 5mm two wire terminal power supply mode;

2、RS422 is four wire 5mm terminal, RS485 is two wire 5mm terminal,Can connect with grounding wire and improve anti-interference;

3、Power status, network status, data transceiver indicator;

4、The shell contain grounding terminal, To protect internal components and against lightning damage.



All the components are industry standard, Products passed high-low temperature test chamber -40~85℃, RS485/RS422 increase: Lightning protection, fuse overcurrent protection, TVS anti-static protection;  Ethernet port have 8KV Isolation;

Product passed:CE、FCC、ROHS certificates



Main control use HF MC200、MC102 industry grade solution, Frequency more than 320M! The product enjoy cost effective price and stability performance. Wide DC Input 5~36VDC.




Processor MIPS
Basic Frequency 380MHz
Flash 16MB
SDRAM 32MB
Operating System Linux
Ethernet
Interface Standard RJ45
Rate 10/100M
Protection 15KV electromagnetism isolation, shell insulation blocking
Network Protocol IP,TCP,UDP,DHCP,DNS,HTTP,ARP,ICMP,Web socket,Httpd client,ModbsTCP,NTP,SNMP
Security Protocol Client :SSL v3(2048bit) Encryption:AES-CCMP、3DES Authentication:SHA-1、MD5、Base-64
Receive Buffer 4K
Port Number 1 port(RS232\RS485\RS422)
Interface Standard RS232:DB9 pin type, RS485:2 wire(A+,B-), RS422:4 wire(T+,T-,R+,R-)
Data Bits 8
Stop Bit 1
Check Bit None,Even,Odd,Space,Mark
Baud Rate 600 bps~460800 bps
Flow Control RTS/CTS
Buffer 4K
Configuration Built-in webpage:Http Computer set-up software:IOTManager Serial command: CLI Support configuration record:Log Remote Configuration:Telnet
Virtual Serial Windows, XP/Vista, 7, 8,10 Server 2003/2008/2012
Size 95 x65 x 25(mm)
Operating Temp. -40 ~ 70°C
Storage Temp. -45 ~ 105°C, 5 ~ 95% RH(no condensation)
Input Voltage DC 5~36V (also choose DC 9~50V)
Working Current ~200mA
Power <1W
Warranty 1 year
Accessory 1* 5V/1A Power Adapter 1* Ethernet Cable
User Guide
IOT_Device_Series_Software_Funtion_20200623 [ Download Times: 43640,  Date Update: 2020-06-23 18:28:00 ]
HF5111A_User Manual_V1.2(20190416) [ Download Times: 1520,  Date Update: 2019-04-16 19:03:09 ]
PE1X_EE1X_HF51XX_Eport_Operation Guide_20200402 [ Download Times: 14640,  Date Update: 2020-04-03 18:55:05 ]
