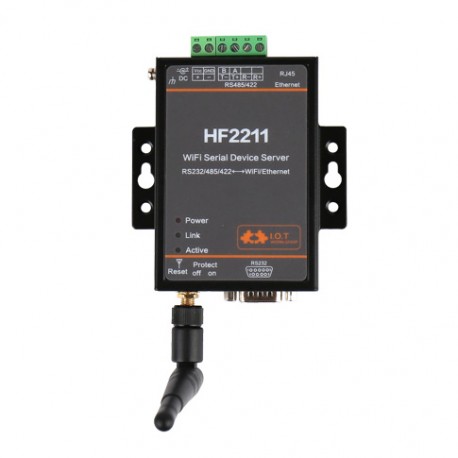

★HF2211
- Product Code: HF2211
Overviewof Characteristic
² MIPS MCU with 4MB Flash and 8MB SRAM. Run on eCos
² Support TCP/IP/Telnet /Modbus TCP Protocol
² Support RS232/RS422/RS485 to Ethernet/Wi-Fi Conversion, Serial Speed Upto 230400 bps
² Support STA/AP/AP+STA Mode
² Support Router or Bridge Network Working Mode.
² Support 10/100M Ethernet Auto-Negotiation
² Support Easy Configuration Through a Web Interface or PC IOT Manager Tool
² Support Security Protocol Such As SSL/AES/DES3
² Support Web OTA Wirelss Upgrade
² Wide DC Input 5~36VDC or 9~50VDC
² Size: 95 x65x 25 mm(Lx W x H)
² FCC_CE_RoHS_SRRC_REACH Certificated
| Processor | MIPS |
| Basic Frequency | 320MHz |
| Flash | 4MB |
| SDRAM | 8MB |
| Operating System | eCos |
| Ethernet | |
| Interface Standard | 1 RJ45 |
| Rate | 10/100M |
| Protection | 8KV Isolation |
| Network Protocol | IP，TCP，UDP，DHCP，DNS，HTTP Server/Client，ARP, BOOTP, AutoIP, ICMP，Web socket, Telnet, FTP,TFTP, uPNP, NTP, SNMP,Modbus TCP |
| Security Protocol | SSL v3 AES 128Bit DES3 |
| Standard | 802.11 b/g/n |
| Network Mode | STA/AP/STA+AP |
| Access Terminal Quantity in AP Mode | Max 32 |
| Transmit Power | 802.11b: +20dBm(Max.) 802.11g: +18dBm(Max.) 802.11n: +15dBm(Max.) |
| Receive Sensitivity | 802.11b: -89dBm 802.11g: -81dBm 802.11n: -71dBm |
| Wi-Fi Security | WEP64/WEP128/TKIP/ AES |
| Antenna Interface | 3dBi antenna |
| Port Number | 1RS232/RS485/RS422 |
| Interface Standard | RS232: DB9 RS485/RS422: 5.08mm connector |
| Data Bits | 8 |
| Stop Bit | 1,2 |
| Check Bit | None，Even，Odd |
| Baud Rate | TTL: 300 bps~230400bps |
| Flow Control | No Flow control Hardware RTS/CTS、DSR/DTR Software Xon/ Xoffflow control |
| Buffer | 4K |
| Configuration | Web CLI XML import Telnet IOTManagerPC Software |
| Virtual Serial | Windows, XP/Vista, 7， Server 2003/2008 |
| Size | 95mm x 65mm x 25mm |
| Operating Temp. | -25 ~ 85°C |
| Storage Temp. | -45 ~ 105°C，5 ~ 95% RH（no condensation） |
| Input Voltage | 5~36VDC or 9~50VDC |
| Working Current | ~200mA |
| Power | <700mW |
| Certificate | FCC_CE_RoHS_SRRC_REACH |
| Warranty | 1 year |
| Accessory | 1* Power Adapter 1* Serial Cable 1* Ethernet Cable 1* WiFi Antenna |
