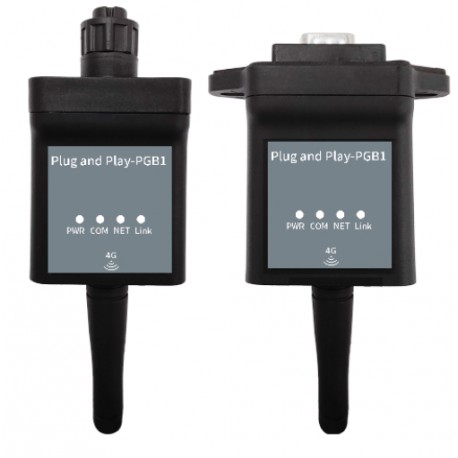

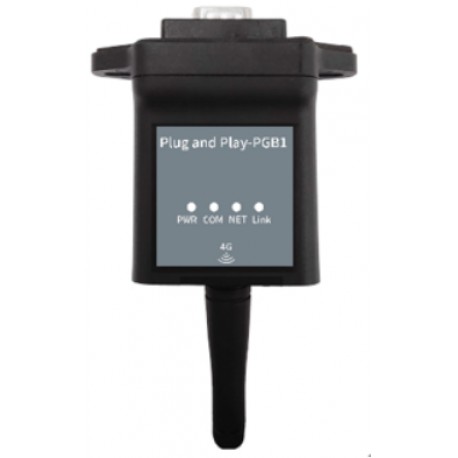

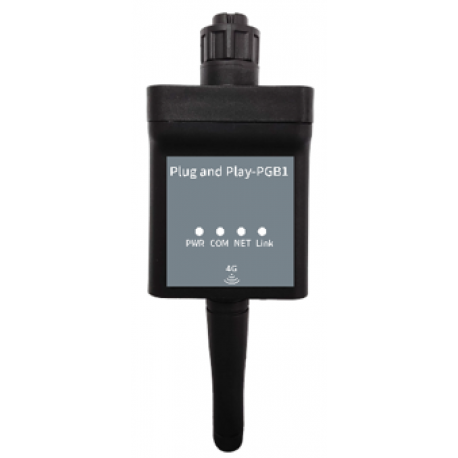

★Plug and Play-PGB1

  • Product Code: ★Plug and Play-PGB1
Buy Online

Overview of Characteristic

² Use RISC SOC chip, 160MHz CPU, 276KB RAM, 2MB Flash, based on FreeRTOS OS

² Support 4G LTE-TDD, LTE-FDD sub-type to support specific cellular network

² Support BLE 5.0 for config product parameters.

² Support RS485/RS232/TTL(choose one of three) to 4G Data Transmission, UART baud rate Up to 460800bps

² Supports Max 3 Channel TCP/UDP connections, Each Connection Supports 1400 Bytes of Data Cache

² Support Multiple Working Modes: Network Transparent Transmission Mode, HTTP Mode, MQTT

² Support Modbus Master Function

² Support IOTService Tool, Remotely and Dynamically Modify Product Parameters

² Support APN

² Supports Registration Packet, Heartbeat Packet Function, and Packet Supports Combination of ICCID, IMEI, IMSI, Software Version, cellular network Connection Status.

² Support NTP

² Support Modbus TCP to Modbus RTU

² Support IOTBridge for Remote Control and Config.

² Support IOTBridge working time, for example only works from 10:00 to 10:30 to save the data flow charge.

²  Support Network OTA Upgrade Firmware.

² DC Power Supply: 536DC@10W

² Size: TBD

Wireless Standard BLE 5.0
Frequency Range 2.402GHz-2480GHz
Transmit Power Max 15dBm
Receiver Sensitivity -97dBm
Processor Cortex-M3
Basic Frequency 96MHz
Operating System FreeRTOS
Interface Standard RS232 RS485 TTL
Protection 8KV Isolation
Port Number 1
Stop Bit 1,2
Check Bit None,Even,Odd
Baud Rate TTL:1200 bps~460800 bps
Flow Control No Flow control Half-Duplex(RS485) Hardware RTS/CTS、DSR/DTR(RS232)
Input Voltage 9~36VDC
Warranty 1 years
Work Temp. -40 ~ 85°C
Storage Temp. -45 ~ 85°C
User Guide
Plug and Play-PGB1 User Manual V1.0(20230809) [ Download Times: 137,  Date Update: 2023-11-16 16:15:29 ]
4G_2G_NB DTU Products Functions_V2.1_20231010 [ Download Times: 199,  Date Update: 2023-11-16 13:37:39 ]
4G_2G_NB Products Operation Guide_20231010 [ Download Times: 209,  Date Update: 2023-11-16 13:38:21 ]
