Product Overview‌

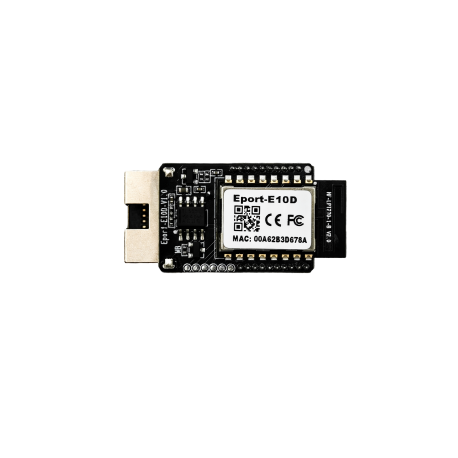

• The Eport-E10 D is a fully self-contained small form-factor,most compact,integrated solution ,which provide a serial interface to Ethernet connectivity to web enable any device.The Eport-E10 D integrate TCP/IP controller,memory,10/100M Ethernet transceiver,high-speed serial port within a compact RJ45 package and integrates a fully developed TCP/IP network stack and FreeRTOS OS.The EportE10 D also includes an embedded web server used to remotely configure,monitor,or troubleshoot the attached device.
• The Eport-E10 D using highly integrated hardware and software platform ,It has been optimized for all kinds of applications in the industrial control ,smart grid ,personal medical application and remote control that have lower data rates ,and transmit or receive data on an infrequent basis.By simply adding an Eport-E10 D unit to a product Design,device manufacturers can reduce their Design cycle and speed up Time-To-Market with very low risk.
• The Eport-E10 D integrates all serial to Ethernet functionality into a low-profile,39 x 19 x 15 mm standard RJ45 module package that can be easily mounted on main PCB with application specific circuits and even not change your original DesigN.

Overview of Characteristic

• Equipped with a RISC-V MCU (276KB SRAM)and 2MB Flash

• Use FreeRTOS Operation System

• Support TCP/IP/Telnet /Modbus TCP Protocol

• Support Serial To 10/100M Ethernet Conversion,Serial Speed Upto 230400 bps

• Support 10/100M Ethernet Auto-Negotiation

• Supports web-based configuration and simple setup via IOTMaster PC softwareSupport Security Protocol Such As TLS/AES/DES3

• Support Web OTA Wirelss Upgrade

• Support Industrial Temperature:-40 to +85˚C

• Single +3 .3V Power Supply

• Size:39 x 19 x 15 mm (L x W x H)
