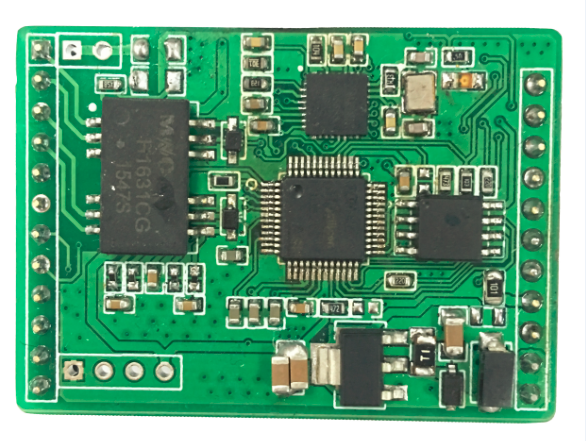

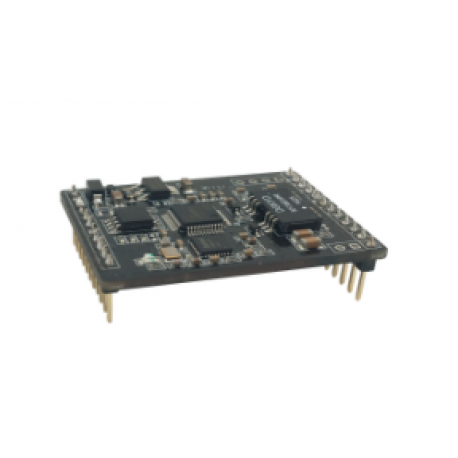

Eport-E30

  • Product Code: Eport-E30
Buy Online

Overview of Characteristic

²  Cortex-M3 MCU with 2MB Flash and 128KB SRAM

²  Use FreeRTOS Operation System

²  Support TCP/IP/Telnet /Modbus TCPProtocol

²  Support Serial To 10/100M Ethernet Conversion, Serial Speed Upto 921600 bps

²  Support 10/100M Ethernet Auto-Negotiation

²  Support Easy ConfigurationThrough a Web Interface

²  Support Security ProtocolSuch AsSSL/AES/DES

²  Support  Web OTA Wirelss Upgrade

²  Support Industrial Temperature:-40 to +85˚ C

²  Single +5V Power Supply

²  Size: 45 x 32x 8 mm(L x W x H)

²  FCC/CE/RoHSCertificated




Item

Parameters

System Information

Processor/Frequency

Cortex-M3/96MHz

Flash/SDRAM

2MB/128KB

Operating System

FreeRTOS

Ethernet Port

Port Number

1 RJ45 with LED

Interface Standard

10/100 Base-T Auto-Negotiation

Protection

2KV Isolation

Transformer

Integrated

Network Protocol

IP, TCP, UDP, DHCP, DNS, HTTP Server/Client, ARP, BOOTP, AutoIP,  ICMP, Web socket, Telnet, FTP,TFTP, uPNP, NTP, Modbus TCP

Security Protocol

SSL v3
AES 128Bit

DES

IPV6 Support

Not yet

Serial Port

Port Number

1 + 1 debug

Interface Standard

3.3V TTL: 2 wire(TX,RX)

Data Bits

5,6,7,8

Stop Bit

1,2

Check Bit

None,Even,Odd,Space,Mark

Baud Rate

TTL: 600 bps~921600 bps

Flow Control

No Flow control

Hardware RTS/CTS

Software Xon/ Xoffflow control

Software

Web Pages

Http Web Configuration

Customization of HTTP Web Pages

Log

Remote Realtime Log,

Configuration

Web

CLI

XML import

Telnet

IOTManagerPC Software

Firmware Upgrade

Web

SDK For Dev.

Not yet

Basic Parameter

Size

45 x 32 x 8 mm

Operating Temp.

-45 ~ 85°C

Storage Temp.

-45 ~ 105°C, 5 ~ 95% RH(no condensation)

Input Voltage

5V

Working Current

~100mA

Power

<400mW

Other Information



Certificate

CE, FCC, RoHS

Material

Metal shell, thermoplastic case

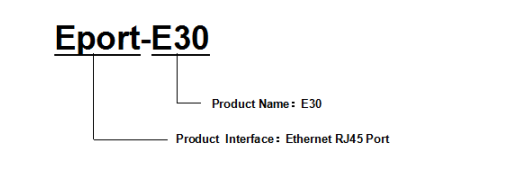

Eport-E30
Base on customer detailed requirement, Eport-E30 provide different variants and physical type for detailed application



System Information
Processor/Frequency Cortex-M3/90MHz
Flash/SDRAM 1MB/128KB
Operating System Free RTOS
Ethernet
Port Number RJ45 with 2 LED
Interface Standard 10/100 Base-T Anto-Negotiation
Protection 2KV Isolation
Network Transformer Integrated
Network Protocol IP, TCP, UDP, DHCP, DNS, HTTP Server/Client, ARP, BOOTP, AutoIP, ICMP, Web socket, Telnet, FTP,TFTP, uPNP, NTP, Modbus TCP
Security Protocol SSL v3 AES 128Bit DES3
IPV6 Support No
Serial
Port Number 1 + 1 debug
Interface Standard TTL:2 wire(TX,RX)
Data Bits 5,6,7,8
Stop Bit 1,2
Check Bit None,Even,Odd,Space,Mark
Baud Rate TTL:600 bps~921600 bps,
Flow Control RTS/CTS、DSR/DTR、X on/ X off、NONE
Software
Web Pages Http Web Configuration Customization of HTML Web Pages Interactive Web Pages
Log
Configuration Embedded web server, CLI, XML,Telnet, SSH
PC Config Tools Support
SDK For Dev. No
Basic Parameter
Size 45mm x 32mm x 8 mm
Operating Temp. -45 ~ 85°C
Storage Temp. -45 ~ 105°C, 5 ~ 95% RH(no condensation)
Input Voltage 5v
Working Current ~100mA
Power <400mW
Certificate CE, FCC, RoHS
