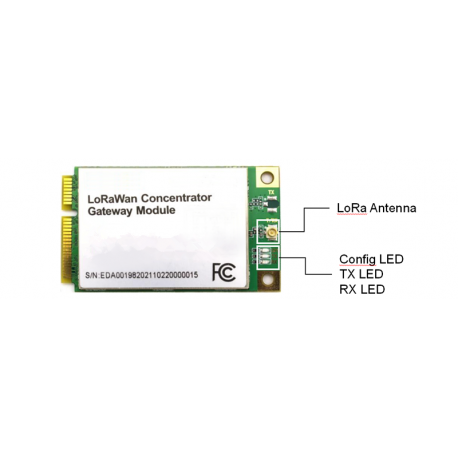

LWAN-LW10  module is a new generation of LoRaWAN gateway module in mini-PCIe form-factor with SPI interfaces based on Semtech® SX1302 and SX1250.

It features extremely low power consumption, outstanding performance with CE, FCC certified.

Features

✓ Mini PCIe form factor with SPI interfaces

✓ Powered by Semtech® SX1302 baseband processor

✓ Ultra-low operating temperature without additional heat dissipation needed

✓ High sensitivity with Semtech® SX1250 TX/RX front-end; TX power up to 25 dBm @3.3V

✓ Supports global license-free frequency band including EU868,CN470, US915, AS923, AU915, KR920 and IN865

✓ Certified with CE, FCC
