Class

Item

Parameters

Wireless Parameters

Certification

FCC/CE/SRRC/RoHS/IC/REACH

Wireless standard

802.11 b/g/n

Frequency range

2.412GHz-2.484GHz

Transmit Power

802.11b: +16 +/-2dBm (@11Mbps)

802.11g: +14 +/-2dBm (@54Mbps)

802.11n: +13 +/-2dBm (@HT20, MCS7)

Receiver Sensitivity

802.11b: -87 dBm (@11Mbps ,CCK)

802.11g: -73 dBm (@54Mbps, OFDM)

802.11n: -71 dBm (@HT20, MCS7)

Antenna Option

HF-LPB130:

Internal: PCB antenna

External: IPEX antenna

HF-LPT130A:

Internal: Copper Line antenna

External: IPEX antenna

HF-LPT230:

Internal: PCB antenna

HF-LPT330:

Internal: PCB antenna

HF-LPB135:

Internal: PCB antenna

External: IPEX antenna

Hardware

Parameters

Data Interface

UART

GPIO,SPI

Operating Voltage

2.9~4.2V

Operating Current

Peak (Continuous TX): 260Ma

Average(STA, No data): 25mA

Average(STA, Continuous TX): 32mA

Average(AP): 80mA

Operating Temp.

-40℃- 125℃

Storage Temp.

-40℃- 125℃

Density

<85%

Dimensions and Size

HF-LPB130:

23.1mm x 32.8mm x 3.5mm

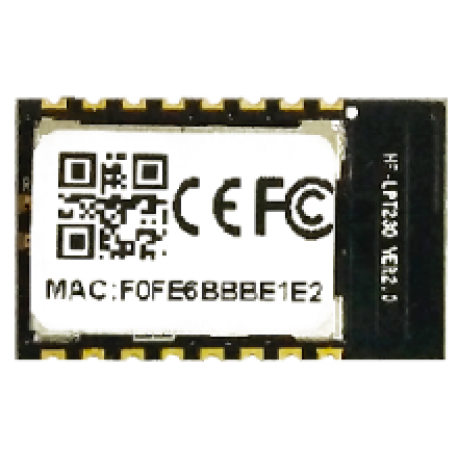

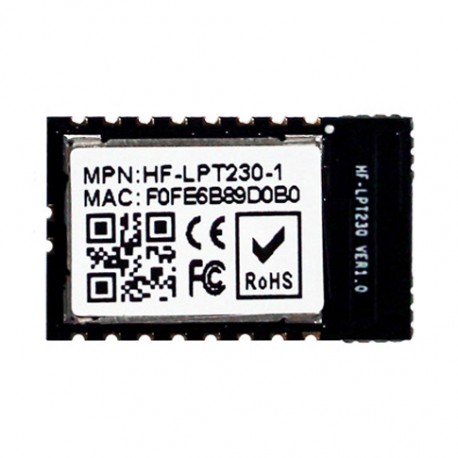

HF-LPT230:

22mm x 13.5mm x 3mm

HF-LPT130A:

22 mm x 14.3mm x 8mm

HF-LPT330:

24 mm x 16mm x 3mm

HF-LPB135:

41.3mm x 24.1mm x 6mm

Software Parameters

Network Type

STA/AP/AP+STA

Security Mechanisms

WEP/WPA-PSK/WPA2-PSK

Encryption

WEP64/WEP128/TKIP/AES

Update Firmware

Local Wireless, Remote OTA

Customization

Support SDK for application develop

Network Protocol

IPv4, TCP/UDP/HTTP/TLS(SDK)

User Configuration

AT+instruction set. Android/ iOS

Smart Link APP tools
