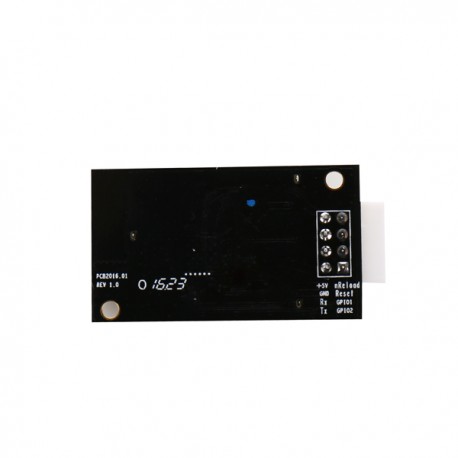

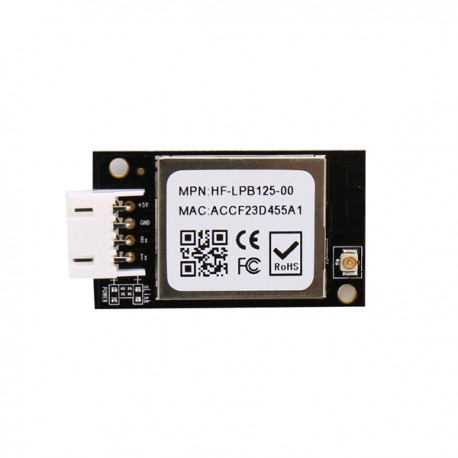

HF-LPB125
- Product Code: UART to Wi-Fi [LPB125]
Overview of Characteristic
●Support IEEE802.11b/g/n Wireless Standards
●Based on High-Flying Cost Effective Wi-Fi SOC: MC300 chipset
●Ultra-Low-Power for Battery Applications with Excellent Power Save Scheme
●Support UART/GPIO Data Communication Interface
●Support Work As STA/AP Mode
●Support Smart LinkFunction (APP program provide)
●Support Wireless and Remote Firmware Upgrade Function
●Support Internal/External (I-PEX) Antenna Option
●Single +5V Power Supply, +5V UART Voltage.
●Smallest Size: 41.3mm x 24.1mm x 6mm, 2x4 Pin 2.54mm pin header or4 Pin 2.5mm Header
●FCC/CE/SRRC/RoSH Certificated
Class | Item | Parameters |
Wireless Parameters | Certification | FCC/CE/SRRC/RoSH |
Wireless standard | 802.11 b/g/n | |
Frequency range | 2.412GHz-2.484GHz | |
Transmit Power | 802.11b: +16 dBm (@11Mbps) | |
802.11g: +14 dBm (@54Mbps) | ||
802.11n: +13 dBm (@HT20, MCS7) | ||
ReceiverSensitivity | 802.11b: -93 dBm (@11Mbps ,CCK) | |
802.11g: -85 dBm (@54Mbps, OFDM) | ||
802.11n: -82 dBm (@HT20, MCS7) | ||
Antenna Option | External:I-PEX Connector | |
Internal:On-board PCB antenna | ||
Hardware Parameters | Data Interface | UART |
GPIO | ||
| ||
Operating Voltage | 4.75~6V | |
Operating Current | Normal [WiFi ON/OFF, DTIM=100ms]: | |
Operating Temp. | -20℃- 85℃ | |
StorageTemp. | -40℃- 125℃ | |
Dimensions and Size | 41.3mm×24.1mm× 6mm | |
Software Parameters | Network Type | STA /AP |
Security Mechanisms | WEP/WPA-PSK/WPA2-PSK | |
Encryption | WEP64/WEP128/TKIP/ | |
Update Firmware | Local Wireless, Remote | |
Customization | Support SDK for application develop | |
Serial command | AT+instruction set | |
Network Protocol | IPv4, TCP/UDP/HTTP | |
User Configuration | AT+instruction set. Android/ iOS |
HF-LPB125
Base on customer detailed requirement, HF-LPB125 series modules provide different variants and physical type for detailed application
Production Data | 2015/Q4 |
Key Feature | Low Power SDK Support SmartLink Config 5V Support Lowest Price |
Processor | ARM7 SOC |
Basic Frequency | 96MHz |
Operating System | Contiki |
Wi-Fi Standard | 802.11bgn |
Certification | FCC/CE/SRRC/RoSH |
Temp. Range | -20~+85 |
Internal Antenna | √ |
I-PEX Connector | √ |
Size (mm) | 23.1×32.8×3.45 |
Package Type | 2x4 Connector |
Work Voltage | 5V |
Current @No data | ~30mA |
Current @Tx Peak | ~280mA |
Resource-Flash | 2MB |
Resource-RAM | 192KB |
Interface-UART | 2 |
Interface-GPIO | √ |
AP Mode | √(Max 4 STA) |
STA Mode | √ |
Web Server | √ |
OTA Upgrade | √ |
Smart Configure SmartLink V7.X APP | √ |
Airkiss Configure | √ |
SDK Support | √ |
