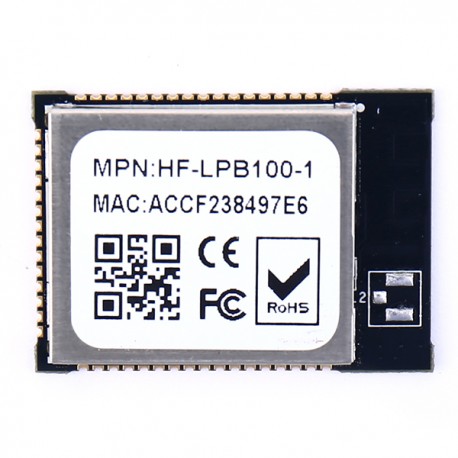

HF-LPB100
- Product Code: UART to Wi-Fi [LPB100]

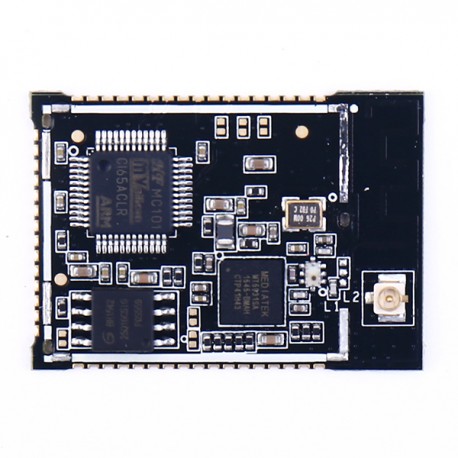

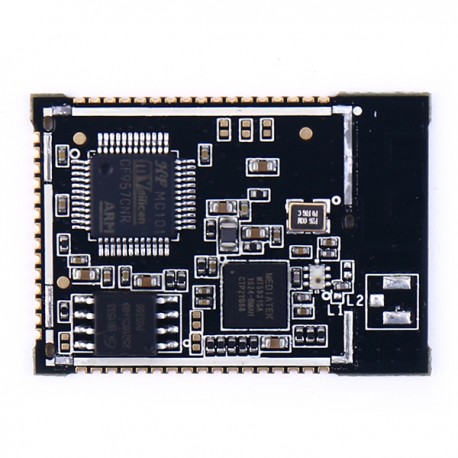

Overview of Characteristic ● Based on High-Flying Cotex-M3 MCU (MC101) + MediaTek Wi-Fi MT5931SA ● Support IEEE802.11b/g/n Wireless Standards ● Low-Power Applications with Excellent Power Save Scheme ● Support UART/SPI/PWM/GPIO Data Communication Interface ● Support Work As STA/AP/AP+STA Mode ● Support Smart Link Function ● Support Wireless/Remote Firmware Upgrade ● Support WPS Function ● Support Multi-TCP Client (Upto 5) Application ● Support Internal/External Antenna Option ● Single +3.3V Power Supply ● Smallest Size: 23.1mm x 32.8mm x 3.45±0.3mm ● FCC/CE/RoHS/TELEC/SRRC Certificated
|
HF-LPB100
Base on customer detailed requirement, HF-LPB100 series modules provide different variants and physical type for detailed application.
Production Data | 2013/Q1 |
Key Feature | Low Power SDK Support SmartLink Config |
Processor | Cortex-M3 MTK |
Basic Frequency | 96MHz |
Operating System | FreeRTOS |
Wi-Fi Standard | 802.11bgn |
Certification | FCC/CE/RoHS/TELEC/SRRC |
Temp. Range | -40~+85 |
Internal Antenna | √ |
I-PEX Connector | √ |
Size (mm) | 23.1×32.8×3.45 |
Package Type | SMT48 |
Work Voltage | 2.8~3.6V |
Current @No data | ~12mA |
Current @Tx Peak | ~300mA |
Resource-Flash | 2MB |
Resource-RAM | 128KB |
Interface-UART | 2 |
Interface-PWM | 8 |
Interface-SPI | 1 |
Interface-GPIO | √ |
Interface-A/D | √ (6) |
AP Mode | √(Max 2 STA) |
STA Mode | √ |
AP+STA Mode | √ |
WPS Function | √ |
Web Server | √ |
OTA Upgrade | √ |
Smart Configure SmartLink V7.X APP | √ |
Airkiss Configure | √ |
SDK Support | √ |
- Firmware
-
LPB100&LPT100&LPT200&LPB105_V1.0.08-11_Firmware
[ Download Times:
4409 , Date Update: 2019-01-15 19:14:10 ]
- Applications
-
Production Tool
[ Download Times:
13916 , Date Update: 2016-11-03 16:39:17 ] -
EVK_Quick_Start_Guide
[ Download Times:
2495 , Date Update: 2016-11-25 13:50:46 ]
- Software Development Kit
-
LPB100-LPT100-LPT200-LPB100U-LPB105 SDK
[ Download Times:
3674 , Date Update: 2017-12-08 11:17:39 ]
- User Guide
-
HF-LPB100 User Manual
[ Download Times:
5052 , Date Update: 2016-11-08 17:34:48 ] -
Airkiss Smart Config
[ Download Times:
3330 , Date Update: 2016-11-14 11:49:51 ]
- Application Notes
-
HF-LPB100 customized webpage
[ Download Times:
1736 , Date Update: 2016-11-14 11:52:37 ] -
HF-LPB100_EVK_Design_Package
[ Download Times:
716 , Date Update: 2016-11-14 11:55:37 ] -
HF-LPB100_LPT100_LPT200 config guide
[ Download Times:
2088 , Date Update: 2016-11-14 13:23:44 ] -
HF LP series pins mapping table
[ Download Times:
3237 , Date Update: 2016-11-14 13:26:26 ] -
HF-LPB120&HF-LPB100 EVK Use Guide
[ Download Times:
1602 , Date Update: 2016-11-14 13:35:50 ] -
HF-LPB100&HF-LPB120 Series Hardware Design
[ Download Times:
1625 , Date Update: 2016-11-18 17:48:09 ]
