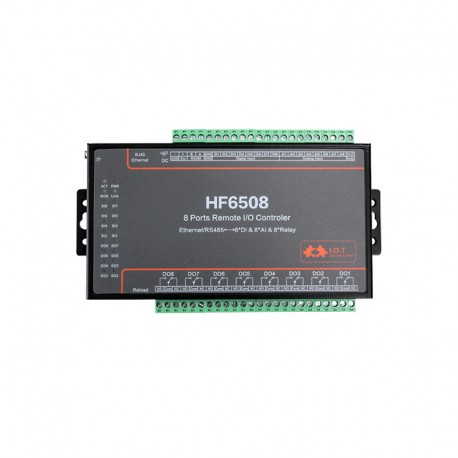

HF6508

  • Product Code: HF6508
Buy Online
Overview of Characteristic
  • Support TCP/IP/Telnet /Modbus TCP Protocol
  • Support RS485 transmission Use Modus protocol to control 8 DIs, 8 AI interfaces and control 8 DOsSupport STA/AP/AP+STA Mode
  • Support Modbus RTU and Modbus TCP protocol
  • Support 10 / 100M Ethernet adaptation (HF6208 / HF6508)
  • Support web page, IOTService PC software easy configuration (HF6208 / HF6508)
  • Support  configuration (HF6108)
  • Support Industrial Operating Temperature Support Industrial Operating Temperature: -40 to + 85˚C
  • Support  web page, PC software IOTService configuration (HF6208 / HF6508)
  • Support  web OTA wireless upgrade (HF6208 / HF6508)
  • DI input voltage range 3 ~ 30V, AI input voltage range 0 ~ 5V, input current range 0 ~ 25mA
  • Wide voltage 5 ~ 40V DC power supply
  • Cortex-M3 MCU (128KB SRAM) and 2MB Flash
  • Size: 95 x 65 x 25 mm

Size 192mm x 97mm x 26mm
Interface-Ethernet 1RJ45 and LED
Processor/Frequency Cortex-M3/96MHz
Port Number 1
Interface Standard RS485：5.08mm
Data Bits 8
Configuration Web XML Telnet IOTService
Port Interface 1
Work Temp. -40 ~ 85°C
User Guide
IOT_Device_Series_Software_Funtion_20250328 [ Download Times: 51736,  Date Update: 2025-04-03 09:51:01 ]
HF6208_HF6508 User Manual-V1.2_20250417 [ Download Times: 3980,  Date Update: 2025-04-25 13:26:05 ]
