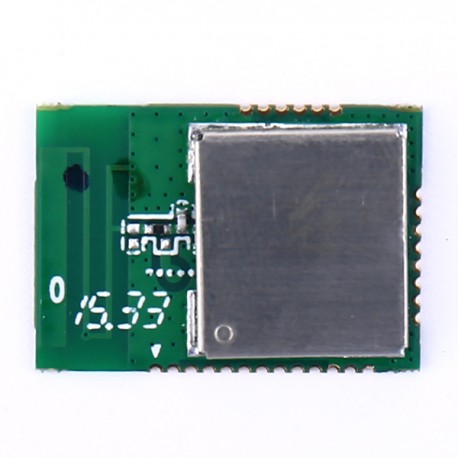

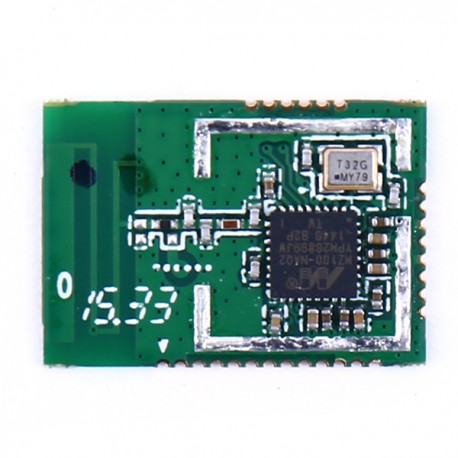

HF-Z100C

  • Product Code: ZigBee ZHA/ZLL [Z100C]
Buy Online

Overview of Characteristic

●  Support IEEE802.15.4 Wireless Standards

●  Low-Power Applications with Excellent Power Save Scheme

●  Support UART/SPI/PWM/GPIO Data Communication Interface

●  Support Full Zigbee ZHA/ZLL profile

●  Support Internal/External Antenna Option

●  Single 2.0V ~ 3.6V Power Supply

●  Smallest Size: 22.2 x 15.5 x 3.0mm

●  FCC/CE Certificated


 Class

Item

Parameters

Wireless Parameters

Certification

FCC/CE

Wireless Standard

802.15.4

Radio Data Rate

250Kbps@2.4GHz

Frequency Range

2.4~2.4835GHz

Transmit Power

9  +/-1.5dBm

ReceiverSensitivity

≤-101dBm

Antenna Option

Internal:On-board PCB ANT



Hardware

Parameters

Data Interface

UART,ADC,PWM

I2C,GPIO

Operating Voltage

2.0~3.6V

Operating Current

<80mA

Deep Sleep Current

<10uA

Communication

Distance

Indoor 30m,Outdoor 100m

Operating Temp.

-40℃- 110℃

StorageTemp.

-45℃- 125℃

Dimensions and Size

22.2 x 15.5 x 3.0mm



HF-Z100C
Base on customer detailed requirement, HF-Z100C series modules provide different variants and physical type for detailed application.






Antenna Type On-board PCB Antenna
Size (mm) 22.2mm x 15.5mm x 3.0mm
Pin Defination GND for PIN 1
Certification FCC/CE/RoHS
Wireless Standard 802.15.4
Radio Data Rate 250Kbps@2.4GHz
Frequency Range 2.4~2.4835GHz
Transmit Power 9 ±1.5 dBm
Receiver Sensitivity ≤-101dBm
Data Interface 2xUART, 5xPWM, 3xADC,1xI2C (15xGPIO in All)
Operating Voltage 2.0~3.6V
Operating Current <60mA
Deep Sleep Current <10uA
Communication Distance Indoor 30m, Outdoor 100m
Operating Temp. -40℃- 125℃
StorageTemp. -40℃- 125℃
