ZigBee ZHA/ZLL [Z100A]

Buy Online

Overview of Characteristic

● Support IEEE802.15.4 Wireless Standards

● Low-Power Applications with Excellent Power Save Scheme

● Support UART/SPI/PWM/GPIO Data Communication Interface

● Support Full Zigbee ZHA/ZLL profile

● Support Internal/External Antenna Option

● Single 2.0V ~ 3.6V Power Supply

● Smallest Size: 15.6mm x 12.2mm x2.0mm

● FCC/CE Certificated

Class	Item	Parameters
Wireless Parameters	Certification	FCC/CE
	Wireless Standard	802.15.4
	Radio Data Rate	250Kbps@2.4GHz
	Frequency Range	2.4~2.4835GHz
	Transmit Power	9 +/-1.5dBm
	ReceiverSensitivity	≤-101dBm
	Antenna Option	External: RF line out for external ANT
	Antenna Option	Internal:On-boardChip ANT
Hardware Parameters	Data Interface	UART,ADC,PWM
	Data Interface	I2C,GPIO
	Operating Voltage	2.0~3.6V
	Operating Current	＜60mA
	Deep Sleep Current	＜10uA
	Communication Distance	Indoor 30m,Outdoor 100m
	Operating Temp.	-40℃- 110℃
	StorageTemp.	-45℃- 125℃
	Dimensions and Size	15.6x12.2x2.0mm

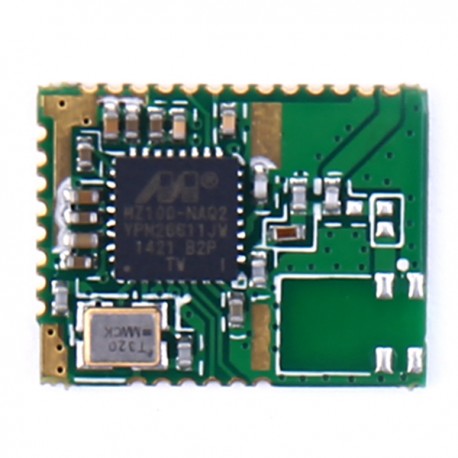

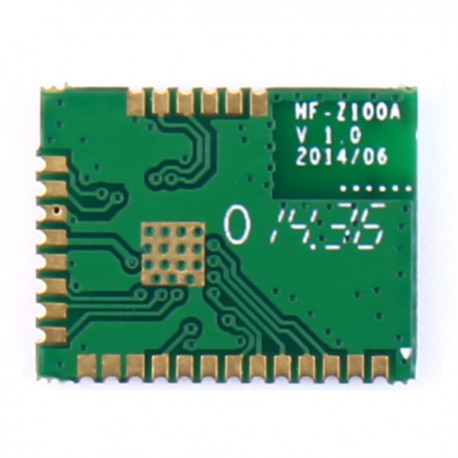

HF-Z100A
Base on customer detailed requirement, HF-Z100A series modules provide different variants and physical type for detailed application.

Antenna Type	External Pin Pad
Size (mm)	15.6mm x 12.2mm x 2mm
Pin Defination	2.4G Antenna output for PIN1
Certification	FCC/CE/RoHS
Wireless Standard	802.15.4
Radio Data Rate	250Kbps@2.4GHz
Frequency Range	2.4~2.4835GHz
Transmit Power	9 ±1.5 dBm
Receiver Sensitivity	≤-101dBm
Data Interface	2xUART, 5xPWM, 3xADC,1xI2C (15xGPIO in All)
Operating Voltage	2.0~3.6V
Operating Current	＜60mA
Deep Sleep Current	＜10uA
Communication Distance	Indoor 30m, Outdoor 100m
Operating Temp.	-40℃- 125℃
StorageTemp.	-40℃- 125℃

User Guide: HF-Z100A User Manual [ Download Times: 201, Date Update: 2016-11-08 19:35:44 ]

Application Notes: HF-Z100A_EVK_Design_Package [ Download Times: 187, Date Update: 2016-11-18 14:25:47 ]
: Zigbee Module Selection Guide [ Download Times: 243, Date Update: 2016-11-18 14:29:34 ]
