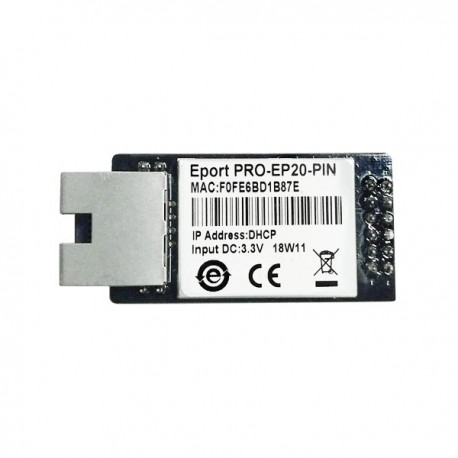

Eport Pro-EP20-PIN

  • Product Code: Eport Pro-EP20-PIN
Buy Online

Overview of Characteristic

  • MIPS MCU with 16MB Flash and 32M SDRAM
  • Use Linux Operation System
  • Support TCP/IP/Telnet/Modbus TCP Protocol
  • Support Serial To 10/100M Ethernet Conversion, Serial Speed Upto 921600 bps
  • Support 10/100M Ethernet Auto-Negotiation
  • Support Easy Configuration Through a Web Interface
  • Support Security Protocol Such As TLS/AES/DES3
  • Support  Web OTA Wirelss Upgrade
  • Single +3.3V Power Supply
  • Size: 50 x 23 x 12 mm (L x W x H)
System Information
Processor/Frequency MIPS/320MHz
Flash/SDRAM 16MB/32MB
Operating System Linux
Ethernet
Port Number 1 RJ45 with LED
Interface Standard 10/100 Base-T Auto-Negotiation
Protection 2KV Isolation
Network Transformer Integrated
Network Protocol IP，TCP，UDP，DHCP，DNS，HTTP Server/Client，ARP, BOOTP, AutoIP, ICMP，Web socket, Telnet, FTP,TFTP, uPNP, NTP, SNMP,Modbus TCP
Security Protocol SSL v3（2048）、 AES 128Bit、3DES、 SHA-1、MD5、Base-64、RSA、ECC
IPV6 Support support
Serial
Port Number 1 + 1 debug
Interface Standard 3.3V TTL: 2 wire（TX,RX）
Data Bits 8
Stop Bit 1,2
Check Bit None,Even,Odd,Space,Mark
Baud Rate TTL: 600 bps~460800bps
Flow Control No Flow control Hardware RTS/CTS、DSR/DTR Software Xon/ Xoffflow control
Software
Web Pages Http Web Configuration Customization of HTTP Web Pages
Log Remote Realtime Log
Configuration Web CLI XML import Telnet IOTManager PC Software
PC Config Tools IOTManager PC Software
SDK For Dev. support
Basic Parameter
Size 50x 23x 12mm
Operating Temp. -45 ~ 70°C
Storage Temp. -45 ~ 105°C, 5 ~ 95% RH（no condensation）
Input Voltage 3.3V
Working Current ~200mA
Power <700mW
User Guide
IOT_Device_Series_Software_Funtion_20250328 [ Download Times: 55162,  Date Update: 2025-09-18 14:41:10 ]
Eport Pro-EP20&EP20-PIN Super Port User ManualV1.4(20211118) [ Download Times: 1092,  Date Update: 2023-09-21 15:17:43 ]
Application Notes
Eport Series EVK Design Package [ Download Times: 3552,  Date Update: 2018-07-17 11:35:50 ]
