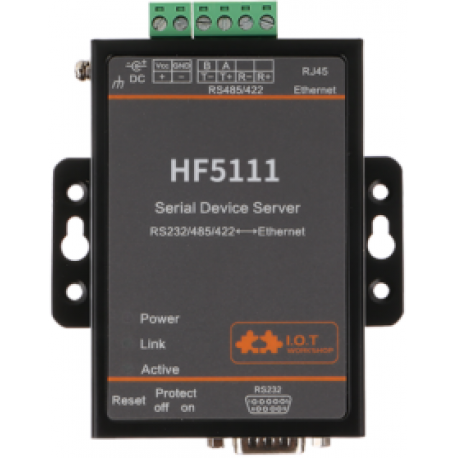

HF5111
- Product Code: HF5111
Product Overview
- The HF5111 serial port server provides a solution for protocol conversion between RS232/RS485/RS422 and TCP/IP, meeting the channel requirements for industrial product serial port to Ethernet data transmission. This product integrates Ethernet hardware protocols such as MAC, TCP/IP protocol stack, memory management, 10/100M Ethernet transceiver, high-speed serial port, RS232, RS485, RS422 and other rich hardware interfaces. Based on the FreeRTOS operating system, the product includes a web page for convenient remote configuration, monitoring and debugging. The hardware interface meets the national standard requirements, and ESD supports air discharge ± 15KV and contact discharge ± 8KV.
- The HF5111 serial server adopts a highly integrated hardware and software platform, which has been optimized for industrial applications, smart grids, personal health and medical applications. Only adding one HF5111 product can meet the needs of device data monitoring and transmission.
Product Features
- Adopting Cortex-M3 MCU (128KB SRAM) and 2MB Flash
- Adopting FreeRTOS real-time operating system
- Supports TCP/IP/Telnet/Modbus TCP protocols
- Supports serial port to 10/100M Ethernet data transmission, with a maximum serial port speed of 460800bps
- Supports 10/100M Ethernet adaptation
- Support web page mode and easy configuration of IOTService PC software
- Support SSL/AES/DES3 secure encryption configuration for data
- Support web OTA wireless upgrade
- Supporting industrial grade working temperature: -40 to+85 ° C
- Wide voltage supply of 5-36VDC (9-50VDC optional)
- Size: 94mm x 65mm x 25mm
| Processor | Cortex-M3 |
| Basic Frequency | 96MHz |
| Flash | 2MB |
| SDRAM | 128KB |
| Operating System | FreeRTOS |
| Interface Standard | RJ45 |
| Rate | 10/100M |
| Protection | 8KV electromagnetism isolation, shell insulation blocking |
| Network Protocol | IP，TCP，UDP，DHCP，DNS，HTTP，ARP，ICMP，Web socket，Httpd client，ModbusTCP，NTP |
| Security Protocol | Client ：SSL v3（2048bit） Encryption：AES-CCMP、3DES Authentication：SHA-1、MD5、Base-64 |
| Port Number | 1 (RS232、RS485、RS422) |
| Interface Standard | RS232：DB9 pin type， RS485：2 wire（A+，B-）， RS422：4 wire（T+，T-，R+，R-） |
| Data Bits | 5，6，7，8 |
| Stop Bit | 1，2 |
| Check Bit | None，Even，Odd，Space，Mark |
| Baud Rate | 600 bps~460800 bps |
| Flow Control | RTS/CTS |
| Buffer | 4K |
| Configuration | Built-in webpage：Http Computer set-up software：IOTManager Serial command： CLI Support configuration record：Log Remote Configuration：Telnet |
| Virtual Serial | Windows, XP/Vista, 7， 8，10 Server 2003/2008/2012 |
| Size | 95 x 65 x 25（mm） |
| Operating Temp. | -40 ~ 85°C |
| Storage Temp. | -45 ~ 105°C， 5 ~ 95% RH（no condensation） |
| Input Voltage | DC 5~36V |
| Working Current | ~170mA |
| Power | <1W |
| Warranty | 3 year |
| Accessory | 1* 5V/1A Power Adapter 1* Ethernet Cable |
