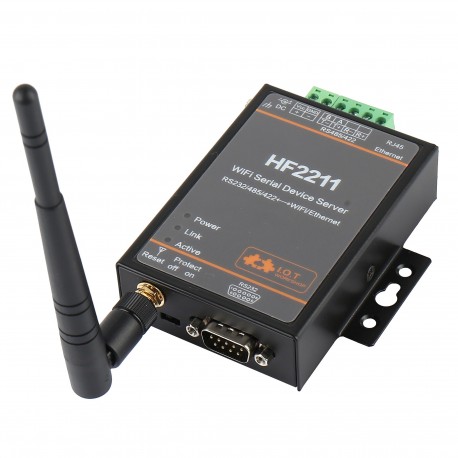

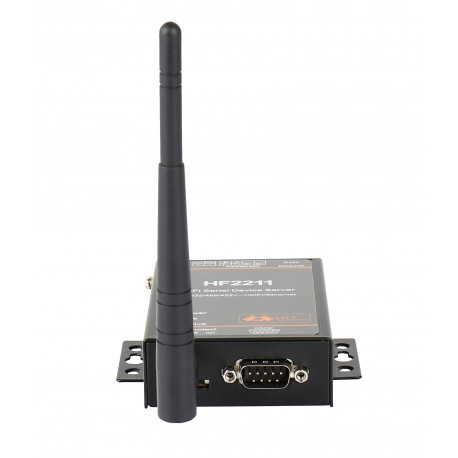

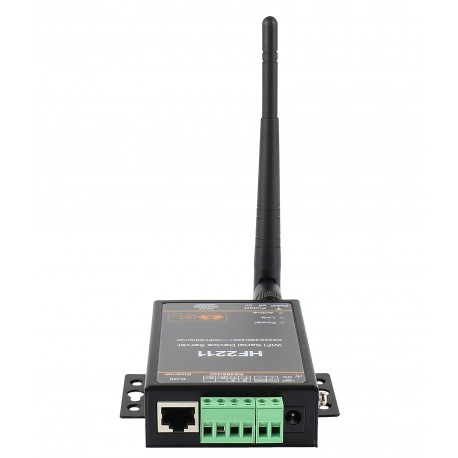

HF2211

  • Product Code: HF2211
Buy Online

Overviewof Characteristic

²  MIPS MCU with 4MB Flash and 8MB SRAM. Run on eCos

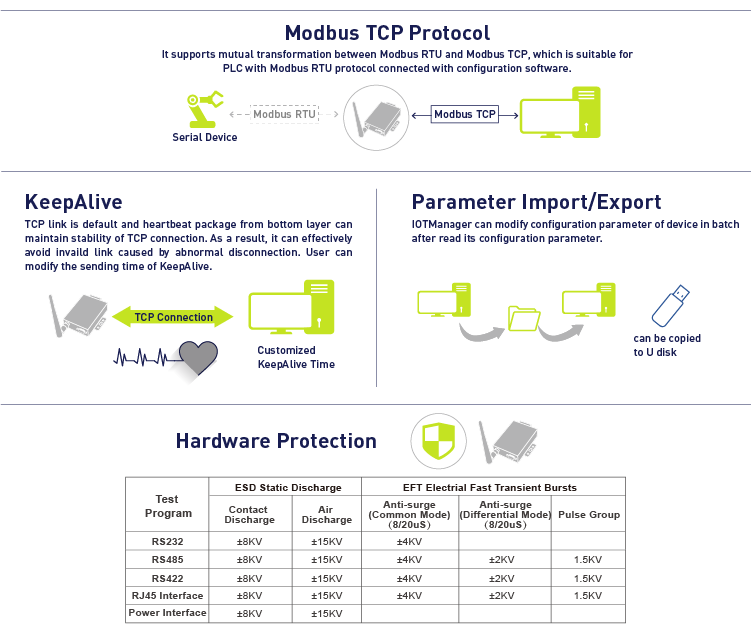

²  Support TCP/IP/Telnet /Modbus TCP Protocol

²  Support RS232/RS422/RS485 to Ethernet/Wi-Fi Conversion, Serial Speed Upto 230400 bps

²  Support STA/AP/AP+STA Mode

²  Support Router or Bridge Network Working Mode.

²  Support 10/100M Ethernet Auto-Negotiation

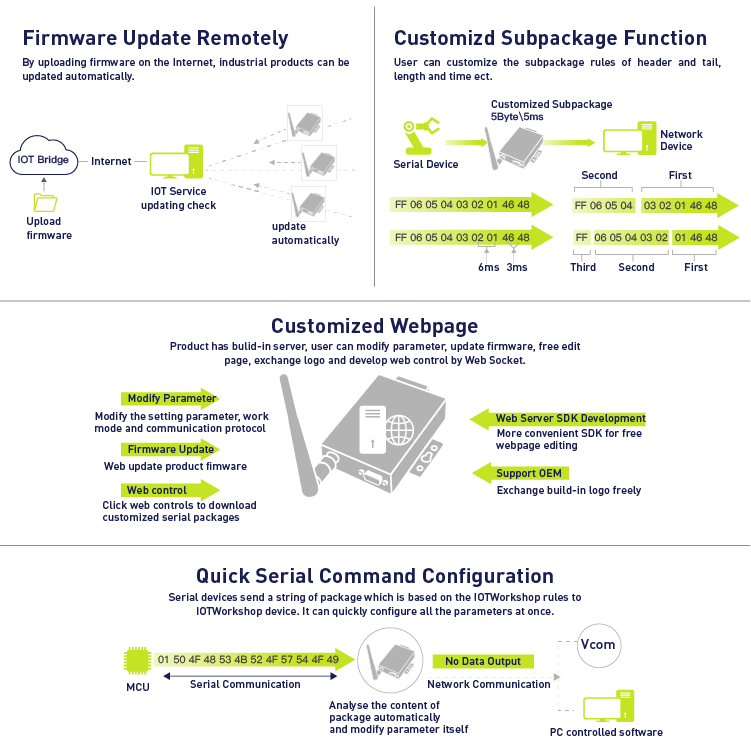

²  Support Easy Configuration Through a Web Interface or PC IOT Manager Tool

²  Support Security Protocol Such As SSL/AES/DES3

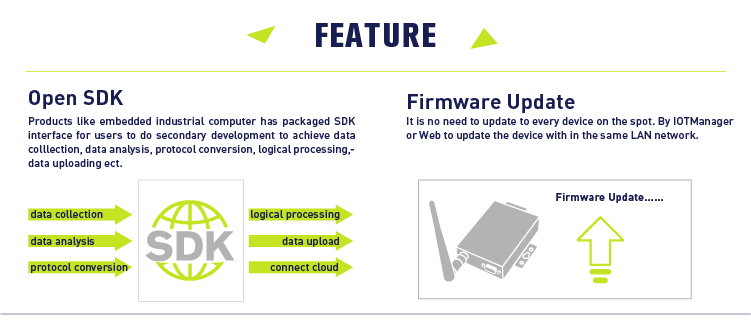

²  Support Web OTA Wirelss Upgrade

²  Wide DC Input 5~36VDC or 9~50VDC

²  Size: 95 x65x 25 mm(Lx W x H)

²  FCC_CE_RoHS_SRRC_REACH Certificated






Processor MIPS
Basic Frequency 320MHz
Flash 4MB
SDRAM 8MB
Operating System eCos
Ethernet
Interface Standard 1 RJ45
Rate 10/100M
Protection 8KV Isolation

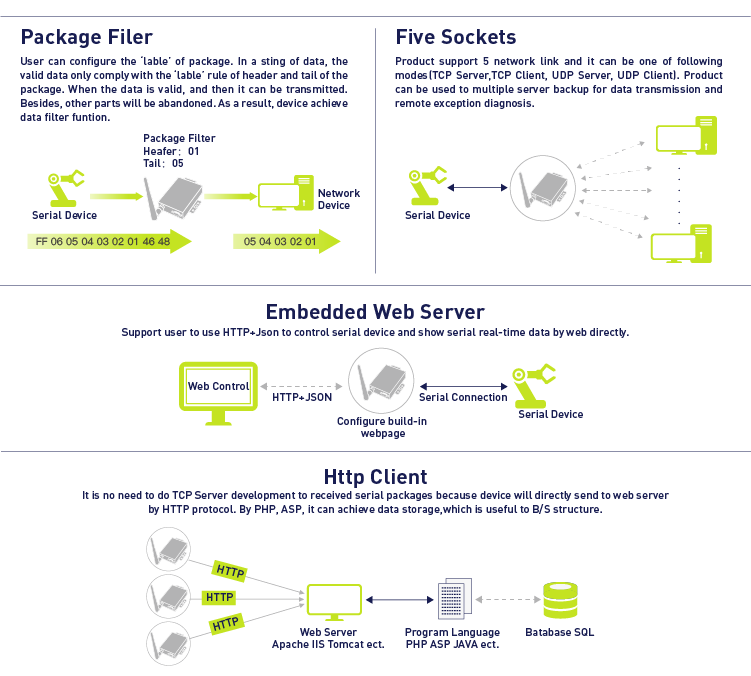

Network Protocol IP,TCP,UDP,DHCP,DNS,HTTP Server/Client,ARP, BOOTP, AutoIP, ICMP,Web socket, Telnet, FTP,TFTP, uPNP, NTP, SNMP,Modbus TCP
Security Protocol SSL v3 AES 128Bit DES3
Standard 802.11 b/g/n
Network Mode STA/AP/STA+AP
Access Terminal Quantity in AP Mode Max 32
Transmit Power 802.11b: +20dBm(Max.) 802.11g: +18dBm(Max.) 802.11n: +15dBm(Max.)
Receive Sensitivity 802.11b: -89dBm 802.11g: -81dBm 802.11n: -71dBm
Wi-Fi Security WEP64/WEP128/TKIP/ AES

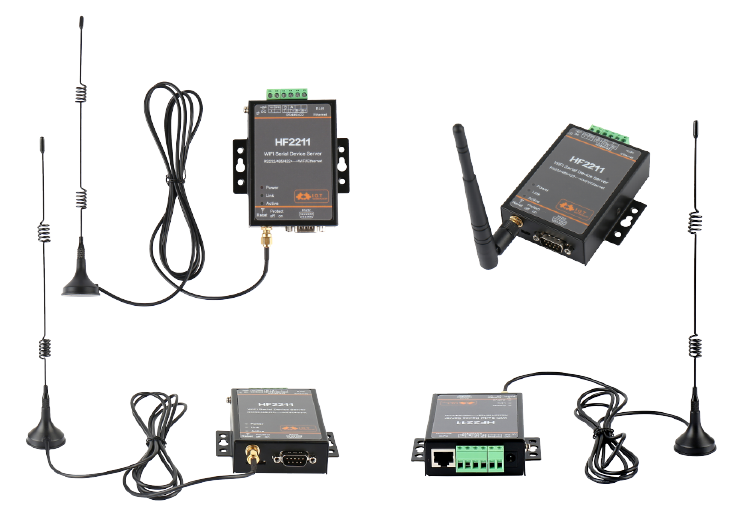

Antenna Interface 3dBi antenna
Port Number 1RS232/RS485/RS422
Interface Standard RS232: DB9 RS485/RS422: 5.08mm connector
Data Bits 8
Stop Bit 1,2
Check Bit None,Even,Odd
Baud Rate TTL: 300 bps~230400bps
Flow Control No Flow control Hardware RTS/CTS、DSR/DTR Software Xon/ Xoffflow control
Buffer 4K
Configuration Web CLI XML import Telnet IOTManagerPC Software
Virtual Serial Windows, XP/Vista, 7, Server 2003/2008
Size 95mm x 65mm x 25mm
Operating Temp. -25 ~ 85°C
Storage Temp. -45 ~ 105°C,5 ~ 95% RH(no condensation)
Input Voltage 5~36VDC or 9~50VDC
Working Current ~200mA
Power <700mW
Certificate FCC_CE_RoHS_SRRC_REACH
Warranty 1 year
Accessory 1* Power Adapter 1* Serial Cable 1* Ethernet Cable 1* WiFi Antenna
Firmware
HF2211&amp;HF2221_1.34.04_20190408 [ Download Times: 492,  Date Update: 2019-05-08 09:09:50 ]
User Guide
HF2211_User Manual_V1.2(20190215) [ Download Times: 1273,  Date Update: 2019-02-21 18:07:25 ]
IOT_Device_Series_Software_Funtion_20190415 [ Download Times: 1734,  Date Update: 2019-04-15 18:12:48 ]
Application Notes
HF2211_Test_Guide_20170728 [ Download Times: 1130,  Date Update: 2018-04-16 15:00:18 ]
Certificate
HF2211_FCC_CE_RoHS_SRRC_REACH [ Download Times: 326,  Date Update: 2018-12-03 19:14:38 ]
Company File
2017 Industry Product Brochure [ Download Times: 2219,  Date Update: 2017-04-12 10:16:46 ]
