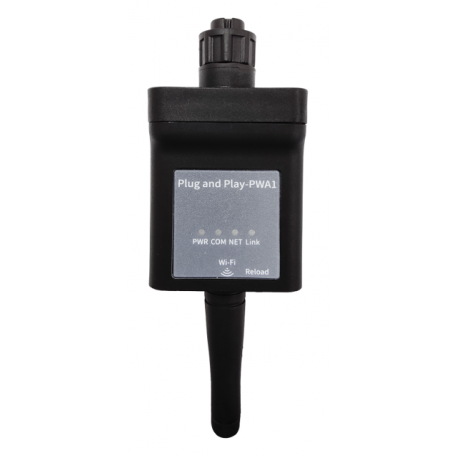

★Plug and Play-PWA1

  • Product Code: Plug and Play-PWA1
Buy Online
  • Overview of Characteristic
    •  Support 802.11bgn Wireless Standard
    • Support STA/AP/AP+STA Mode
    • Support SmartLink V8 Smart Config (Provide APP)
    • Support TCP/UDP/MQTT/HTTP/WebSocket Protocol
    • Support Modbus TCP to RTU, Modbus Master Function
    • Support RS485 To WiFi Conversion
    • Support Webpage Easy Configuration or PC IOTService Tool
    • Support Security Protocol Such As TLS/AES/DES3
    • Support Heartbeat and Resister Packet Function
    • Support Webpage OTA Wireless Upgrade
    • Support Industrial Temperature: -40to +70˚ C
    • Power supply: 5~36VDC@10W

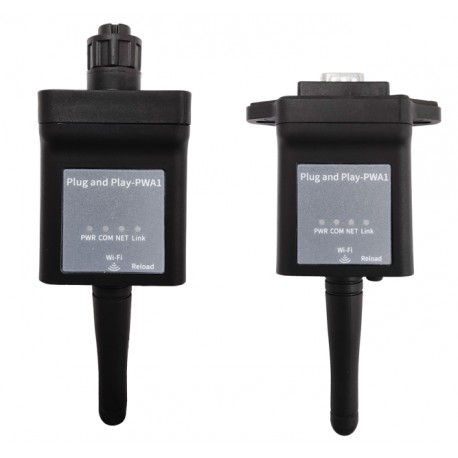

    • A variety of interface styles are supported

Processor 160MHz
Basic Frequency 448KB
Flash 2MB
SDRAM 448KB
Operating System mbed
Network Protocol IP，TCP，UDP，DHCP，DNS，HTTP Server/Client，ARP， BOOTP， AutoIP， ICMP，Web socket， Telnet， uPNP， NTP， Modbus TCP
Security Protocol TLS v1.2 AES 128Bit DES3
Network Mode STA/AP/STA+AP
Transmit Power 802.11b: +18dBm(Max.) 802.11g: +16dBm(Max.) 802.11n: +15dBm(Max.)
Receive Sensitivity 802.11b: -89dBm 802.11g: -81dBm 802.11n: -71dBm
Wi-Fi Security WEP64/WEP128/TKIP/ AES
Port Number 1 RS232 1 RS485 1 TTL
Data Bits 7，8
Stop Bit 1，2
Check Bit None，Even，Odd
Baud Rate TTL：300~230400bps
Flow Control No Flow control Software Xon/ Xoff flow control
Configuration Http Web Configuration Customization of HTTP Web Pages
Storage Temp. -45 ~ 125°C， 5 ~ 95% RH
Input Voltage 5~36VDC@10W
Working Current 峰值(100 毫秒中 1ms)：<350mA 平均(STA，联网待机)：40mA 平均(STA，1KB/s)：60mA 平均(AP)：70mA
Power 180mW
Wi-Fi Standard 802.11 b/g/n
Work Temp. -40 ~ 85°C
User Guide
HF2211S_EW1X_PW1X_Wport-W30_Operation Guide(20220525) [ Download Times: 1220,  Date Update: 2022-06-21 15:11:12 ]
Plug and Play-PWA1 User Manual V1.0(20231122) [ Download Times: 121,  Date Update: 2023-11-27 17:50:33 ]
