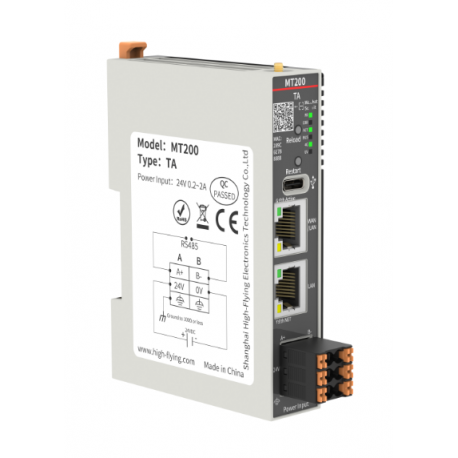

 MT200-TA is a high-performance and scalable 4G gateway for the Internet of Things. The product integrates data edge acquisition, calculation, active reporting and data reading and writing, linkage control, IO acquisition and control and other functions.
 The highlight of the product is the linkage control with the wechat mini program. Through the wechat mini program, you can quickly scan the code to add devices, automatically identify all the expansion IO and ports behind the gateway, and define a series of functions such as the device name, status, control logic and calculation formula conversion of DI, DO, REL, AI and AO on the mini program. You can customize cycle control, timing control, analog linkage control, parameter alarm/fault alarm Settings, etc., so as to break away from the upper computer software and cloud platform construction, only a mobile phone installed with wechat can be controlled.
 using Linux kernel, the main frequency up to 580MHz; The network adopts 4G cellular plus WAN/LAN+LAN design, the uplink transmission is more reliable, and the LAN port can be connected to external devices such as cameras. The product adopts an extensible design in structure, which can be combined by expanding modules with different functions to better meet the needs of IO quantity and communication interface in different scenarios. Convenient, fast and cost saving. The product supports expansion I/O, expansion serial port, and up to 10 expansion devices. It can be widely used in agriculture, forestry, animal husbandry and fishery, smart home, distributed intelligent control and other intelligent solutions.
 MIPS CPU, 580MHz main frequency, ultra-high performance, fast running;
 Dual network, LTE 4G and Ethernet parallel, 4G support Cat4 network, to ensure high-speed network transmission;
 Dual network port (1*WAN\LAN+1*LAN), supporting built-in routing and firewall functions;
 Single serial port, the serial port supports RS485.
 linkage control, support multi-point linkage, support linkage SMS alarm, linkage platform alarm, linkage point control, linkage DO and REL control;
 Network I/O function, support flexible I/O module expansion;
 The gateway supports dual-network-port switch cascading.
 Supports 10 expanded I/O modules.
