Module overview

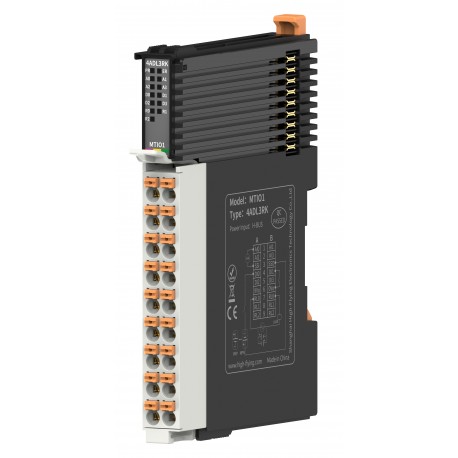

Ø MTIO1-4ADL3RK is a new generation of IO acquisition and control module launched by Hanfeng. It adopts extended structural design, flexible matching, self-developed Hanfeng H-BUS backplane bus, with high-speed acquisition protocol, fast realization of backplane module identification and automatic configuration matching.

ØMTIO1-4ADL3RK is a 4-channel 0~20mA\4~20mA current type analog input, 4-channel digital input, 3-channel relay output expansion module, and the width is only 12mm after splicing.

Ø Analog input can receive 0-20mA, 4-20mA differential input signals. It can be connected to 2-wire, 3-wire and 4-wire sensors. Transmission in 12-bit resolution

Ø Digital input support source type or drain type input, input PNP type high level or NPN type low level effective. It can receive binary control signals from the field (e.g. sensors, encoders, switches or proximity switches). The filtering time can be set.

Ø Relay output support normally open relay, output load capacity is 3A@DC30 or 2.5A@AC250.

The module uses Push-inCAGECLAMP technology, which allows a single strand of wire to be inserted directly.

Ø Simple and practical, rich indicator light, can judge the equipment status at a glance.
