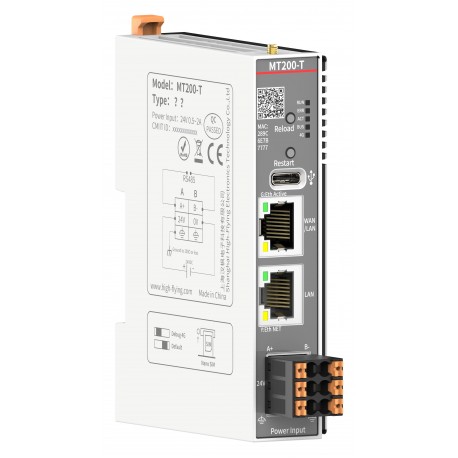

Ø MT200-T is a comprehensive edge gateway with high performance and scalability. The product integrates the functions of data edge acquisition, calculation, active reporting and data reading and writing, linkage control, IO acquisition and control, etc. The acquisition protocols include standard Modbus protocol and a variety of common PLC protocols, as well as industry-specific protocols. Active report The packet report mode is adopted, and the Json report template is customized to quickly implement data format interconnection between servers. At the same time, the product also has routing, bridge and VPN and ladder diagram programming functions, graphic configuration design edge computing functions, to meet customers' own design needs. Products support TCP(S)/MQTT(S)/HTTP(S) and other protocols communication, support multiple connections; Support ModbusRTU/TCP and OPCUA protocol conversion and other functions, the product is to support Hanfeng Cloud platform, Aliyun Huawei Cloud and other common platforms for fast access.

Ø The product adopts Linux kernel, the main frequency is up to 580MHz; The network adopts 4G cellular plus WAN/LAN+LAN design, the uplink transmission is more reliable, and the LAN port can be connected to external devices such as cameras. The product adopts an extensible design in structure, which can be combined by expanding modules with different functions to better meet the needs of IO quantity and communication interface in different scenarios. Convenient, fast and cost saving. The product supports expanded IO, expanded serial port, and an astonishing 32 expansion devices. If the power supply is insufficient, the trunk power supply can be placed in the middle to ensure the stable operation of the product. The whole system can not only realize the needs of industrial field control and collection, but also realize linkage control according to various collection point data or state. It can be widely used in intelligent farming, intelligent factory and other industrial intelligent solutions.

Ø MT200-T-CE The gateway can be used to exchange process data, automatically configure and generate local process images including digital, analog and special function modules. Analog modules and special function modules transmit data in the form of words or bytes, while digital modules transmit data in the form of bits.

Ø MIPS architecture CPU, 580MHz main frequency, ultra-high performance, fast operation;

Ø Dual network, LTE 4G and Ethernet parallel, 4G support Cat4 network, to ensure high-speed network transmission;

Ø Dual network port (1*WAN\LAN+1*LAN), support built-in routing, VPN and firewall functions;

Ø Single serial port, serial port support RS485;

Ø Strong edge gateway function, support edge collection, edge computing, packet reporting, support 1000 real point collection;

Ø Rich acquisition protocols, support standard Modbus TCP/RTU protocol acquisition and Siemens a variety of mainstream PLC protocol acquisition;

Ø Linkage control, support multi-point linkage, support linkage SMS alarm, linkage platform alarm, linkage point control, linkage DO and REL control;

Ø Protocol conversion, support the slave protocol to standard Mdobus RTU, Modbus TCP, OPC UA and Json protocol, quickly achieve cloud collection;

Ø Network IO function, support flexible IO module expansion;

Ø Ladder diagram programming, through the Hanfeng IOT Master software can edit the ladder diagram of the control logic, the edge gateway custom logic and sequence control design and development;

Ø 3 link communication, each support TCP/HTTP/ MQTT protocol, while supporting SSL encryption;

Ø Fast access to Alibaba Cloud, Huawei Cloud;

Ø The gateway supports the cascading function of dual-network switch;

Ø Support 5 clients to access at the same time, support 01/02/03/04/05/06/15/16 and other function code communication;
